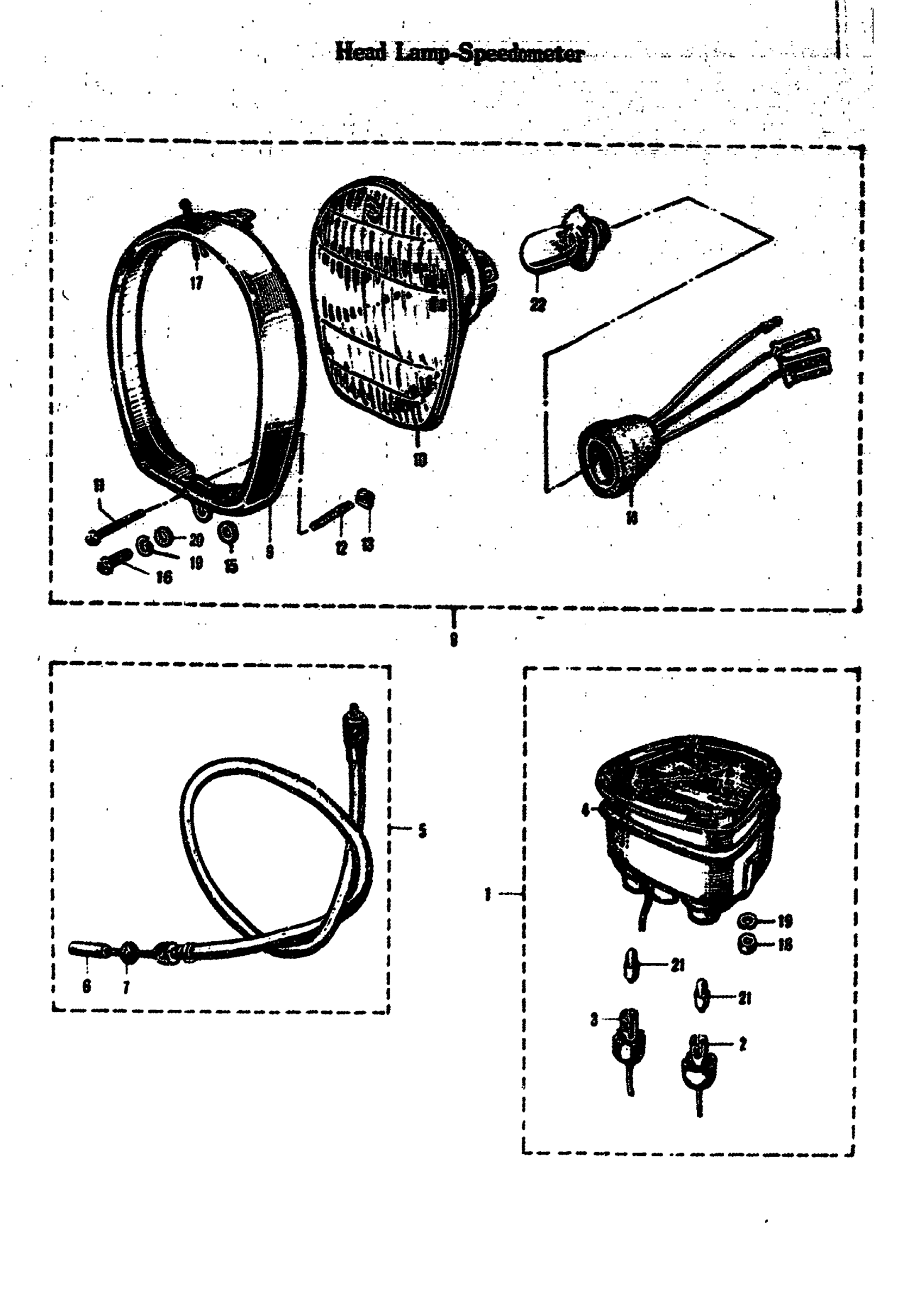

Suzuki 50M12 (1968) HEAD LAMP-SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASS'Y | O E.NO.M10-359117

34001-03847

Unavailable

2

SPEEDOMETER LAMP SOCKET | M12MARK2,M15D,M12

34173-01010

Unavailable

3

NEUTRAL INDICATOR LAMP SOCKET | M12MARK2,M15D,M12

34179-01010

Unavailable

4

SPEEDOMETER GASKET | M12MARK2,M15D,M12

34181-01010

Unavailable

5

SPEEDOMETER CABLE ASS'Y | O.M10-359317

34910-01001

Unavailable

6

SPEEDOMETER INNER CABLE | O.M10-359317

34911-01000

Unavailable

7

SPEEDOMETER CABLE OIL SEAL | M12MARK2,M15D,M12

34928-01030

$2.92

8

HEAD LAMP ASS'Y | E.NO.M19-356327

35100-02611

Unavailable

9

HEAD LAMP RIM | OME-PLATED UP TO E.NO. M10

35111-01610

Unavailable

10

HEAD LAMP LANS UNIT | TO E.NO.M10-359317

35121-01610

Unavailable

11

HEAD LAMP ADJUSTING SCREW

35151-01321

Unavailable

11

HEAD LAMP ADJUSTING SCREW | OME-PLATED UP TO E.NO.M10-

35151-01320

Unavailable

12

HEAD LAMP ADJUSTING SPRING | TO E.NO.M10-359317

35154-01320

Unavailable

13

HEAD LAMP ADJUSTING NUT

35155-01321

Unavailable

13

HEAD LAMP ADJUSTING NUT | TO E.NO. M10-359317

35155-01320

Unavailable

14

HEAD LAMP SOCKET | TO E.NO. M10-359317

35171-01612

Unavailable

15

HEAD LAMP RUBBER WASHER | TO E.NO.M10-359317

35189-01320

Unavailable

16

CROSS HEAD SCREW

02111-05167

Unavailable

16

CROSS HEAD SCREW | O.M10-359317

02111-05162

Unavailable

17

COTTER PIN | O.M10-359317

04111-30358

Unavailable

18

NUT This part replaces 08311-11058.

08310-00057

$1.84

18

HEXAGON NUT | O.M10-359317

08311-11051

Unavailable

19

LOCK WASHER | TO E.NO.M10-359317 This part replaces 08321-21058.

08321-0105A

$1.84

20

WASHER This part replaces 08322-21058.

08322-01057

$2.13

21

SPEEDOMETER LAMP BULB | M12MARK2 6V.1.5W M12

09471-06001

$2.18
