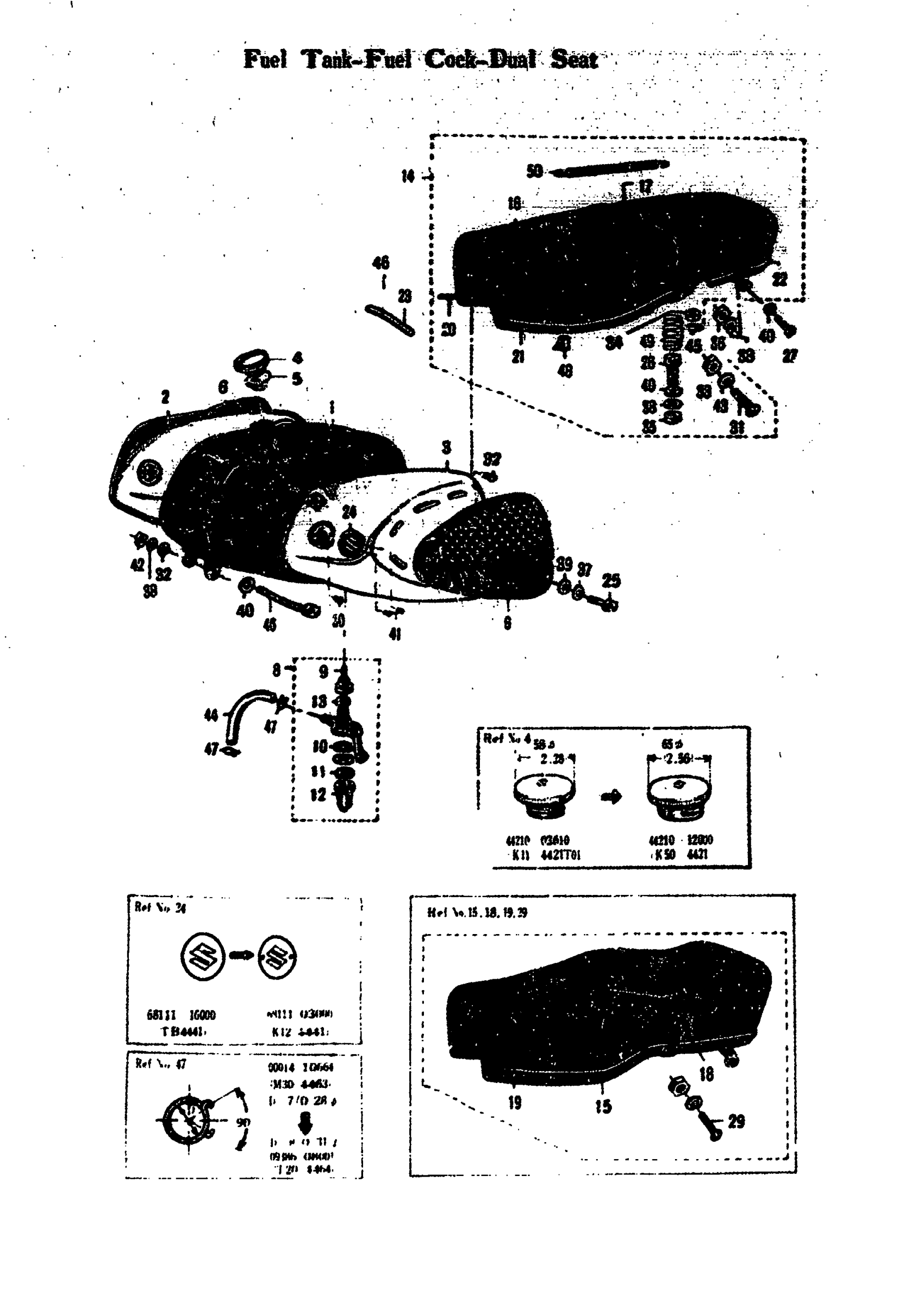

Suzuki 50M12 (1968) FUEL TANK-FUEL COCK-DUAL SEAT Diagram

#

Description
Price

1

FUEL TANK | ISO UP TO E.NO.M10-3593

44110-01000

Unavailable

2

FUEL TANK RIGHT SIDE COVER | ISO UP TO E.NO.M10-3593

44170-01000

Unavailable

3

FUEL TANK LEFT SIDE COVER | ISO UP TO E.NO.M10-3593

44180-01000

Unavailable

4

CAP FUEL TANK | M12MARK2 FROM E.NO. M10 This part replaces 44210-12000.

44200-23810

$49.39

4

FUEL TANK CAP | UP TO E.NO.M10-473007

44210-03610

Unavailable

5

FUEL TANK CAP GASKET | M12MARK2 FROM E.NO.M10-

44248-12000

Unavailable

6

RIGHT KNEE GRIP | UP TO E.NO.M10-359317

44251-50100

Unavailable

7

LEFT KNEE GRIP | UP TO E.NO.M10-359317

44252-50100

Unavailable

8

COCK ASSY FUEL | M12MARK2 M15D, M12 ISO This part replaces 44300-01600.

44300-05115

Unavailable

9

INLET PIPE STRAINER NET | M12MARK2,M15D,M12

44330-01021

Unavailable

10

STRAINER NET | M12MARK2,M15D,M12

44344-01021

Unavailable

11

FUEL COCK STRAINER CUP GASKET | M12MARK2,M15D,M12

44346-01020

Unavailable

12

FUEL COCK STRAINER CUP | M12MARK2,M15D,M12

44347-01600

Unavailable

13

FUEL COCK GASKET | M12MARK2,M15D,M12; OD=13ID=8.2(0.32) T=2.5(0.10)

44348-01020

Unavailable

14

DUAL SEAT ASS'Y | M12MARK2 M15D, M12; ISO

45100-01611

Unavailable

15

DUAL SEAT LEATHER | UP TO E.NO.M10-359317

45160-01600

Unavailable

16

DUAL SEAT LEATHER | M12MARK2 M15D, M12

45160-01601

Unavailable

17

DUAL SEAT PASSENGER STRAP | M12MARK2 M15D, M12

45180-01701

Unavailable

18

DUAL SEAT PASSENGER STRAP | UP TO E.NO.M10-359317

45180-02700

Unavailable

19

DUAL, SEAT RIM | UP TO E.NO.M10-359317

45190-01700

Unavailable

20

DUAL SEAT FRONT RIGHT RIM | M12MARK2 M15D, M12

45191-01700

Unavailable

21

DUAL SEAT FRONT LEFT RIM | M12MARK2 M15D, M12

45192-01700

Unavailable

22

DUAL SEAT REAR RIM | M12MARK2 M15D, M12

45193-01700

Unavailable

23

DUAL SEAT FRONT ANCHOR PIN | M12MARK2 M15D, M12

45233-01000

Unavailable

24

FUEL TANK EMBLEM | M12MARK2 M15D, M12

68111-03000

Unavailable

24

FUEL TANK EMBLEM | UP TO E.NO.M10-249942

68111-16000

Unavailable

25

HEXAGON BOLT

01111-06128

Unavailable

26

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

27

NO DESCRIPTION AVAILABLE This part replaces 01221-08167.

01204-08167

Unavailable

28

BOLT This part replaces 01221-08907.

01204-08907

Unavailable

29

SCREW This part replaces 02111-03168.

02112-0316B

$2.35

29

CROSS HEAD SCREW | O.M10-359317

02111-03161

Unavailable

30

CROSS HEAD SCREW

02111-06088

Unavailable

31

NO DESCRIPTION AVAILABLE This part replaces 02141-03208.

02142-03208

Unavailable

31

CROSS HEAD SCREW

02141-03201

Unavailable

32

CROSS HEAD SCREW

02144-05068

Unavailable

32

CROSS HEAD SCREW

02141-05061

Unavailable

33

NUT This part replaces 08311-11038.

08310-0003B

$2.83

33

HEXAGON NUT | TO E.NO.M10-359317

08311-11031

Unavailable

34

.NUT This part replaces 08311-11068.

08310-00067

$2.13

35

NUT This part replaces 08311-11088.

08310-00087

$2.13

36

NUT This part replaces 08312-11088.

08310-00087

$2.13

37

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

38

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

39

WASHER This part replaces 08322-21068.

08322-01067

$2.13

40

WASHER This part replaces 08322-21088.

08322-01087

$2.13

41

FUEL TANK EMBLEM FITTING SCRE | M12MARK2 M15D, M12; ISO

09125-03101

Unavailable

41

FUEL TANK EMBLEM FITTING SCRE | M12MARK2 M15D, M12

09125-03001

Unavailable

42

FUEL TANK FRONT MOUNTING NUT | M12MARK2 M15D, M12

09140-08001

Unavailable

43

DUAL SEAT RIM WASHER | M12MARK2 M15D, M12; 7PCS.O.M10-359317

09160-03001

Unavailable

44

FUEL LINE | M12MARK2 M15D, M12

09343-05001

Unavailable

45

PASSENGER STRAP FITTING CLIP | M12MARK2; FROM E.NO.M10-3

09385-06001

$3.10

46

CLIP | M12MARK2 M15D, M12 M12MARK2 M15D, M12 This part replaces 09385-10001.

09385-10005

$1.56

47

FUEL LINE CLIP | M12MARK2 M15D, M12

09385-08001

Unavailable

47

FUEL LINE CLIP | M12MARK2 M15D, M12; UP TO363483

00014-10664

Unavailable

48

DUAL SEAT LEATHER FITTING CLI | M12MARK2 M15D, M12

09410-00004

Unavailable

49

DUAL SEAT SPRING | M12MARK2 M15D, M12

09446-42001

Unavailable
