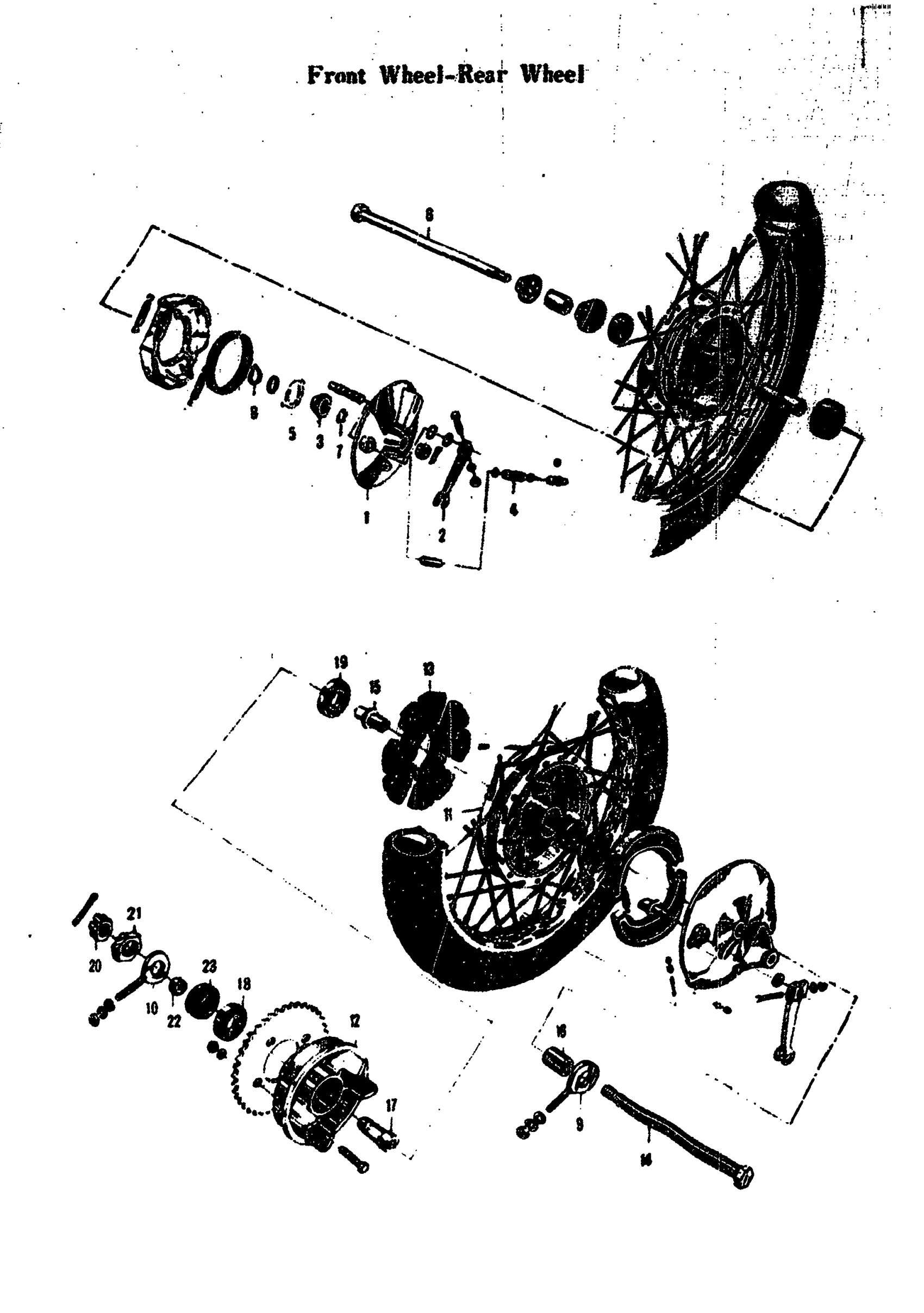

Suzuki 50M12 (1968) FRONT WHEEL - REAR WHEEL Diagram

#

Description
Price

0

FRONT HUB ASS'Y | ISO INCLUDES REF NOS 1~7& PAGE AND REF NOS 2,4,5,9,26~31,33,36,38,39,42~45,&E30,31 OF MODEL M15

54100-03601

Unavailable

1

FRONT HUB PANEL | M12; ISO

54210-03603

Unavailable

2

LEVER, BRAKE CAM | M12 This part replaces 54451-03601.

54451-03002

$16.87

3

NO DESCRIPTION AVAILABLE | M12; N.T.=25 This part replaces 54611-03000.

54611-03002

Unavailable

4

NO DESCRIPTION AVAILABLE | M12; N.T.=10 This part replaces 54621-03000.

54621-03001

Unavailable

5

SPEEDOMETER GEAR DRIVE

54661-03000

Unavailable

6

FRONT ASIR

54710-03600

Unavailable

7

SPEEDOMETER PINION THRUST WAS | OD=22(0.86) ID=14(0.63) T

09160-16005

Unavailable

8

CIRCLIP This part replaces 08331-11159.

08331-3115A

$2.25

8

REAR HUB ASS'Y | INCLUDES REF, NO. 11-22&2 PAGE AND REF. NOS. I. 2.9.22.24.25.39.31.37&34. ON3 OF MODEL M15

64000-01857

Unavailable

9

ADJUSTER, CHAIN This part replaces 61411-01001.

61411-01002

$7.37

10

LEFT CHAIN ADJUSTER

61421-01001

Unavailable

11

REAR HUB DRUM

64110-01600

Unavailable

12

REAR SPROCKET MOUNTING DRUM

64611-01000

Unavailable

13

ABSORBER,RR WHL This part replaces 64651-01000.

64651-010B1

$21.50

14

REAR AXLE

64710-01601

Unavailable

15

REAR HUB BEARING SPACER

64730-01000

Unavailable

16

REAR AXIE SPACER

64741-01601

Unavailable

17

REAR SPROCKET MOUNTING DRUM S

64761-01000

Unavailable

18

BEARING, DRIVE SHAFT RH This part replaces 08113-62030.

09262-17023

$16.75

19

BEARING | ARING This part replaces 08143-62010.

08143-6201B

$10.80

20

NUT This part replaces 08314-11107.

08314-3110A

$1.99

21

NUT This part replaces 09140-16006.

09140-16005

$3.75

22

SPROCKET MOUNTING DRUM SHAFT

09180-17004

$6.63
