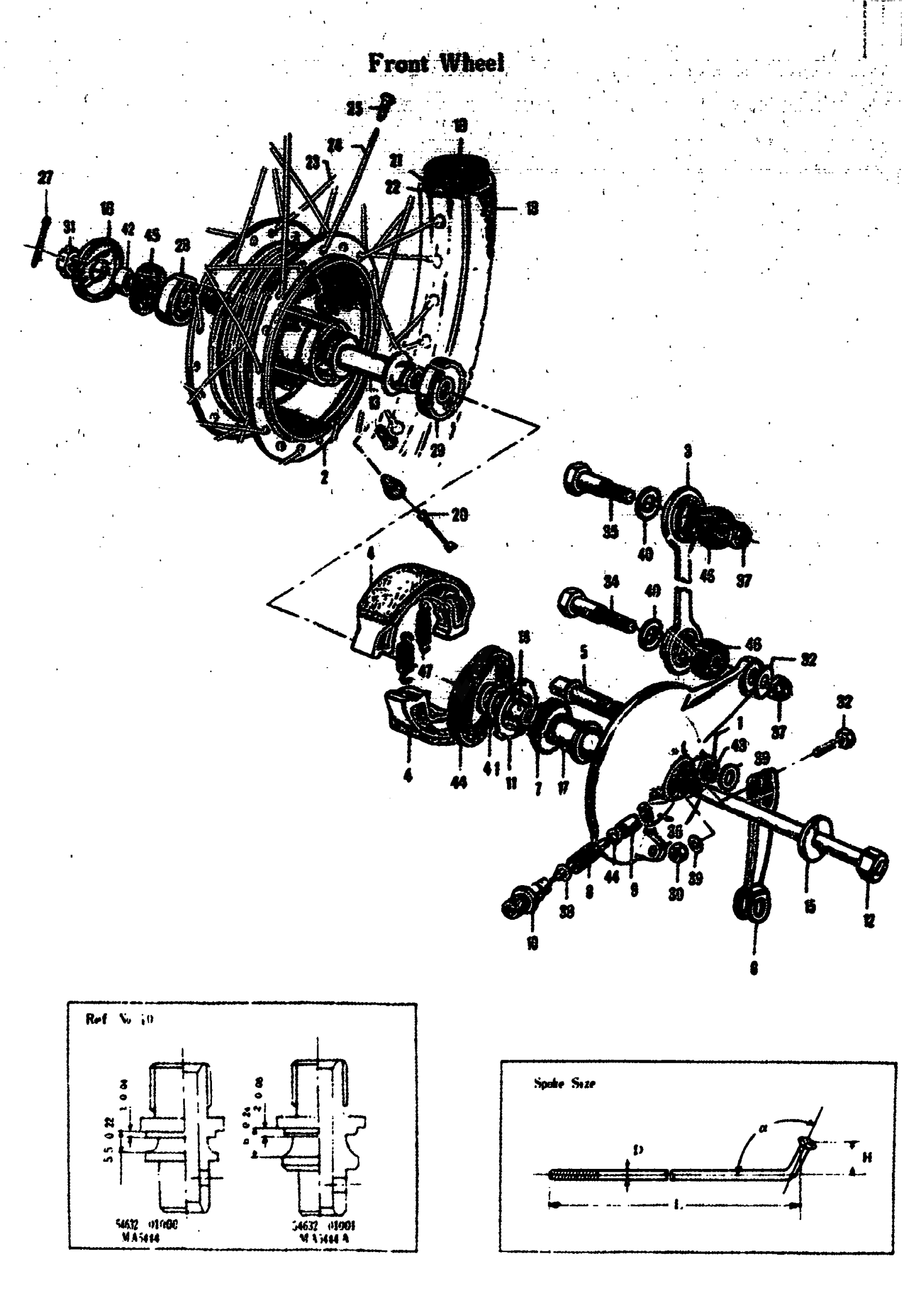

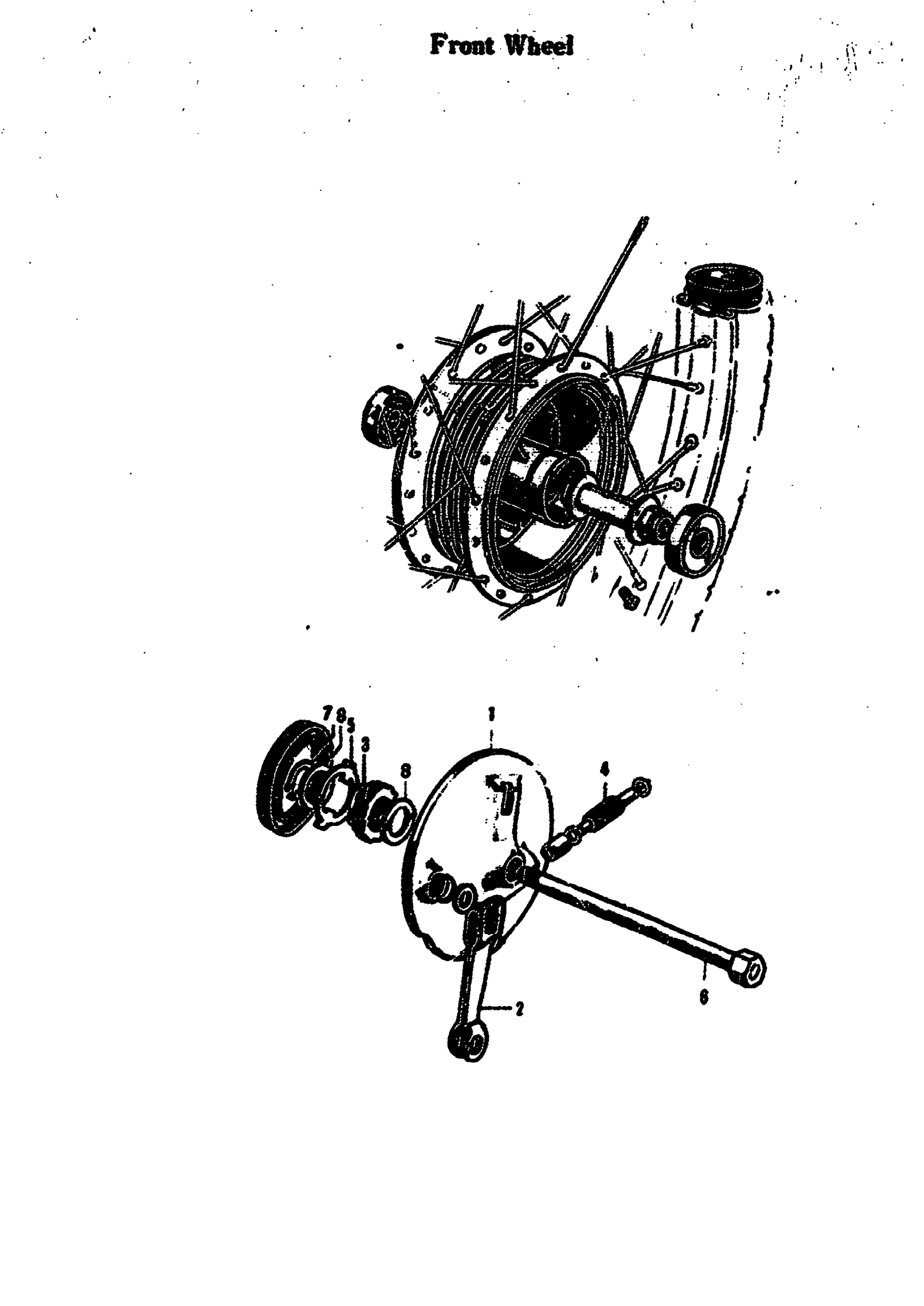

Suzuki 50M12 (1968) FRONT WHEEL Diagram

#

Description
Price

0

FRONT HUB ASS'Y | , INCLUDES REF. NOS.1, 2,47, 26~32,33,36 38,39,41-45

54002-01809

Unavailable

1

FRONT HUB PANEL COMP. | , INCLUDES REF.NOS.9 & 17

54005-01811

Unavailable

2

FRONT HUB DRUM | M12MARK2,M15D,M12

54110-01604

Unavailable

3

FRONT TORQUE LINK | TO E.NO.M10-359317

54310-02602

Unavailable

4

BRAKE SHOE | M12MARK2,M15D,M12

54410-01002

Unavailable

5

BRAKE CAM SHAFT | M12MARK2,M15D,M12

54441-01000

Unavailable

6

FRONT BRAKE CAM LEVER | OME-PLATED UP TO E.NO.M10-

54451-02602

Unavailable

7

SPEEDOMETER PINION | TO E.NO.M10-359317

54611-02000

Unavailable

8

SPEEDOMETER GEAR | TO E.NO.M10-359317

54621-02000

Unavailable

9

SPEEDOMETER GEAR INNER BUSHIN | M12MARK2,M15D,M12

54631-01000

Unavailable

10

SPEEDOMETER GEAR OUTER BUSHIN | M12MARK2,M15D,M12

54632-01001

$12.80

10

SPEEDOMETER GEAR OUTER BUSHIN | TO E.NO.M10-159604

54632-01000

Unavailable

11

SPEEDOMETER PINION DRIVE | TO E.NO.M10-359317

54661-02000

Unavailable

12

FRONT AXLE | TO E.NO.M10-359317

54712-02600

Unavailable

13

FRONT HUB BEARING SPACER | M12MARK2,M15D,M12

54730-01000

Unavailable

13

FRONT HUB BEARING SPACER | O.M10-117765

54730-50001

Unavailable

14

FRONT HUB PANEL SPACER | TO E.NO.M10-359317

54761-02002

Unavailable

15

FRONT HUB PANEL SPACER DUST S | TO E.NO.M10-359317TO E.NO.M10-359317

54851-02031

Unavailable

16

FRONT HUB DRUM DUST SEAL | M12MARK2,M15D,M12

54892-01000

Unavailable

17

FRONT HUB PANEL BUSHING | TO E.NO.M10-359317

54931-02000

Unavailable

18

FRONT TIRE | M12MARK2,M15D,M12; SIZE=2.PH

55100-01010

Unavailable

19

INNER TUBE | M12MARK2,M15D,M12; SIZE=2.NCLUDES REF.NO.29

55200-01600

Unavailable

20

INNER TUBE VALVE | M12MARK2,M15D,M12

55250-01000

Unavailable

21

PROTECTOR, INNER TUBE | M12MARK2,M15D,M12; SIZE=2. This part replaces 55261-01010.

55261-02B40

$6.88

22

RIM WHEEL | M12MARK2,M15D,M12; SIZE=1. This part replaces 55311-01020.

55311-01021

Unavailable

22

SPOKE SET FR | M12MARK2,M15D,M12; INCLUDE. 23,24&25 This part replaces 55301-01812.

55320-01012

$36.58

23

FRONT INNER SPOKE | M12MARK2,M15D,M12; D.=2(6.160.5(6.32) A.=104.H=5.8(0

55321-01021

Unavailable

24

FRONT OUTER SPOKE | M12MARK2,M15D,M12; D=2.6(00(6.30) A.=87.30,M=71(0.25

55322-01021

Unavailable
