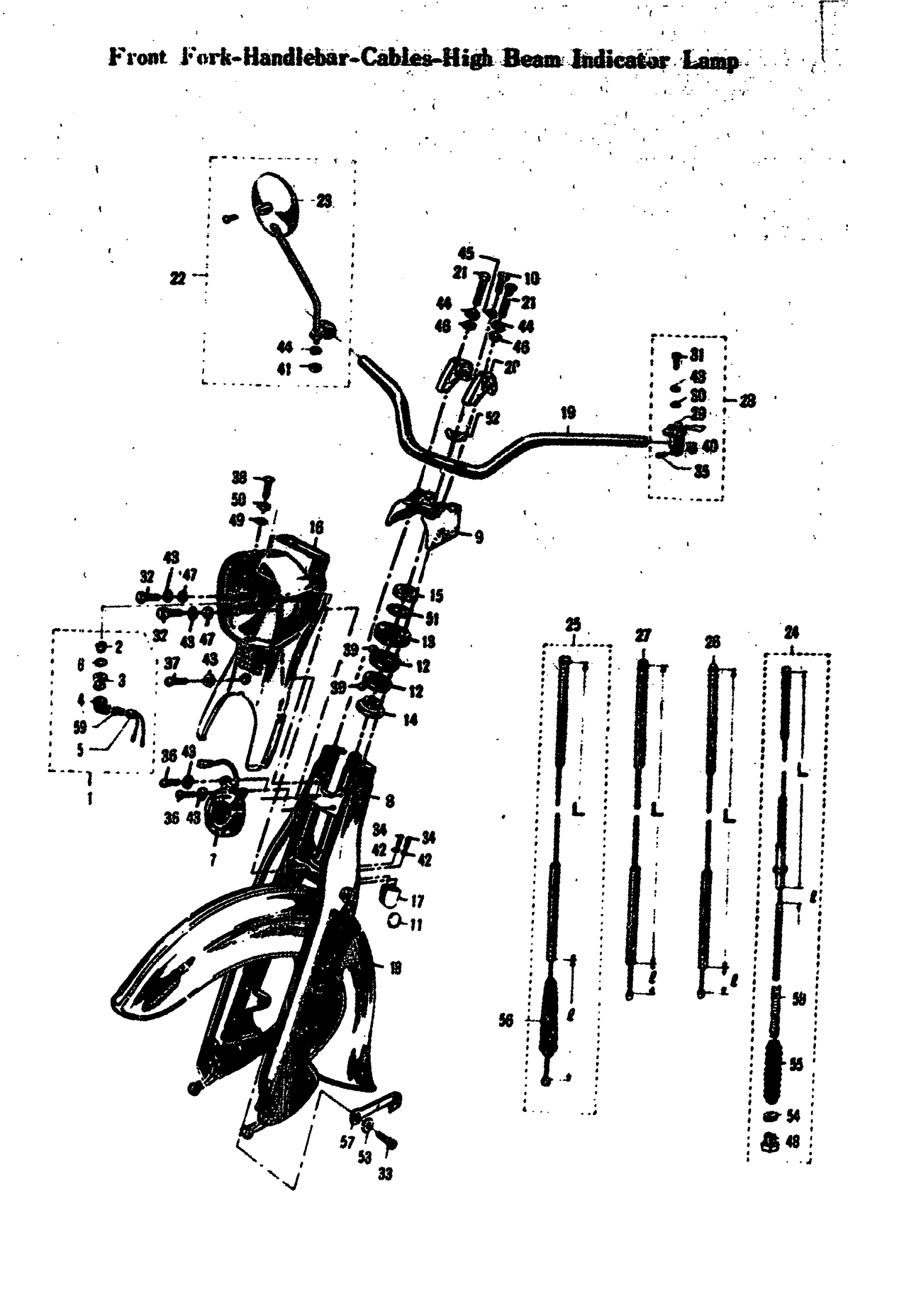

Suzuki 50M12 (1968) FRONT FORK-HANDLEBAR-CABLES-HIGH BEAM INDICATOR LAMP Diagram

#

Description
Price

1

HIGH BEAM INDICATOR LAMP ASS' | M12MARK2 M12

36330-02810

Unavailable

2

HIGH BEAM INDICATOR LAMP BULB | M12MARK2 M15D, M12M12MARK2 M15D, M12

36331-01610

Unavailable

3

HIGH BEAM INDICATOR LAMP BULB | M12MARK2 M15D, M12M12MARK2 M15D, M12

36332-01610

Unavailable

4

HIGH BEAM INDICATOR LAMP HOLD | M12MARK2 M15D, M12M12MARK2 M15D, M12

36334-01610

Unavailable

5

HIGH BEAM INDICATOR LAMP SOCK | M12MARK2 M15D, M12M12MARK2 M15D, M12

36335-01610

Unavailable

6

HIGH BEAM INDICATOR LENS GASK | M12MARK2 M15D, M12M12MARK2 M15D, M12

36337-01610

Unavailable

7

HORN | M12MARK2 M12; ISO

38500-01030

Unavailable

8

FRONT FORK | LUDES REF.NO.14 UP TO.E.NO.7

51000-01838

Unavailable

9

STEERING STEM HEAD | TO E.NO.M10-359317

51310-01971

Unavailable

10

STEERING STEM HEAD FITTING BO | OME-PLATED UP TO E.NO.M10-OME-PLATED UP TO E.NO.M10-

51351-01000

Unavailable

11

FRONT FORK JOINT CAP | TO E.NO.M10-359317

51423-02001

Unavailable

12

STEERING INNER RACE | M12MARK2 M15D,M12

51611-01000

Unavailable

13

STEERING UPPER OUTER RACE | M12MARK2 M15D,M12

51621-01601

Unavailable

14

STEERING LOWER OUTER RACE | M15D; UP TO E.NO.M10-35931

51622-01000

Unavailable

15

STEERING STEM LOCK NUT | M12MARK2 M15D,M12

51632-01000

Unavailable

16

HEAD LAMP HOUSING | .UP TO E.NO.M10-359317 (BL

51810-02601-019

Unavailable

16

HEAD LAMP HOUSING | ,UP TO E.NO.M10-359317 (LI

51810-02601-002

Unavailable

16

HEAD LAMP HOUSING | .UP TO E.NO.M10-359317 (PEED)

51810-02601-061

Unavailable

16

HEAD LAMP HOUSING | .UP TO E.NO.M10-359317 (PU

51810-02601-064

Unavailable

16

HEAD LAMP HOUSING | .UP TO E.NO.M10-359317 (LINENT BLUE)

51810-02601-075

Unavailable

17

HEAD LOCK ASS'Y | M12MARK2 M15D, M12; ISO

51900-03012

Unavailable

18

FRONT FENDER | TO E.NO.M10-359317 (BLACK)

53111-02070-019

Unavailable

18

FRONT FENDER | TO E.NO.M10-359317 (LIGHT

53111-02070-002

Unavailable

18

FRONT FENDER | TO E.NO.M10-359317 (PERMAN

53111-02070-061

Unavailable

18

FRONT FENDER | TO E.NO.M10-359317 (PURE W

53111-02070-064

Unavailable

18

FRONT FENDER | TO E.NO.M10-359317 (LIGHT BLUE)

53111-02070-075

Unavailable

19

HANDLEBAR | : - WESTERS UP TO E.NO. M1

58111-03962

Unavailable

20

HANDLEBAR CLAMP | TO E.NO. M10-359317

56211-01971

Unavailable

21

HANDLEBAR CLAMP BOLT | OME-PLATED UP TO E.NO.M10-

56231-01002

Unavailable

22

REAR VIEW MIRROR ASS'Y | M12MARK2 M15D, M12; ISO

56500-03610

Unavailable

23

REAR VIEW MIRROR | M12MARK2 M15D, M12; ISO

56510-03611

Unavailable

24

BROKE CABLE ASS'Y | L=1070(42.1) l=40(1.57) U.M10-359317

58100-01741

Unavailable

25

CLUTCH CABLE ASS'Y | 30(32.68).T.=84(3.31) UP T8-359317

58200-01002

Unavailable

26

THROTTLE CABLE | 50(29.53) l=63(2.48) UP TO359337

58310-01921

Unavailable

27

STARTER CABLE | 50(29.50) l=63(2.48)

58410-01791

Unavailable

27

NO DESCRIPTION AVAILABLE | 70(30.31) l=63(2.48) This part replaces 58410-01002.

58410-01X00

Unavailable

28

STARTER LEVER ASS'Y | M12MARK2 M15D, M12

58700-03010

Unavailable

29

STARTER LEVER | M12MARK2 M15D, M12

58721-03010

Unavailable

30

.WASHER (6.5X16X1) | M12MARK2 M15D, M12; O.D.=1.D.=6.5(0.26) T.=1.0(0.04) This part replaces 58723-03010.

09160-06129

$2.30

31

HEXAGON BOLT

01111-06127

Unavailable

32

BOLT | O.M10-359317 This part replaces 01111-06208.

01500-06207

$2.28

33

PLUG, DRAIN | O.M10-359317 This part replaces 01121-08168.

01500-0816B

$2.50

34

CROSS HEAD SCREW

02111-05128

Unavailable

34

CROSS HEAD SCREW

02111-05121

Unavailable

35

SCREW This part replaces 02111-05168.

02112-05167

$1.97

35

CROSS HEAD SCREW

02111-05161

Unavailable

36

SCREW This part replaces 02111-06128.

02112-06127

$1.84

37

CROSS HEAD SCREW | O.M10-359317

02111-06167

Unavailable

38

.SCREW This part replaces 02131-04127.

02122-0412A

$1.93

38

CROSS HEAD SCREW | O.M10-359317

02131-04122

Unavailable

39

STEEL BALL

06111-06004

Unavailable

40

NUT This part replaces 08311-11058.

08310-00057

$1.84

40

HEXAGON NUT

08311-11051

Unavailable

41

NUT This part replaces 08312-11088.

08310-00087

$2.13

42

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

43

LOCK WASHER | TO E.NO.M10-359317 This part replaces 08321-21068.

08321-01067

$2.13

44

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

45

LOCK WASHER | O.M10-359317 This part replaces 08321-21108.

08321-01107

$1.84

46

WASHER | O.M10-359317 This part replaces 08322-11088.

08322-01087

$2.13

47

WASHER | O.M10-359317 This part replaces 08322-21068.

08322-01067

$2.13

48

BRAKE CAM ADJUSTING NUT | M12MARK2; ISO

09150-05101

$3.04

48

BRAKE CAM ADJUSTING NUT | M12MARK2 M15D, M12

09150-05001

Unavailable

49

HEAD LAMP RIM FITTING SCREW G | M12MARK2 M15D, M12; O.D.=1.M12MARK2 M15D, M12; O.D.=1.,I.D.=4.2 (0.17) T.=0.3(0

09161-04005

Unavailable

50

HEAD LAMP RIM FITTING WASHER | M12MARK2 M15D,M12; CLEASE-P.=11.5(0.45),3.D=4.5(0.38)

09165-04004

$1.93

51

STEERING STEM LOCK WASHER | M12MARK2 M15D, M12

09168-26001

$5.00

52

STEERING STEM HEAD WASHER | TO E.NO.M10-359317

09167-10002

Unavailable

53

FRONT FENDER WASHER | .=28(1.02).I.D.=8.5(0.34)05)UP TO E.NO.M10-359317

09169-08002

Unavailable

54

BRAKE CAM LEVER PIN | M12MARK2 M15D, M12

09209-10001

$1.49

55

BRAKE CABLE BOOT | M12MARK2 M15D, M12

09287-07001

$2.00

56

CLUTCH CABLE BOOT | M12MARK2 M15D, M12

09287-10002

Unavailable

57

FRONT FENDER CABLE CLIP | TO E.NO.M10-359317

09403-00020

Unavailable

58

BRAKE CABLE SPRING | M12MARK2 M15D, M12; O.D.=6..D.=5.1(0.20) L.=60(2.36)

09440-06083

Unavailable

59

HIGH BEAM INDICATOR LAMP BULB | M12MARK2 M15D, M12; 6V 1.5

09471-06001

$2.18
