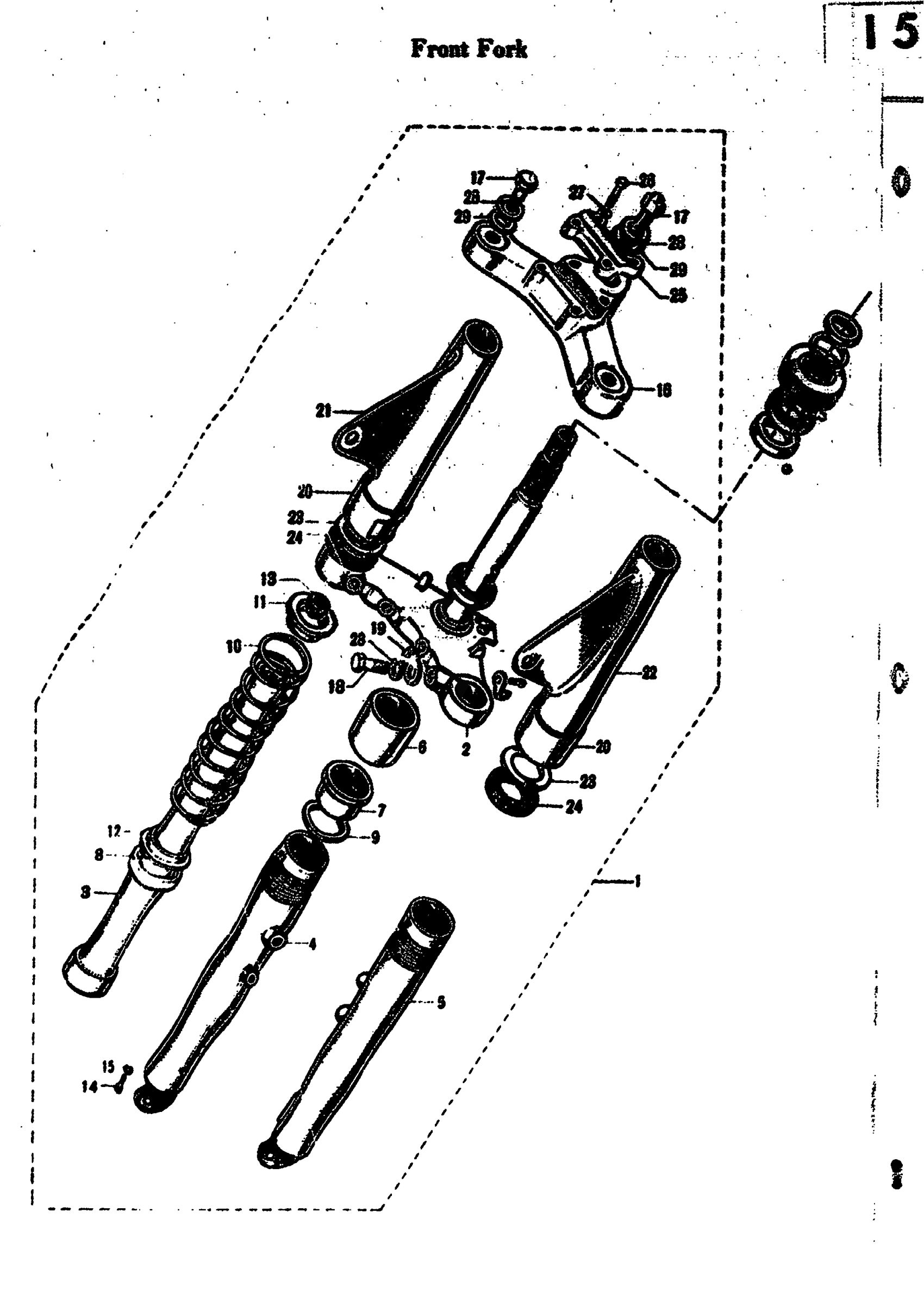

Suzuki 50M12 (1968) FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASS'Y | NCLUDE 51632-01000 51621611-01000 06166-2600104

51100-01982

Unavailable

2

STEERING STEM | M12MARK2,M12 INCLUDES 50

51001-03834

Unavailable

3

FRONT INNER TUBE | M12MARK2

51110-03110

Unavailable

4

FORK RIGHT OUTER TUBE

51130-01210

Unavailable

5

FORK LEFT OUTER TUBE

51140-01210

Unavailable

6

FORK INNER TUBE GUIDE HOUSING

51151-03011

Unavailable

7

FORK INNER TUBE GUIDE | M12MARK2

51152-03011

Unavailable

8

NO DESCRIPTION AVAILABLE | M12MARK2 This part replaces 51153-03011.

51153-23010

Unavailable

9

FORK INNER TUBE GUIDE GASKET | M12MARK2

51154-03011

Unavailable

10

FORK SPRING

51171-01980

Unavailable

11

FORK SPRING GUIDE

51172-01970

Unavailable

12

FORK DUST SEAL | M12MARK2 H=40(1.57)

51173-01211

Unavailable

12

FORK DUST SEAL

51173-01210

Unavailable

13

FORK INNER TUBE SHOCK DAMPER | M12MARK2,

51181-03010

Unavailable

14

FORK DRAIN PLUG | M12MARK2; ISO

51182-03621

Unavailable

14

FORK DRAIN PLUG | M12MARK2

51182-03620

Unavailable

15

FORK DRAIN PLUG GASKET | M12MARK2

51183-03010

$2.07

16

STEERING STEM HEAD

51311-03010

Unavailable

17

FORK FITTING BOLT

51351-50602

Unavailable

18

BOLT | M12MARK2 This part replaces 51451-03010.

01500-1030A

$3.16

19

SPEEDOMETER CABLE CLIP | M12MARK2

51452-08010

Unavailable

20

HEAD LAMP BRACKET CHROME BAND

51511-01910

Unavailable

21

HEAD LAMP RIGHT BRACKET

51530-01210

Unavailable

22

HEAD LAMP LEFT BRACKET

51540-01210

Unavailable

23

HEAD LAMP BRACKET SEAT

51551-01210

Unavailable

24

HEAD LAMP BRACKET SHOCK DAMPE

51553-01210

Unavailable

25

HANDLEBAR CLAMP | M12MARK2

56211-03010

Unavailable

26

BOLT 6X25 This part replaces 01211-06257.

01204-06257

$2.07

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
