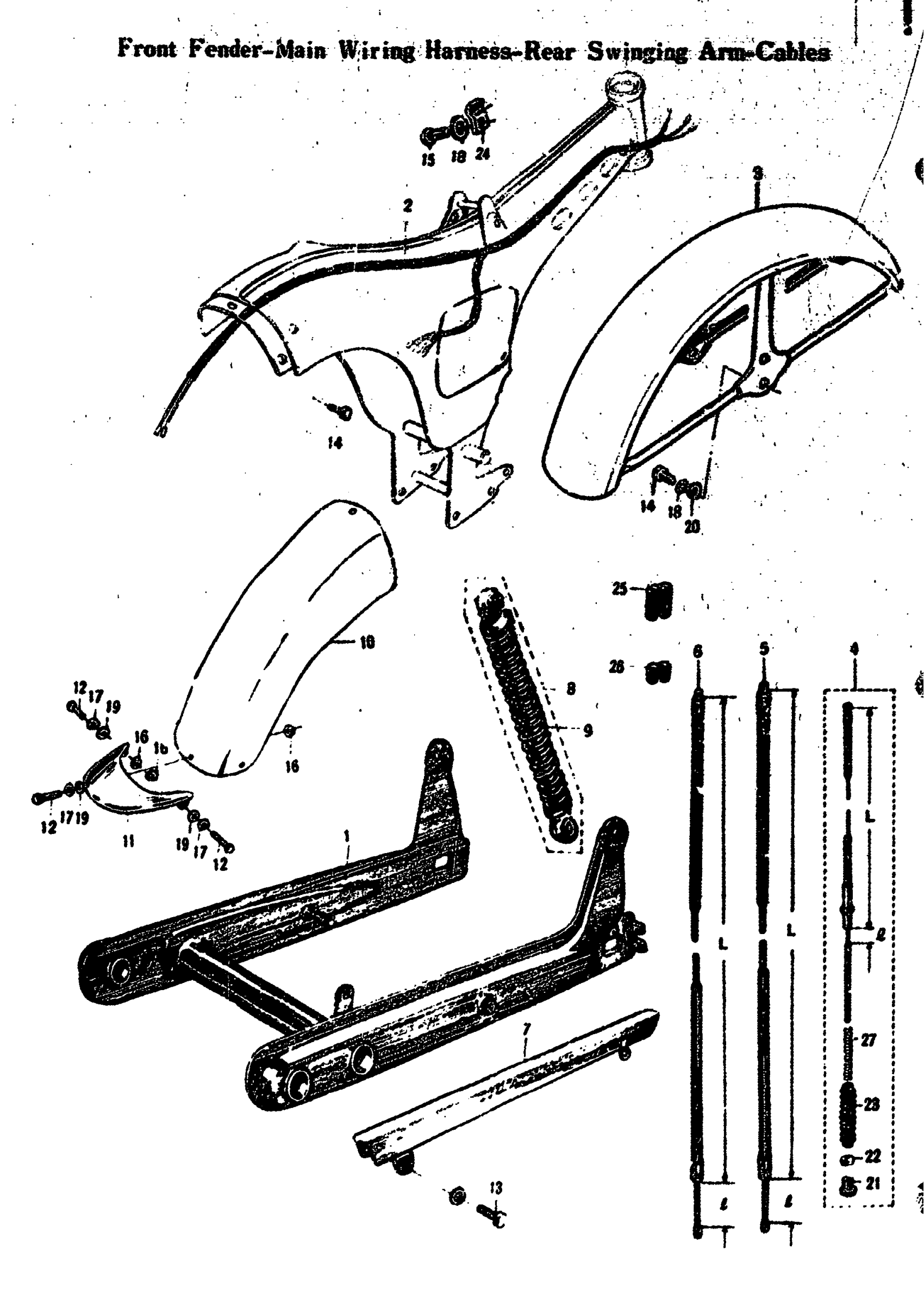

Suzuki 50M12 (1968) FRONT FENDER-MAIN WIRING HARNESS-REAR FENDER Diagram

#

Description
Price

1

REAR SWINGING ARM ASS'Y | 2 PCS. OF 99319-10003 AFTE

00022-40611

Unavailable

1

| 10-203851

00022-4011

Unavailable

2

MAIN WIRING HARNESS

36610-03610

Unavailable

3

FRONT FENDER | ATED

53110-03660

Unavailable

4

BRAKE CABLE ASS'Y | EMI WESTERN HANDLEBAR L.=9=40(1.57)

58100-03002

Unavailable

5

THROTTLE CABLE | WESTERN HENDLEBAR L.=780(36(2.20)

58310-01960

Unavailable

6

STARTER CABLE | 71) l=63(2.48)

58410-01200

Unavailable

7

CHAIN CASE (PEARL METALLIE) | O.M18-203251

61310-01600-126

Unavailable

8

REAR SHOCK ABSORBER ASS'Y

62100-01612

Unavailable

9

REAR SHOCK ABSORBER SPRING | OD=35.5(1.40) ID.=24.5 (0.1.5(86.61)

62211-01611

Unavailable

10

REAR FENDER

63110-03630

Unavailable

11

REAR FENDER EXTENSION

63311-01200

Unavailable

12

BOLT This part replaces 01111-05088.

01112-05088

Unavailable

12

HEXAGON BOLT

01111-05081

Unavailable

13

HEXAGON BOLT

01111-06127

Unavailable

14

BOLT This part replaces 01211-06127.

01204-06127

$2.07

15

CROSS HEAD SCREW

02111-06088

Unavailable

16

NUT This part replaces 08311-11058.

08310-00057

$1.84

16

HEXAGON NUT

08311-11051

Unavailable

17

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

18

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER This part replaces 08322-21058.

08322-01057

$2.13

20

WASHER This part replaces 08322-21068.

08322-01067

$2.13

21

BRAKE CABLE ADJUSTING NUT

09150-05101

$3.04

21

BRAKE CABLE ADJUSTING NUT | M15.M15D

09150-05001

Unavailable

22

BRAKE CAM LEVER PIN

09209-10001

$1.49

23

BRAKE CABLE BOOT | M15.M15D

09287-07001

$2.00

24

MAIN WIRING HARNESS CLIP

09403-00021

Unavailable

25

CABLE HOLDING TUBE

09408-00001

Unavailable

26

SPEEDOMETER BRAKE CABLE CLIP

09408-00002

$2.30

27

BRAKE CABLE SPRING | M15.M15D; O.D.=6.9(0.27) I.

09440-06003

$2.44
