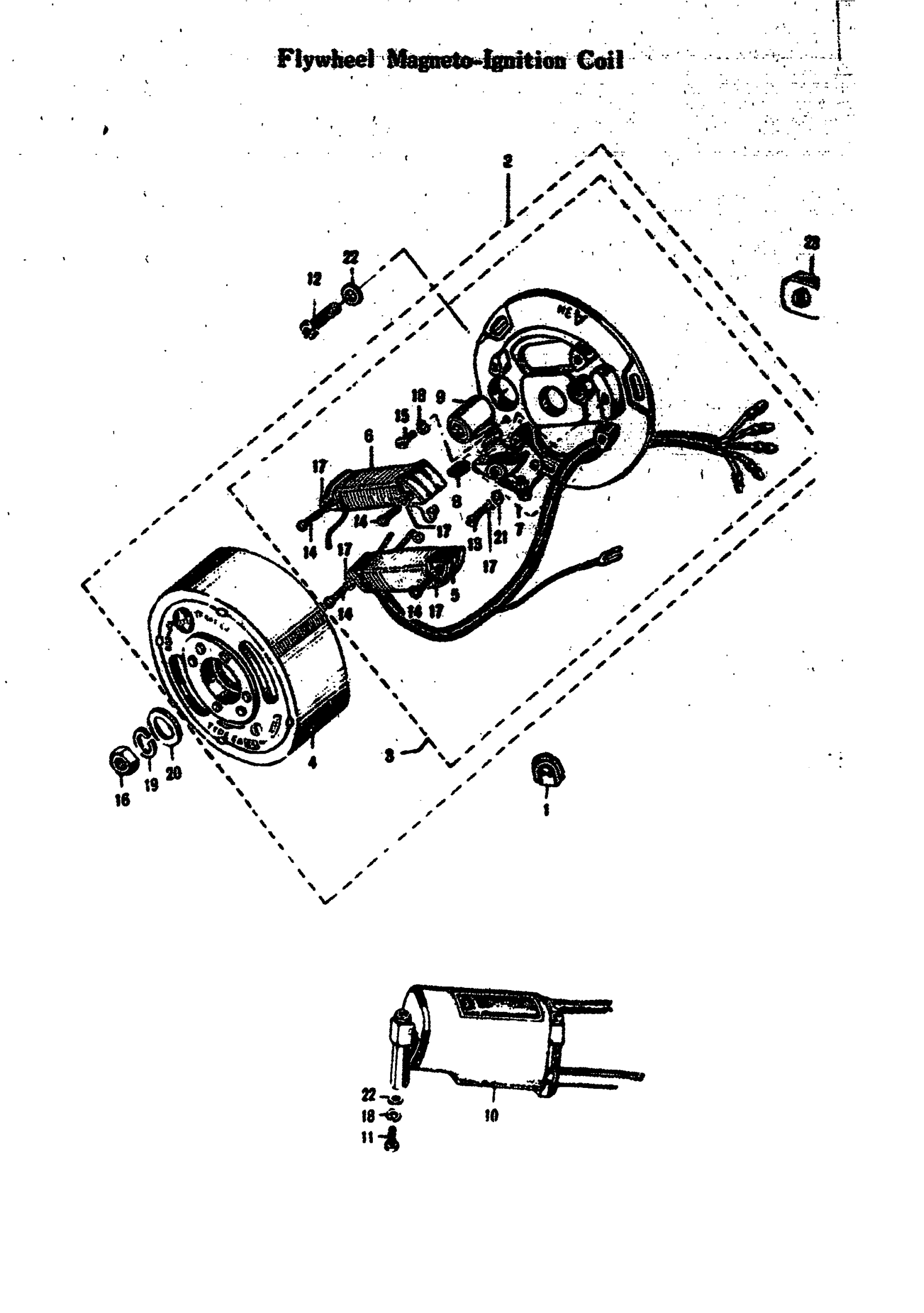

Suzuki 50M12 (1968) FLYWHEEL MAGNETO-IGNITION COIL Diagram

#

Description
Price

1

NEUTRAL INDICATOR SWITCH WIRE | UP TO E.NO. M10-138136

00011-03894

Unavailable

2

FLYWHEEL MAGNETO ASS'Y | M12MARK2,M12 ISO

32100-03022

Unavailable

3

STATOR ASS'Y | M12MARK2,M12 ISO

32101-03021

Unavailable

4

FLYWHEEL ROTOR | M12MARK2,M12

32102-03020

Unavailable

5

LAMP COIL | M12MARK2,M12

32120-03021

Unavailable

6

PIRMARY COFF | M12MARK2,M12

32140-03020

Unavailable

7

CONTACT POINT ASS'Y | M12MARK2,M12 ISO

32240-03120

Unavailable

8

CONTACT BREAKER CAM OIL FELT | M12MARK2,M12

32338-03020

Unavailable

9

CONDENSER | M12MARK2,M12

32341-03020

Unavailable

10

IGNITION COIL ASS'Y | M12MARK2,M12 ISO, 6V

33410-06031

Unavailable

11

SCREW This part replaces 02111-05168.

02112-05167

$1.97

11

CROSS HEAD SCREW

02111-05161

Unavailable

12

SCREW This part replaces 02112-05168.

02112-05167

$1.97

12

STRONG CROSS HEAD SCREW

02112-05161

Unavailable

13

SLOTTED PAN HEAD SCREW

02311-04128

Unavailable

13

SLOTTED PAN HEAD SCREW

02311-04121

Unavailable

14

SLOTTED PAN HEAD SCREW

02311-04248

Unavailable

14

SLOTTED PAN HEAD SCREW

02311-04241

Unavailable

15

SLOTTED PAN HEAD SCREW

02311-05108

Unavailable

15

SLOTTED PAN HEAD SCREW

02311-05101

Unavailable

16

NUT This part replaces 08311-11108.

08310-00107

$2.19

17

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

18

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

WASHER This part replaces 08322-21048.

08322-01047

$1.86

22

WASHER This part replaces 08322-21058.

08322-01057

$2.13
