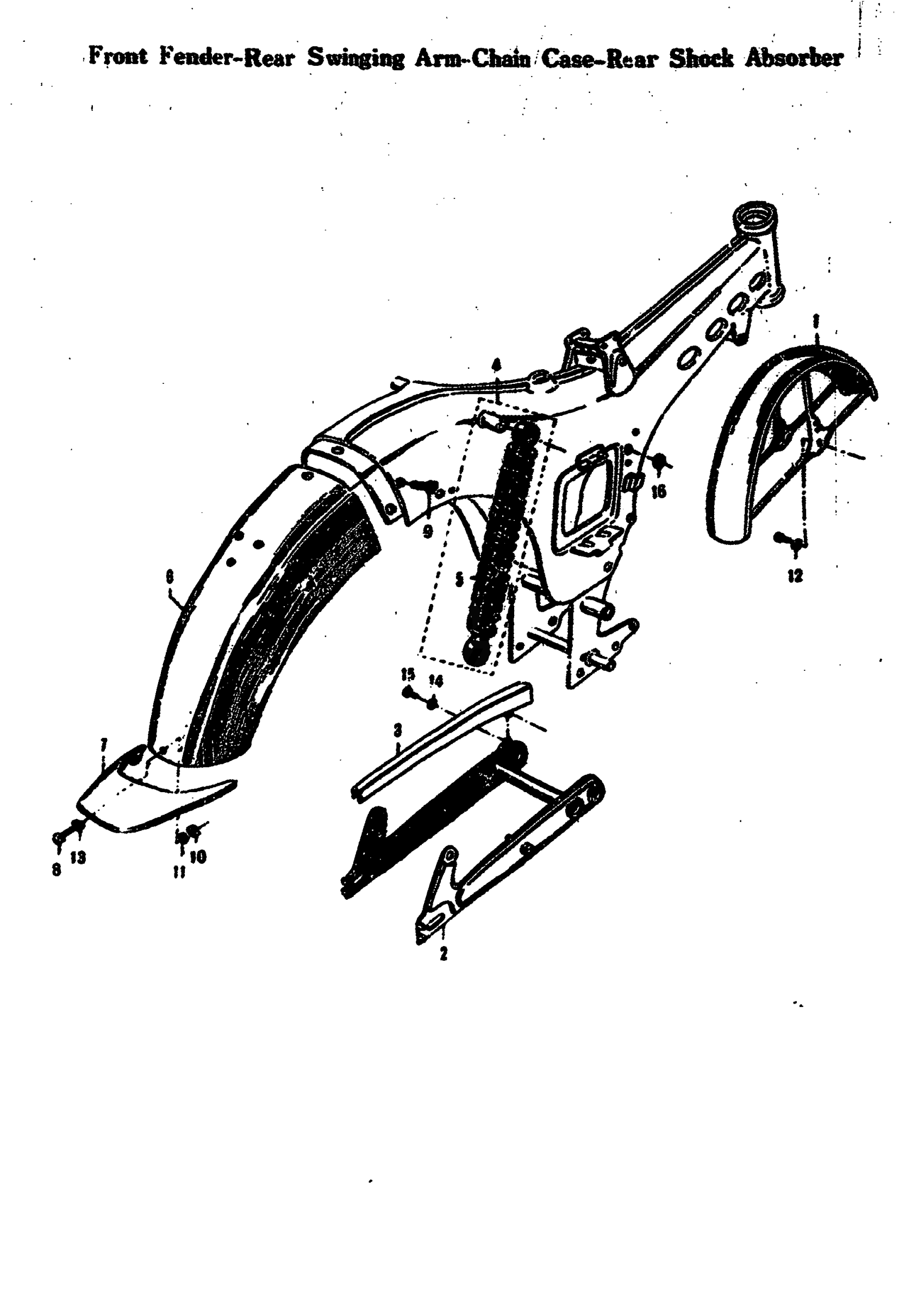

Suzuki 50M12 (1968) FENDER-REAR SWINGING ARM-CHAIN CASE-REAR SHOCK ABSORBER Diagram

FRONT FENDER | ATED

53110-03660

Unavailable

REAR SWINGING ARM COMP.

61101-03843

Unavailable

CHAIN CASE | ATED

61310-01601

Unavailable

REAR SHOCK ABSORBER ASS'Y | ME-PLATED

62100-01612

Unavailable

REAR SHOCK ABSORBER SPRING | =35.5(1.40) L.=221.5(06.67.5(0.96)

62211-01611

Unavailable

REAR FENDER

63110-03630

Unavailable

REAR FENDER EXTENSION

63311-01200

Unavailable

BOLT This part replaces 01111-05108.

01500-0510B

$1.80

HEXAGON BOLT

01111-05101

Unavailable

BOLT This part replaces 01221-08207.

01204-08207

$2.30

NUT This part replaces 08311-11058.

08310-00057

$1.84

HEXAGON NUT

08311-11051

Unavailable

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

WASHER This part replaces 08322-21058.

08322-01057

$2.13

WASHER This part replaces 08322-21068.

08322-01067

$2.13

CHAIN CASE FITTING BOLT | M15D

09100-06005

Unavailable
