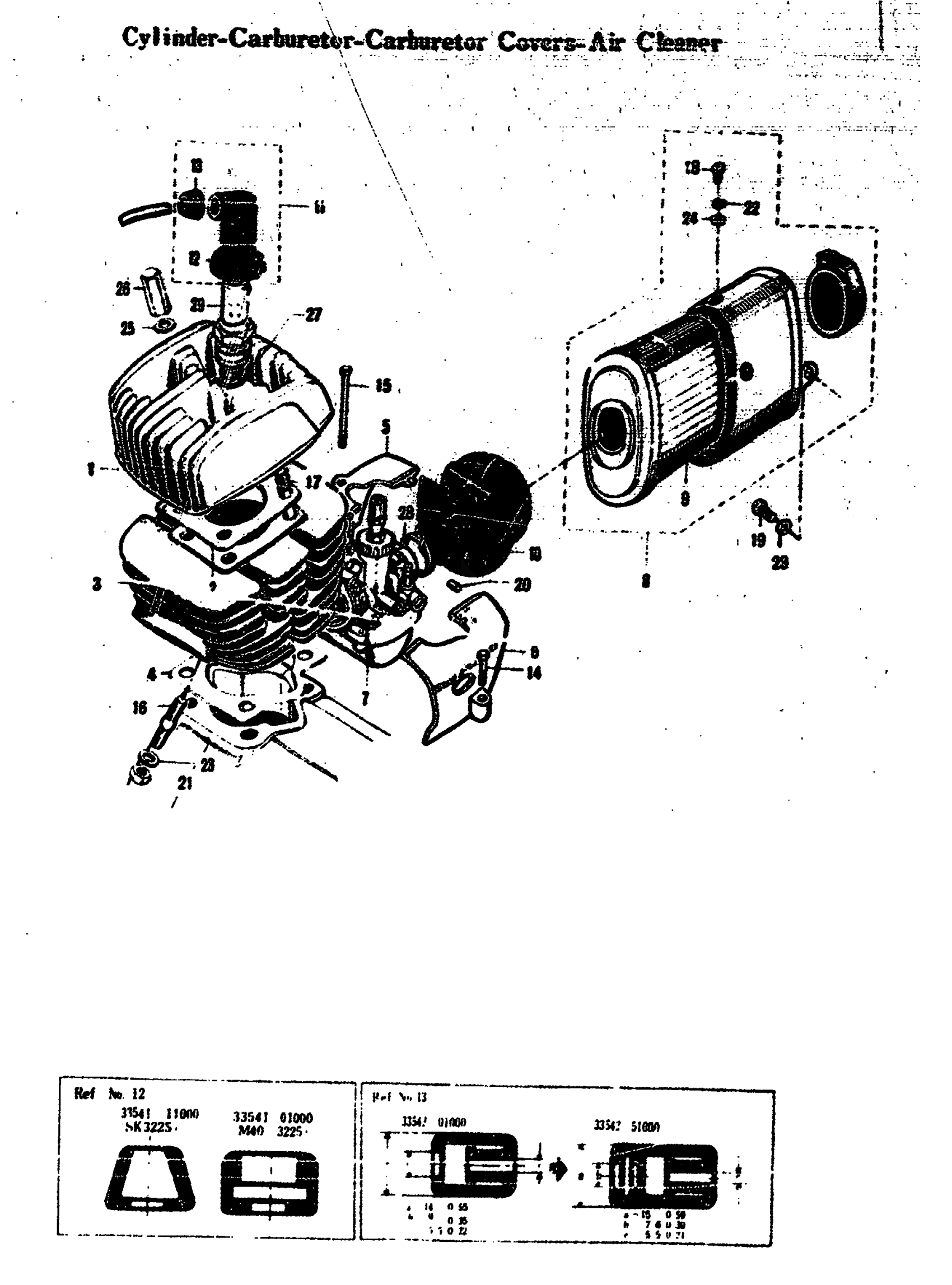

Suzuki 50M12 (1968) CYLINDER-CARBURETOR-CARBURETOR COVERS-AIR CLEANER Diagram

#

Description
Price

1

CYLINDER HEAD | M12MARK2,M15D

11111-01600

Unavailable

2

CYLINDER HEAD GASKET | M12MARK2,M15D

11141-01610

Unavailable

3

CYLINDER | M15D

11211-01000

Unavailable

4

CYLINDER GASKET | M12MARK2,M15D,M12

11241-01000

Unavailable

5

CARBURETOR RIGHT COVER | M12MARK2,M15D,M12

11420-01008

Unavailable

6

CARBURETOR LEFT COVER | M12MARK2,M15D,M12

11431-01000

Unavailable

7

CARBURETOR ASS'Y | M15D

13280-01010

Unavailable

8

AIR CLEANER ASS'Y | M15D ISO

13700-01010

Unavailable

9

AIR CLEANER ELEMENT | M15D

13780-01016

Unavailable

10

AIR CLEANER TUBE | M12MARK2

13881-01020

Unavailable

11

SPARK PLUG CAP ASS'Y | M12MARK2,M15D,M12

33501-10801

Unavailable

12

SPARK PLUG CAP SEAL | M12MARK2,M15D,M12 UP TO172339 AFTER E.NO M10-

33541-11000

Unavailable

12

SPARK PLUG CAP SEAL | FROM E.NO.M10-172340 UP10-213140

33541-01000

Unavailable

13

SPARK PLUG CAP HIGH TENSION C | M12MARK2,M15D,M12 UP TO172339 AFTER E/MP/,10-2

33542-51000

Unavailable

13

SEAL, CORD | FROM E.NO.M10-172340 UP10-213140 This part replaces 33542-01000.

33542-26700

Unavailable

14

HEXAGON BOLT

01111-06257

Unavailable

15

BOLT This part replaces 01111-06707.

09100-06062

Unavailable

16

STUD BOLT

0411-06168

Unavailable

17

BOLT,STUD This part replaces 01421-06958.

01421-0695A

$2.32

18

CROSS HEAD SCREW

02111-04088

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 02111-04081.

02111-04082

Unavailable

19

CROSS HEAD SCREW

02111-06088

Unavailable

20

DOWEL PIN

04211-04109

Unavailable

21

.NUT This part replaces 08311-11068.

08310-00067

$2.13

22

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

23

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

24

WASHER This part replaces 08322-11048.

08322-01047

$1.86

25

WASHER This part replaces 08322-21068.

08322-01067

$2.13

26

NO DESCRIPTION AVAILABLE | M12MARK2,M15D,M12 This part replaces 09159-06002.

09159-06002-XC0

Unavailable

27

SPARK PLUG GASKET | M12MARK2,M15D,M12

09168-14004

$1.83

28

AIR CLEANER TUBE CLAMP | M12MARK2,M15D,M12

09386-31001

Unavailable

29

SPARK PLUG ASS'Y | M12MARK2,M15D,M12 STANDB-6) INCLUDES REF.NO.27

09482-00007

Unavailable

29

SPARK PLUG ASS'Y | (NGK B-4) INCLUDES REF.

09482-00006

Unavailable

29

SPARK PLUG ASS'Y | (NGK B-7) INCLUDES REF.

09482-00008

Unavailable
