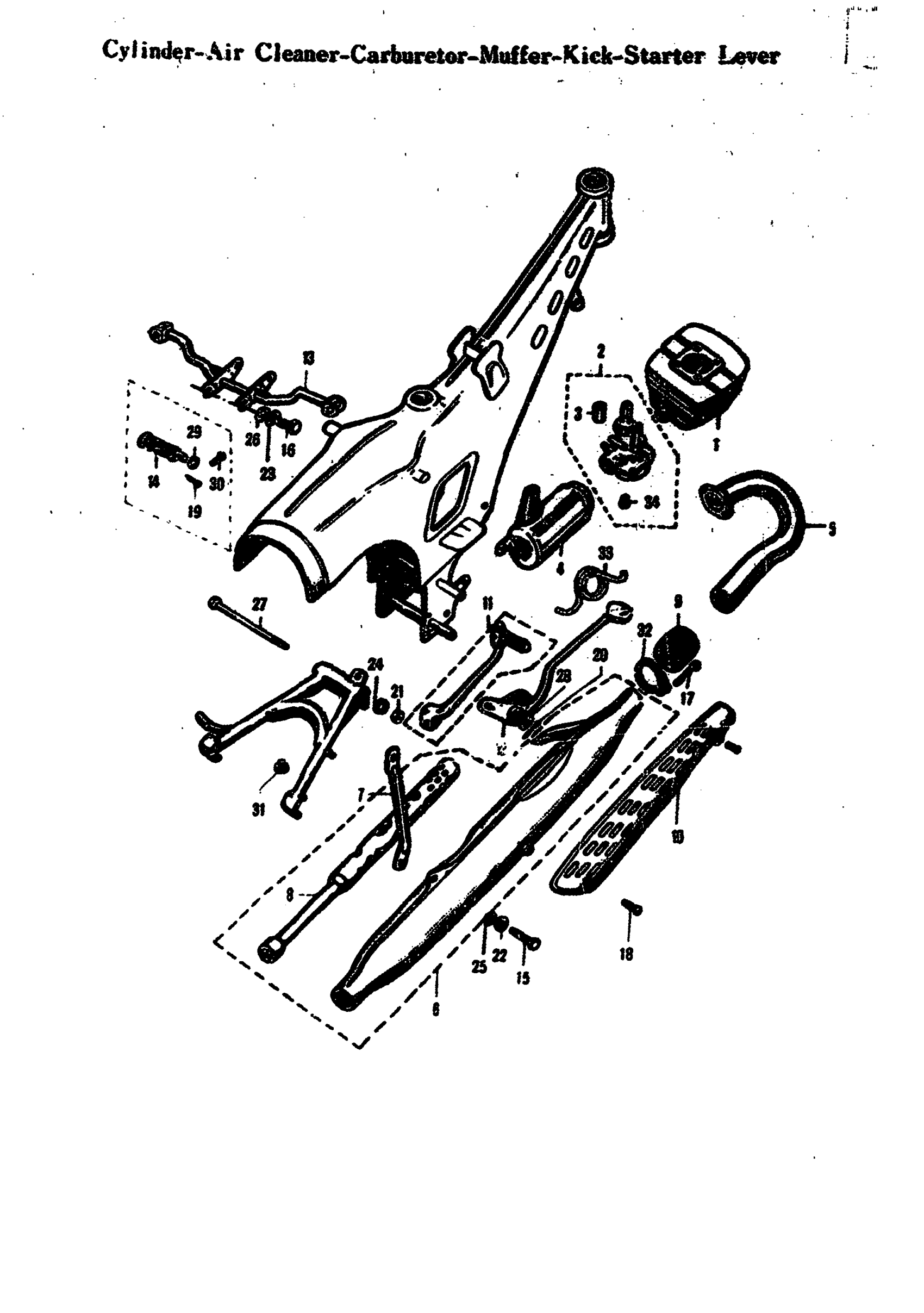

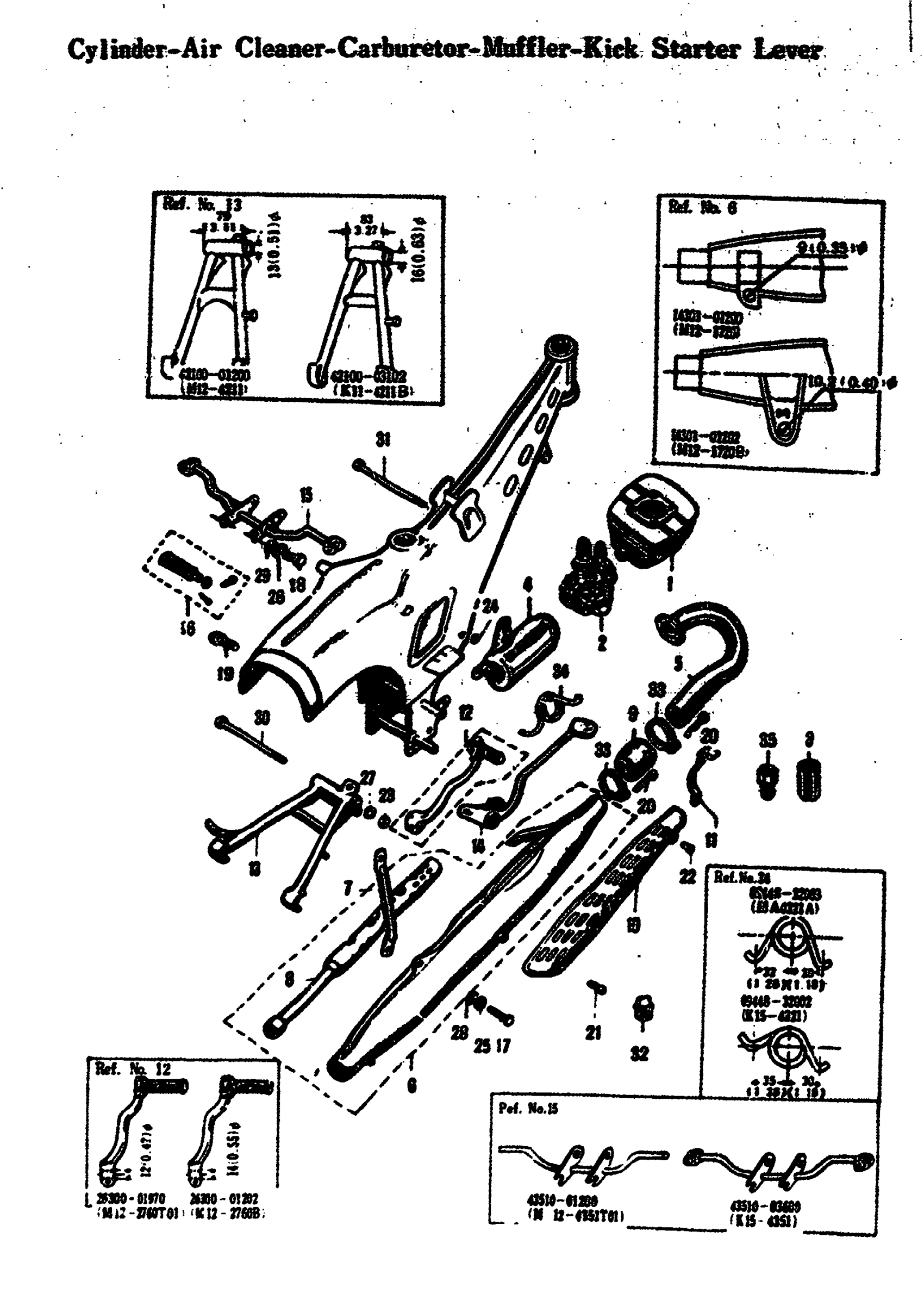

Suzuki 50M12 (1968) CYLINDER-AIR CLEANER-CARBURETOR-MUFFLER-KICK STARTER LEVER Diagram

#

Description
Price

1

CYLINDER

11211-01200

Unavailable

2

CARBORETOR ASS'Y | INCLUDES REF.NOS. 3 & 35

13200-01210

Unavailable

3

THROTTLE VALVE | CUT-AWAY 3.0(0.12)

13551-01210

Unavailable

4

AIR CLEANER ASS'Y

13700-01211

Unavailable

5

EXHAUST PIPE

14150-01200

Unavailable

6

MUFFLER ASS'Y | ISO

14301-01202

Unavailable

7

MUFFLER REAR BRACE

14470-01201

Unavailable

8

MUFFLER BUFFLE PIPE | ISO

14510-01202

Unavailable

9

MUFFLER CONNECTOR

14771-03000

Unavailable

10

MUFFLER COVER CLAMP | ISO

14780-01203

Unavailable

11

MUFFLER COVER CLAMP | O.M10-278774

14795-01200

Unavailable

12

KICK STARTER LEVER ASS'Y

26300-01202

Unavailable

13

CENTER STAND

42100-03102

Unavailable

14

BRAKE PEDAL

43110-03602

Unavailable

15

FOOTREST BAR

43510-03600

Unavailable

16

FOLDING FOOTREST RUBBER ASS'Y | THE PAGE 28 & 29 OF MODELOMPONENT PARTS

43600-03805

Unavailable

17

HEXAGON BOLT

01111-06127

Unavailable

18

PLUG, DRAIN This part replaces 01121-08168.

01500-0816B

$2.50

19

BOLT | NG DUST SEAT This part replaces 01221-08207.

01204-08207

$2.30

20

CROSS HEAD SCREW

02111-05208

Unavailable

21

CROSS HEAD SCREW

02111-06088

Unavailable

22

CROSS HEAD SCREW | O. M10-278774

02111-06168

Unavailable

23

NUT This part replaces 08312-11108.

08310-00107

$2.19

23

CENTER STAND NUT | O.M10-298579

42231-03600

Unavailable

24

NUT | O.M10-298579 This part replaces 08312-31088.

08310-00087

$2.13

25

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

26

.LOCK WASHER | O E.NO.M10-298579 This part replaces 08321-21088.

08321-01087

$2.13

27

LOCK WASHER | .M10-298569 This part replaces 08321-21108.

08321-01107

$1.84

28

WASHER This part replaces 08322-21068.

08322-01067

$2.13

29

WASHER This part replaces 08322-21088.

08322-01087

$2.13

30

BOLT,10X107 | OD=10(0.40) L=107(4.21) This part replaces 09100-10018.

09100-10151

Unavailable

30

CENTER STAND BOLT | ) L=110(4.35) UP TO E.NO.9

09100-08016

Unavailable

31

ENGINE MOUNTING BOLT | M12MARK2,M15,M15D OD=20(0W

09100-08016

Unavailable

31

ENGINE MOUNTING BOLT | ) L=110(4.35) UP TO E.NO.9

11699-01200

Unavailable

32

PLUG SET | M12MARK2,M15,M15D OD=20(0W This part replaces 09259-20003.

09200-20811

$4.02

32

OIL PLUG | O.M10-281163 OD=14(0.55)

24851-01970

Unavailable

33

MUFFLER CONNECTOR BAND | ISO 2 PCS.UP TO E.NO.M10-

09402-00130

Unavailable

34

SPRING, BRAKE PEDAL This part replaces 09448-32002.

09448-29001

Unavailable

34

BRAKE PEDAL RETURN SPRING | M15, M15D UP TO E.NO.M10-

09448-32003

Unavailable
