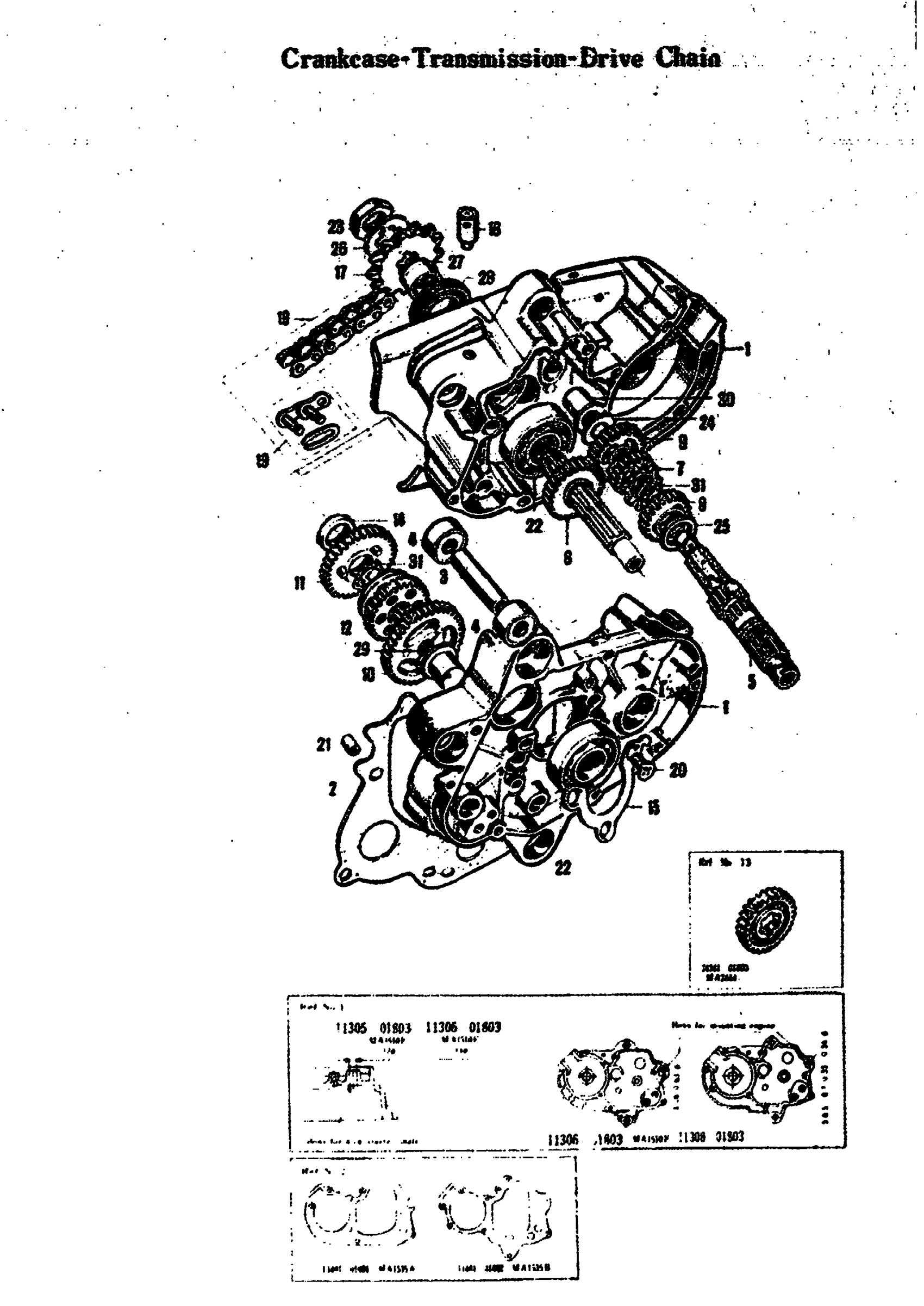

Suzuki 50M12 (1968) CRANKCASE-TRANSMISSION-DRIVE CHAIN Diagram

#

Description
Price

1

CRANKEASE ASS'Y | M12MARK2,M15D,M12 ISO INCLNOS.2.21 AND ALSO REF.NOS.13 ON PAGE 9ISO INCLUDES REF.NOS.2.21REF.NOS. 10.11 12&13 ON PTO E.NO. M10-283012

11308-01803

Unavailable

1

CRANKEASE ASS'Y | ISO INCLUDES REF.NOS.2.21REF.NOS.10.11 12&13 ON PAO E.NO.M10-152331

11306-01803

Unavailable

2

CRANKEASE GASKET | M12MARK2,M15D,M12

11481-01002

Unavailable

2

CRANKCASE GASKET | UP TO E.NO.M10-283012

11481-01001

Unavailable

3

ENGINE MOUNTING SPACER | OD=12(0.47) ID=8(0.31) L=

11699-01000

Unavailable

4

ENGINE MOUNTING BUSHING | OD=25(0.98) ID=8.2(0.32))

11699-50220

Unavailable

5

COUNTERSHAFT | M12MARK2,M15D,M12 N.T.=12

24121-01002

Unavailable

6

DRIVE SHAFT | M12MARK2,M15D,M12

24131-01002

Unavailable

7

SECOND PINION | M12MARK2,M15D,M12 N.T.=17

24221-01003

Unavailable

8

THIRD PINION | M12MARK2,M15D,M12 N.T.=21

24231-01001

Unavailable

9

TOP PINION | M12MARK2,M15D,M12 N.T.=23

24241-01003

Unavailable

10

LOW GEAR | M12MARK2,M15D,M12 N.T.=38

24310-01002

Unavailable

11

SECOND GEAR | M12MARK2,M15D,M12 N.T.=33

24320-01002

Unavailable

12

THIRD GEAR | M12MARK2,M15D,M12 N.T.=30

24331-01000

Unavailable

13

TOP GEAR | M12MARK2,M15D,M12 N.T.=26O.M10-420773

24341-01000

Unavailable

14

SECOND GEAR SPACER | M12MARK2,M15D,M12 O.D.=23D.=16(0.63) W=5(0.20)

24385-01000

Unavailable

15

COUNTERSHAFT BEARING RETAINER | M12MARK2,M15D,M12

24741-01000

Unavailable

16

PLUG, BREATHER | M12MARK2,M15D,M12 This part replaces 24821-09000.

24821-09001

$9.33

17

ENGINE SPROCKET | M12MARK2,M15D,M12 #420 N.T

27511-01000

Unavailable

17

SPROCKET, ENGIN | M12MARK2,M15D,M11 This part replaces 27511-01700.

27511-01701

$18.20

17

SPROCKET, ENGINE (NT:12)* | #420 N.T.=12 This part replaces 27511-01710.

27511-04000

Unavailable

17

ENGINE SPROCKET | #420 N.T.=14

27511-01720

Unavailable

18

DRIVE CHAIN ASS'Y | M12MARK2,M15D,M12 #420x99L

27600-01010

Unavailable

19

JOINT (DID) | M12MARK2,M15D,M12 #420 This part replaces 27620-01011.

27620-01012

$6.87

20

CROSS HEAD SCREW

02121-06128

Unavailable

21

DOWEL PIN

04211-09129

$1.65

22

BALL BEARING

08113-63030

$23.65

23

ENGINE SPROCKET NUT | M12MARK2,M15D,M12

09140-16002

$3.16

23

NUT | -01700 This part replaces 09140-16001.

09140-16005

$3.75

24

TOP PINION THRUST WASHER | M12MARK2,M15D,M12 OD=22(0.(0.43) T=1.2(0.05)

09160-11002

Unavailable

25

THIRD PINION THRUST WASHER | M12MARK2,M15D,M12 OD=24(0.(0.63) T=1.5(0.06)

09160-16007

Unavailable

26

ENGINE SPROCKET LOCK WASHER | M12MARK2,M15D,M12 OD=33(1.(0.51) T=1.0(0.04)

09167-16001

$1.87

26

WASHER | 8) ID=13(0.51) T=1.0(0.04)-01700 This part replaces 09167-16002.

09167-16001

$1.87

27

ENGINE SPROCKET SPACER | M12MARK2,M15D,M12 OD=21(0.(0.67) W=13(0.51)

09180-17008

$8.58

28

DRIVE SHAFT OIL SEAL | M12MARK2,M15D,M12 OD=40(1.0.83) W=7(0.28)

09283-21001

$12.70

29

DRIVE SHAFT BUSHING | M12MARK2,M15D,M12

09319-11001

Unavailable

30

COUNTERSHAFT BUSHING | M12MARK2,M15D,M12

09319-11002

Unavailable
