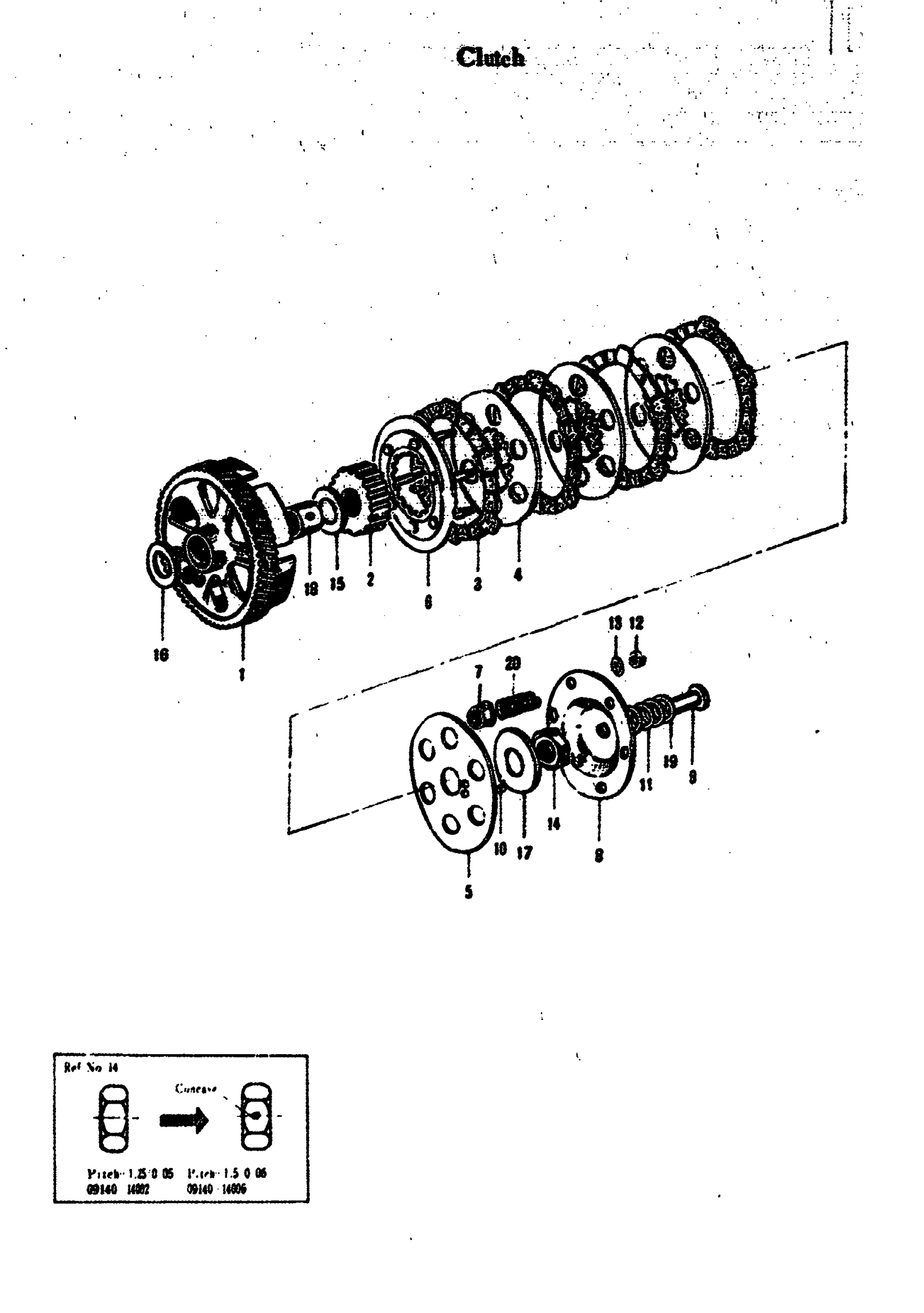

Suzuki 50M12 (1968) CLUTCH Diagram
#
Description
Price
1
PRIMARY GEAR | M12MARK2,M15D,M12 NT=66
21211-01001
Unavailable
2
CLUTCH SLEEVE HUB | M12MARK2,M15D,M12 OD=42W=21.5(0.85)
21411-01001
Unavailable
3
CLUTCH CORK PLATE | M12MARK2,M15D,M12
21441-01000
Unavailable
4
CLUTCH STEEL PLATE | M12MARK2,M15D,M12
21451-01000
Unavailable
5
CLUTCH DISK | M12MARK2,M15D,M12 OD=912.3(0.09)
21453-01002
Unavailable
6
CLUTCH OUTER PLATE | M12MARK2,M15D,M12 ISO
21460-01003
Unavailable
7
CLUTCH SPRING RETAINER | M12MARK2,M15D,M12
21463-01000
Unavailable
8
CLUTCH PRESSURE PLATE | M12MARK2,M15D,M12
21466-01001
Unavailable
9
CLUTCH PUSH PIECE | M12MARK2,M15D,M12
23121-01000
Unavailable
10
PIN This part replaces 06211-04103.
04221-04109
Unavailable
11
PUSH PIECE ADJUSTING WASHER
08212-08151
Unavailable
12
HEXAGON NUT
08311-11051
Unavailable
13
LOCK WASHER
08323-11051
Unavailable
14
CLUTCH SLEEVE HUB NUT | M12MARK2
09140-14006
Unavailable
15
WASHER, 2ND DRIVE GEAR | M12MARK2,M15D,M12 OD=29=17(0.67) T=1.0(0.04) This part replaces 09160-17001.
09181-17223
$2.96
16
WASHER | M12MARK2,M15D,M12 OD=29=17(0.67) T=1.5(0.06) This part replaces 09160-17003.
08211-17282
$2.70
17
CLUTCH SLEEVE HUB WASHER | M12MARK2,M15D,M12 OD=32=14(0.55) T=0.8(0.03)
09166-14084
Unavailable
18
CLUTCH HOUSING SPACER | M12MARK2,M15D,M12
09180-17009
Unavailable
19
PUSH PIECE ADJUSTING WASHER | M12MARK2,M15D,M12 OD=15=8.5(0.34) T=0.3(0.01)
09181-08001
Unavailable
20
CLUTCH SPRING | M12MARK2,M15D,M12 OD=10
09440-10004
Unavailable
