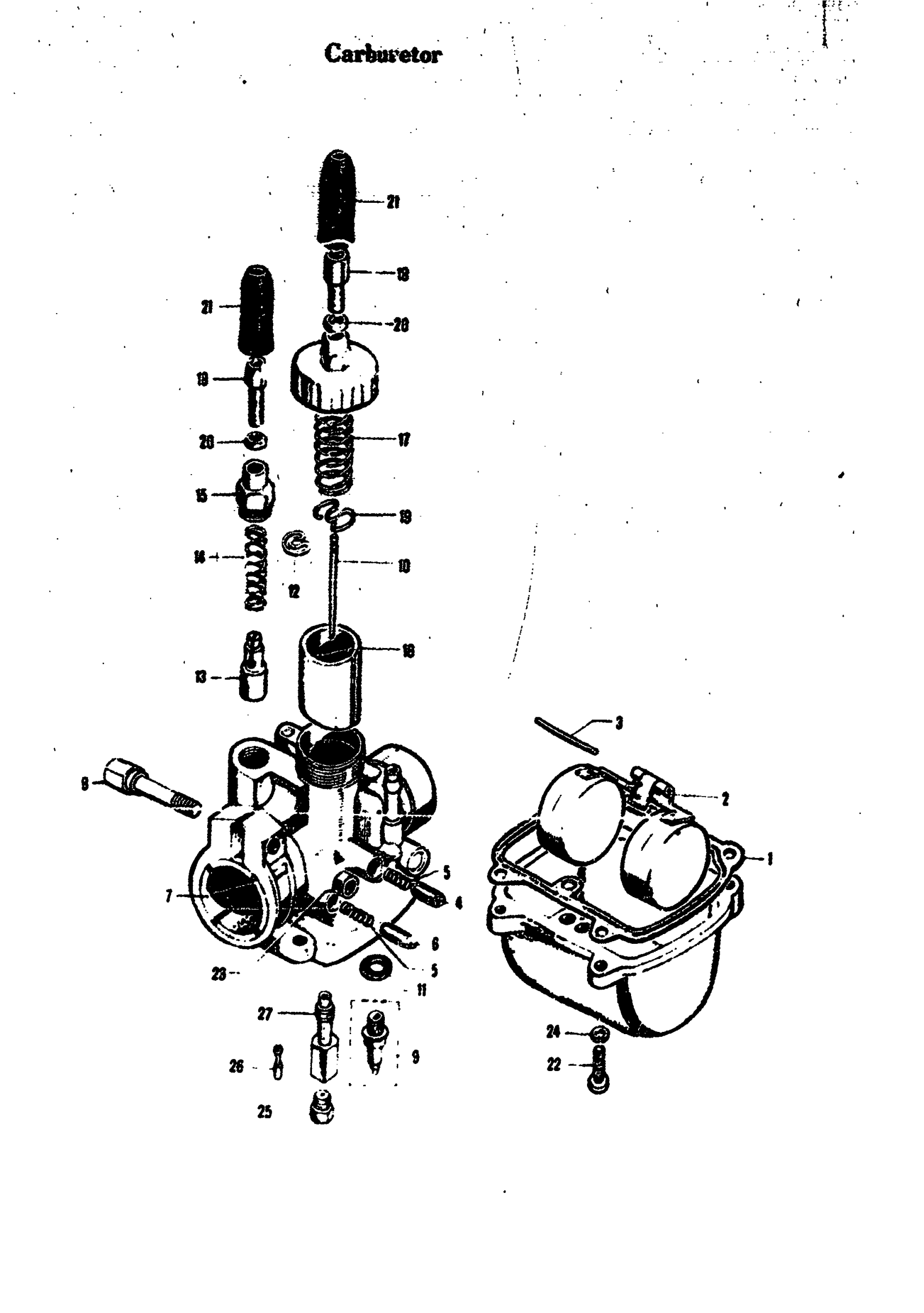

Suzuki 50M12 (1968) CARBURETOR Diagram

#

Description
Price

0

CERBURETOR ASS'Y | M12MARK2,M15D,M12

13200-01010

Unavailable

1

FLOAT CHAMBER GASKET | M12MARK2,M15D,M12

13251-01011

$5.45

2

FLOAT | M12MARK2,M15D,M12

13252-01010

Unavailable

3

.PIN, FLOAT | M12MARK2,M15D,M12

13254-01010

$3.62

4

THROTTLE VALVE STOP SCREW | M12MARK2,M15D,M12

13267-01010

$7.73

5

THROTTLE VALVE STOP SCREW SPR | M12MARK2,M15D,M12M12MARK2,M15D,M12

13268-01010

$5.28

6

PILOT AIR ADJUSTING SCREW | M12MARK2,M15D,M12

13269-01010

$14.20

7

CARBURETOR INSULATOR | M12MARK2,M15D,M12

13285-01010

Unavailable

8

OUTLET CLAMP BOLT | M12MARK2,M15D,M12

13323-01010

Unavailable

9

VALVE,NEEDLE | M12MARK2,M15D,M12 This part replaces 13370-13110.

13370-03310

Unavailable

10

NEEDLE, JET | M12MARK2,M15D,M12 This part replaces 13383-01010.

13383-04110

Unavailable

11

NEEDLE VALVE SEAT GASKET | M12MARK2,M15D,M12

13392-01010

$2.15

12

CLIP, NEEDLE | M12MARK2,M15D,M12 This part replaces 13394-01010.

13394-10010

$5.45

13

STARTER PLUNGER | M12MARK2,M15D,M12

13411-01010

$18.43

14

PLUNGER SPRING | M12MARK2,M15D,M12

13417-01010

$4.62

15

PLUNGER CAP | M12MARK2,M15D,M12

13418-01010

Unavailable

16

THROTTLE VALVE | M15D CUT-AWAY 2.0

13551-01010

Unavailable

17

THROTTLE VALVE SPRING | M12MARK2,M15D,M12

13573-01010

$5.82

18

ADJUSTER | M12MARK2,M15D,M12 This part replaces 13577-03010.

13577-48110

$8.30

19

PLATE | M12MARK2,M15D,M12 This part replaces 13581-01010.

13581-07910

Unavailable

20

CABLE ADJUSTER LOCK NUT | M12MARK2,M15D,M12

13661-03010

$5.67

21

CABLE ADJUSTER CAP | M12MARK2,M15D,M12

13682-02010

Unavailable

22

CROSS HEAD SCREW

02111-04141

Unavailable

23

HEXAGON NUT

08311-11051

Unavailable

24

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

25

MAIN JET | M15D STANDARD #75

09491-75001

Unavailable

25

MAIN JET | #65

09491-65001

Unavailable

25

MAIN JET | #70

09491-70001

Unavailable

25

MAIN JET | OPTIONAL #80

09491-80001

Unavailable

25

MAIN JET | #85

09491-85001

Unavailable

26

PILOT JET | M12MARK2,M15D,M12 #20

09492-20001

Unavailable
