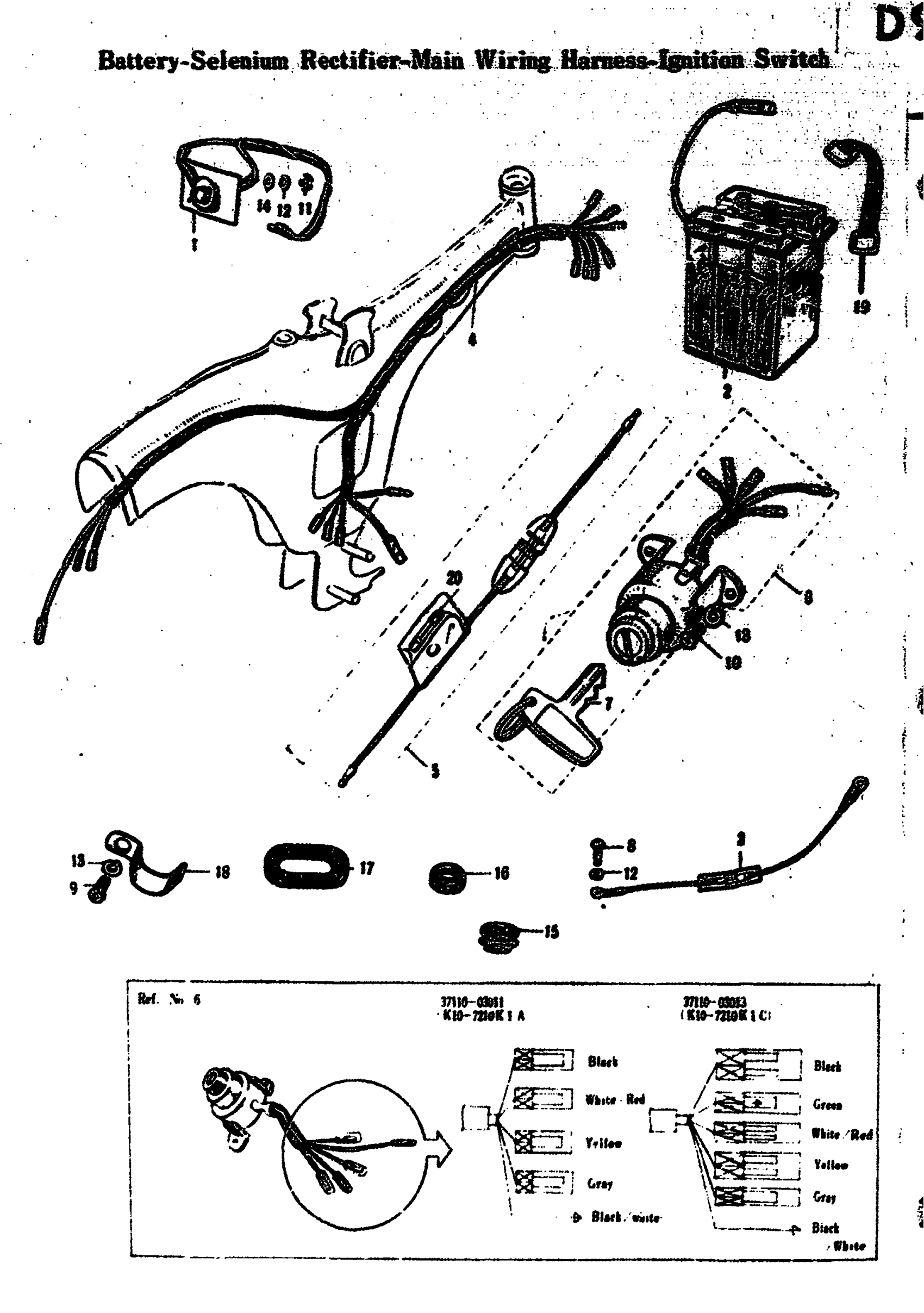

Suzuki 50M12 (1968) BATTERY-SELENIUM RECTIFIER-MAIN WIRING HARNESS-IGNITION SWITCH Diagram

#

Description
Price

1

DIODE | M12MARK2,M15D,M12; ISO This part replaces 32800-01020.

32800-16A00

$23.07

2

BATTERY ASS'Y | LH UP TO E.NO.M10-359317

33610-03010

Unavailable

3

ENGINE GROUND CABLE | UP TO E.NO.M10-283012

33860-03200

Unavailable

4

MAIN WIRING HARNESS | O. M10-359317

36610-01611

Unavailable

5

FUSE CASE ASS'Y | M12MARK2,M15D,M12

36740-01010

Unavailable

6

IGNITION SWITCH ASS'Y | O E.NO.M10-359317

37110-03013

Unavailable

7

SLOTTED BLANK KEY | M12MARK2,M15D,M12; OPTIONAITION SWITCHES WITH NOS. OINITIAL IS 1.

37145-07700

Unavailable

7

SLOTTED BLANK KEY | M12MARK2,M15D,M12; OPTIONAITION SWITCHES WITH NOS. OINITIAL IS 2.

37146-07700

Unavailable

7

SLOTTED BLANK KEY | M12MARK2,M15D,M12; OPTIONAITION SWITCHES WITH NOS. OINITIAL IS 3.

37147-07700

Unavailable

7

SLOTTED BLANK KEY | M12MARK2,M15D,M12; OPTIONAITION SWITCHES WITH NOS. OINITIAL IS 4.

37148-07700

Unavailable

8

CROSS HEAD SCREW

02111-05088

Unavailable

8

CROSS HEAD SCREW | O.M10-283812

02111-05081

Unavailable

9

CROSS HEAD SCREW | O.M10-359317

02111-06088

Unavailable

10

SCREW This part replaces 02111-06128.

02112-06127

$1.84

11

NUT This part replaces 08311-11058.

08310-00057

$1.84

12

LOCK WASHER | E 08321-21058 USED FOR FITNE GROUND CABLE UP TO E.NO12 This part replaces 08321-21058.

08321-0105A

$1.84

13

LOCK WASHER | TO E.NO.M10-359317 This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21058.

08322-01057

$2.13

15

REGULATOR WIRING HARNESS BUSH | M12MARK2M12MARK2

09308-06002

Unavailable

16

MAIN WIRING HARNESS BUSHING | M12MARK2

09308-12002

$1.99

17

MAIN WIRING HARNESS BUSHING | M12MARK2

09308-16001

Unavailable

18

MAIN WIRING HARNESS CLIP | UP TO E.NO.M10-359317

09403-00021

Unavailable

19

BAND, TOOL | UP TO E.NO.M10-359317 This part replaces 09462-00002.

09462-00067

$5.11
