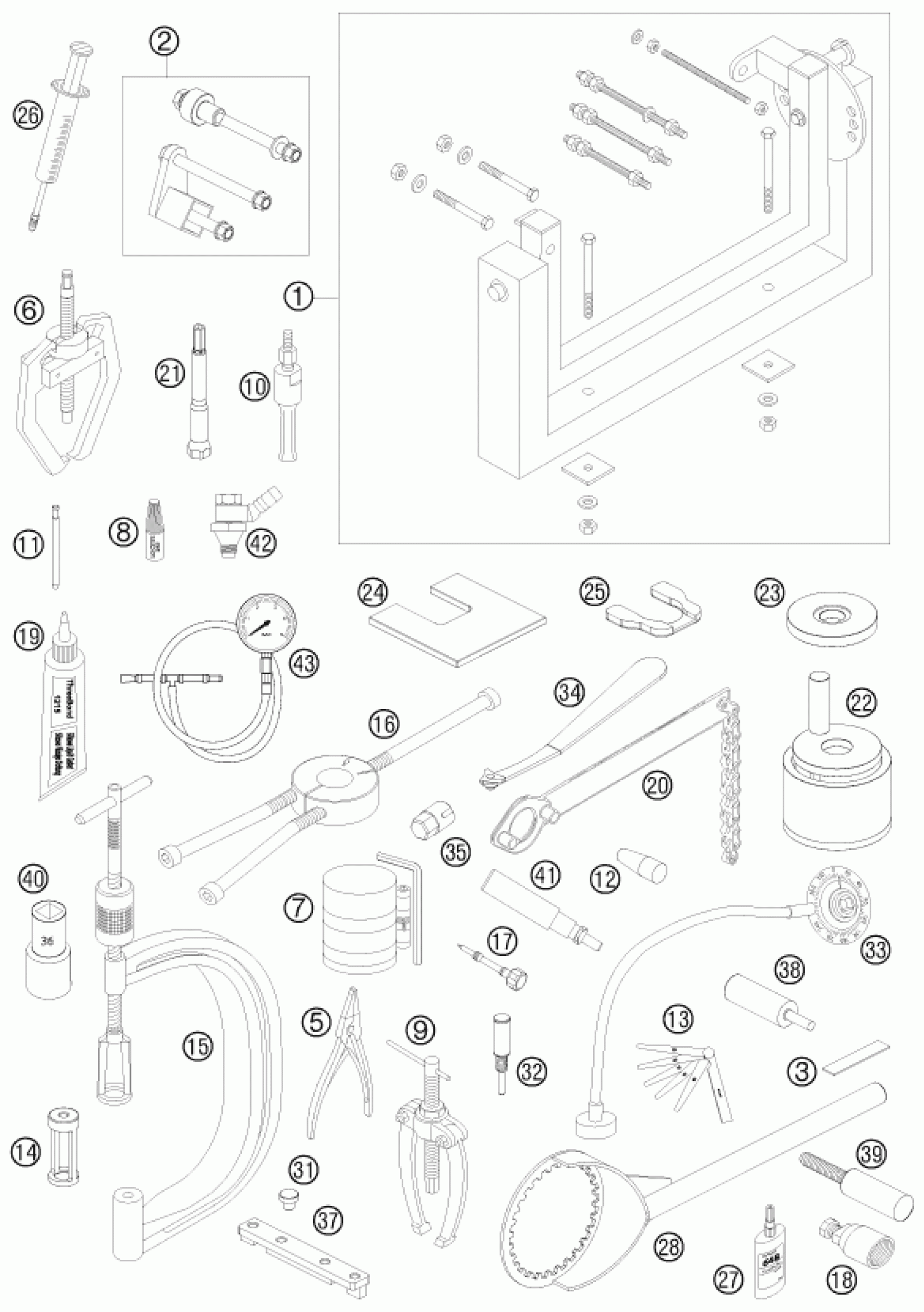

KTM 505 SX-F <2008> Special tools (engine) Diagram

#

Description
Price

10

INTERN.BEAR.PULLER 8-12 MM

77329020000

$124.44

11

LIMIT PLUG GAUGE F.VALVE GUIDE

59029026006

$32.84

12

MOUNT.SLEEVE F. SH.S.RING WAPU

58529005000

$53.52

13

FEELER GAUGE SET10,12,15,20,25

59029041000

$16.99

14

INSERT FOR VALVE SPRING LEVER

77329060000

$52.75

15

VALVE SPRING LEVER

59029019000

$415.46

16

MOUNTING TOOL INNER RING NJ206

58429037037

$91.62

17

MIXT. CONTROL SCREW FACTORY

59031017200

Unavailable

18

FLYWHEEL EXTRACTOR

58012009000

$47.90

19

SILICON GASKET THREE-BOND

309098

$28.88

20

HOLDING SPANNER FOR SPROCKET

51012012000

$98.42

21

SPARK PLUG WRENCH

77329072000

$62.95

26

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

27

LOCTITE 648 GREEN 10ML

58429059000

Unavailable

28

HOLD. PLATE CLUTCH 450 SX-F 07

77329003000

$114.66

31

PROTECTOR CAP F.CRANKSHAFT 07

75029090000

$24.34

32

ASSEMB. PIN F. GUID. AGW-ZR-KS

77329012100

$30.35

33

DEGREE DISK 360DEG - 1/2 INCH

60029010000

$583.81

34

WRENCH F.MIXTURE CONTROL SCREW

77329034000

$67.83

35

SP. WRENCH F.HOSE CONNECTOR 07

77329081000

$34.28

37

ADJUST BUSH BRIDGE

77329050000

$69.76

39

LOCATING SCREW

77329010000

$25.77

40

SPECIAL SOCKET F. PRIMARY GEAR

77329021000

$136.88

41

PLUG IN FUSE PISTON PIN

77329030100

$52.09

42

ADAPTOR F.OIL PRESSURE GAUGE

77329006000

$72.90

43

EFI PRESSURE TESTER

61029094000

$350.28

22

PRESS. TOOL F. CRANKS. CPL.

75029047000

$677.00

23

PRESS. TOOL F. CRANKSHAFT

77629008000

Unavailable

24

EXTRUDE PLATE BASE F. CRANKSH.

77629009001

Unavailable

25

EXTRUDE PLATE TOP F. CRANKSH.

77629009002

$122.12

1

ASSY SUPPORT (WITHOUT HOLDER)

56012001000

$969.33

2

FIXING ARM CPL. 450 SX-F 07

77329002000

$125.90

3

PLASTIGAUGE - MEASURING STRIP

60029012000

$28.00

5

SPECIAL CIRCLIP PLIER

51012011000

$191.50

6

EXTRACTOR FOR TIMING GEAR

59029033000

$164.93

7

PISTON RING COMPRESSOR CPL. 03

60029015000

$108.77

8

LOCTITE 243 BLUE 5 ML

6899785

$28.04

9

BUSHING EXTRACTOR

15112017000

$179.32

10

INTERN.BEAR.PULLER 12-16 MM

15112018000

$249.22

10

INTERN.BEAR.PULLER 18-23 MM

15112018100

$278.54

10

INTERN.BEAR.PULLER 5-7 MM

15112018200

$204.35

38

UNLOCK CHAIN TENSIONER

77329051000

$45.02
