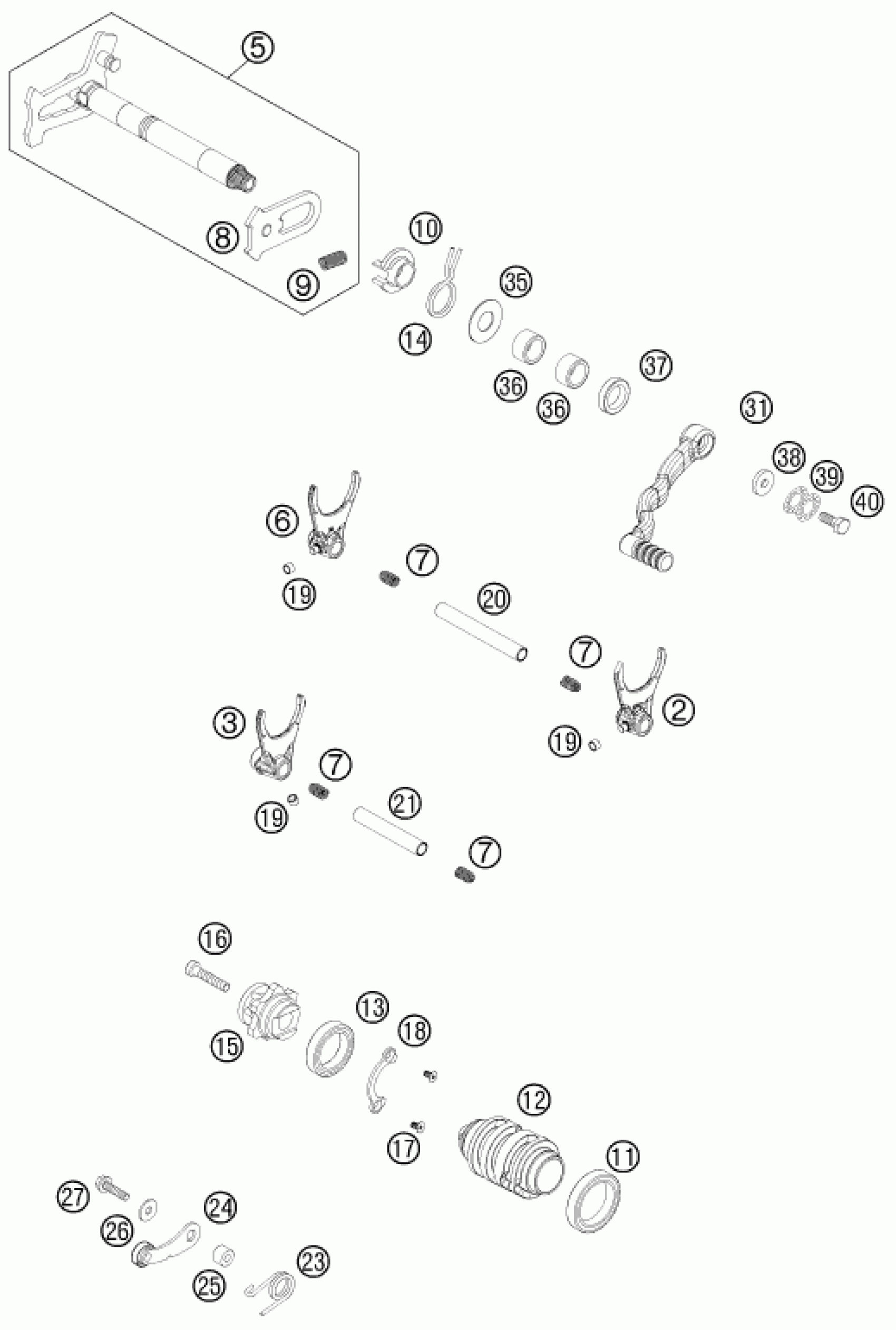

KTM 505 SX ATV 2012 SHIFTING MECHANISM Diagram

#

Description
Price

7

PRESSURE SPRING 0,9MM

58038023200

$4.11

9

TENSIONING SPRING 0,8MM

56534013100

$1.49

10

SPRING GUIDE

54634020000

$6.44

11

BALL BEARING 61806

0625061806

$23.83

12

SHIFT ROLLER 5G 08

77334012100

$97.89

13

BALL BRG 6805 C4 NTN JAPAN

0625068050

$43.94

14

RETURN SPRING 03

54834014000

$4.11

15

SHIFT LOCATING DRUM CPL.

83534015000

$41.51

16

AH SCREW DIN6912 M6X30 8.8

0012060303

$1.49

17

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

18

BUSHING RETAINING PLATE

77334090000

$4.11

19

SHIFTING ROLLER 6X8X5,2

50334018100

$4.11

20

SHIFT RAIL

77334020000

$8.88

21

FRONT SHIFT RAIL

77334019000

$8.36

23

ARRESTING LEVER SPRING 03

60034023000

$2.05

24

LOCATING LEVER CPL. 08

50334024144

$14.58

25

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

26

washer DIN 9021 A - 5.3

0021050003

$1.49

27

HH collar screw M5x20 TX30

0025050206

$2.05

31

SHIFT LEVER

83534031000

$44.09

35

STOP DISK 14X30X1

54634050000

$2.05

36

needle sleeve HK 1412 14x20x12

54632095000

$7.00

37

radial shaft seal 14x24x6 B

0760142460

$9.25

38

STEEL WASHER 6,4X17X3

50232050001

$5.23

39

Pair of washers M6 NORDLOCK

50233041000

$4.11

40

HH SCREW DIN0933-M 6X16 10.9

0933060165

$2.05

2

SHIFTING FORK 2ND/4TH GEAR

77334002100

$41.80

3

SHIFTING FORK 3RD/5TH GEAR 03

77334003100

$42.78

5

SHIFT SHAFT CPL.

83534005044

$114.62

6

SHIFTING FORK 1ST.GEAR

77334001100

$42.78

8

SLIDING PLATE CPL.

54634008044

$10.46
