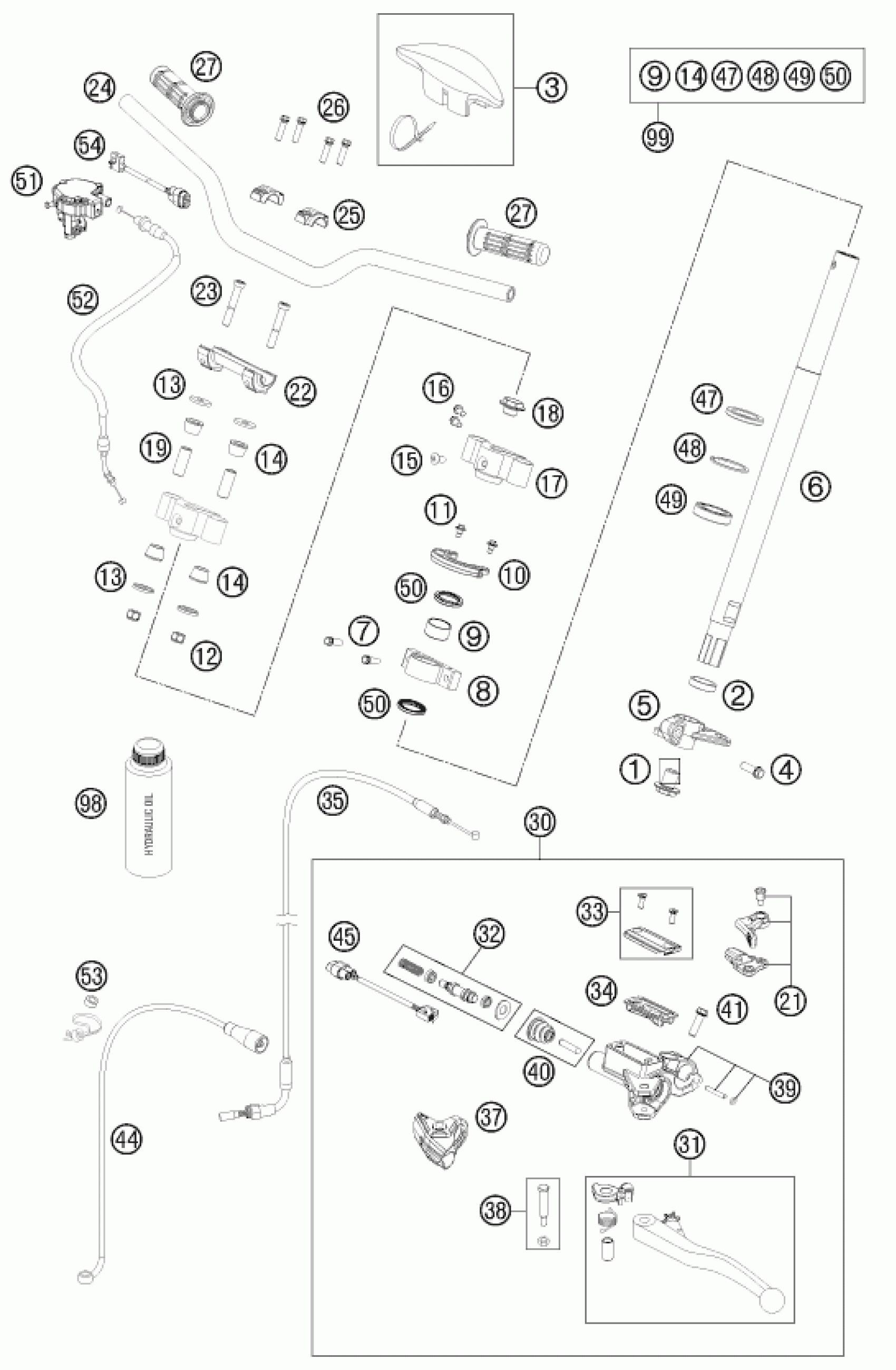

KTM 505 SX ATV 2012 HANDLEBAR, CONTROLS Diagram

#

Description
Price

8

BEARING BLOCK STEERING COLUMN

83001035100

$42.35

9

SLIDE BEARING W.C. JSM-3539-20

83001035150

$15.61

10

CABLE GUIDE

83001069000

$4.35

11

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

12

SELF LOCKING NUT DIN0985-M10

0985100003

$2.05

13

BUCKET

83001042000

$4.35

1

STEERING HEAD SCREW M20X1,5

83001033051

$18.97

2

WASHER F. STEERING BEARING

83001033052

$7.00

3

BAR PAD CPL.

77202002100

$22.94

4

HH COLLAR SCREW M10X30 WS=13

0015100303

$1.49

5

STEERING LEVER

83001033050

$82.73

7

HH collar screw M8x25

0025080256

$2.05

14

RUBBER BUSH

83001040000

$5.23

15

COUNTER-SUNK SCREW ISA45 M8X20

0019080206

$2.05

16

HH collar screw M8x20

0025080206

$2.05

17

HANDLE BAR BRIDGE

83001034108

Unavailable

18

STEER.HEAD SCREW M20X1,5 WS=27

54801036000

$11.21

19

SPACER TUBE 10.2X16X39

83001041000

$5.88

21

HOT START LEVER CPL. 09

77302047000

$37.95

22

HANDLEBAR SUPPORT 28MM SC'99

59001039100

$147.25

23

AH SCREW DIN6912-M10X60

0012100606

$5.23

24

HANDLEBAR ATV 2008

83002001000

$172.91

25

HANDLEBAR CLAMP D=28MM 2000

59001038200

$27.76

26

HH collar screw M8x30

0025080306

$3.08

27

GRIP-SET DUAL COMPOUND

83002021000

Unavailable

30

MASTER CYLINDER CPL. 10,5 mm

83502030000

Unavailable

31

CLUTCH LEVER CPL. 2009

50302031300

$45.15

32

REP.KIT PISTON 10,5MM 09

77302032000

$94.15

33

COVER HYDR. CLUTCH CPL. 09

50302033200

$28.14

34

RUBBER FOR RESERVOIR 09

50302034100

$19.16

35

CABLE FOR HOTSTART

83502096000

Unavailable

37

MUD CAP 09

50302037100

$36.74

38

LEVER SCREW CPL. 09

50302038100

$22.90

39

CLAMP, CYL. PIN, O-RING

83013005000

$53.85

40

PUSH ROD CPL. 09

50302046000

$31.78

41

HH collar screw M6x16 TX30

0025060166

$3.08

44

CLUTCH PIPE

83032063000

$111.20

45

CLUTCH SWITCH ATV

83111049000

$106.49

47

SHAFT SEAL RING 38,5X55X7

0760385570

$6.72

48

CIRCLIP DIN0472-55X2

0472055200

$3.08

49

BALL BEARING 6006/32-2RS1

0625060061

$32.72

50

SHAFT SEAL RING 35x47x6 NBR902

83501035060

$10.09

51

THUMB THROTTLE

83002022100

$107.14

52

THROTTLE CABLE ATV

83002091000

$80.34

53

SPACER BUSHING 6X10X5

50301089000

$2.05

54

SAFETY SWITCH THUMB THROTTLE

83011025000

Unavailable

98

OIL FOR HYD. CLUTCH 100 ML

50302036200

$19.91

99

STEERING STEM RENEW KIT ATV

00050010012

Unavailable

6

STEERING COLUMN

83501033100

Unavailable
