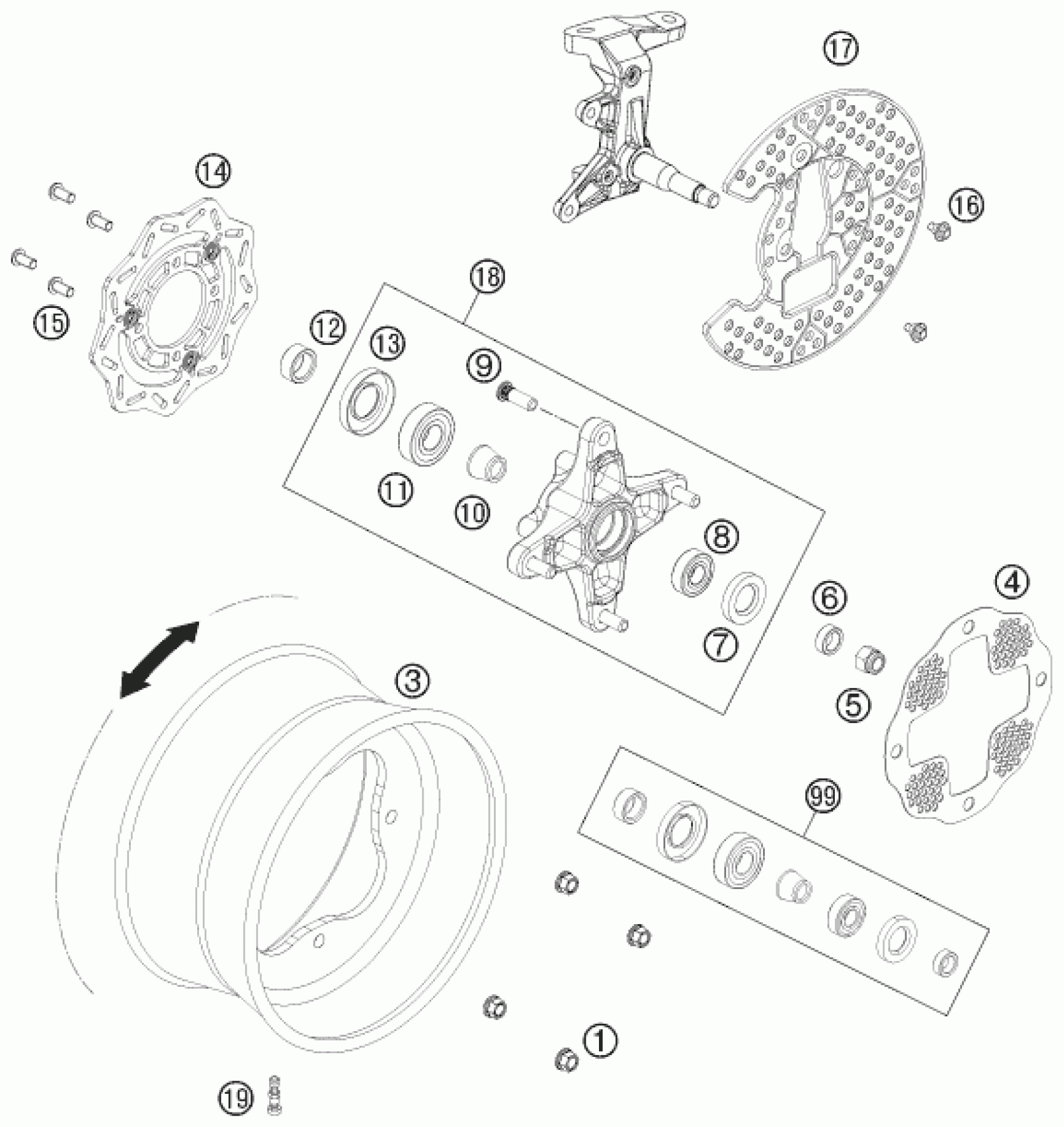

KTM 505 SX ATV 2012 FRONT WHEEL Diagram

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

RIM FRONT 10X5-5

83009070000

$224.34

OUTER BRAKE DISK PROTECTOR

83009066000

$11.49

SELF LOCKING NUT DIN0985-M12

0985120003

$2.05

SPACER BUSHING

83009013000

$5.88

SHAFT SEAL RING BSL 22X40X7NBR

0760224070

$5.51

BALL BEARING 6202-2RSH/C3

0625062028

$14.11

WHEELBOLT

83009016000

$25.61

BEARING SPACER BUSHING

83009014000

$10.56

BALL BEARING 6204-2RSH/C3

0625062047

$16.82

SPACER BUSHING

83009015000

$7.85

SHAFT SEAL RING BSL 28X52X7NBR

0760285270

$8.31

BRAKE DISK

83009060000

$159.10

FLAT HEAD SCREW ISO7380 M8X16

0738080166S

$2.05

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

BRAKE DISK PROTECTOR

83009065100

Unavailable

FRONT WHEEL HUB CPL. SP 2008

83009010044

$190.77

VALVE

83009076000

$3.31

FRONT WHEEL REP. KIT ATV

00050010007

Unavailable
