FRONT-END

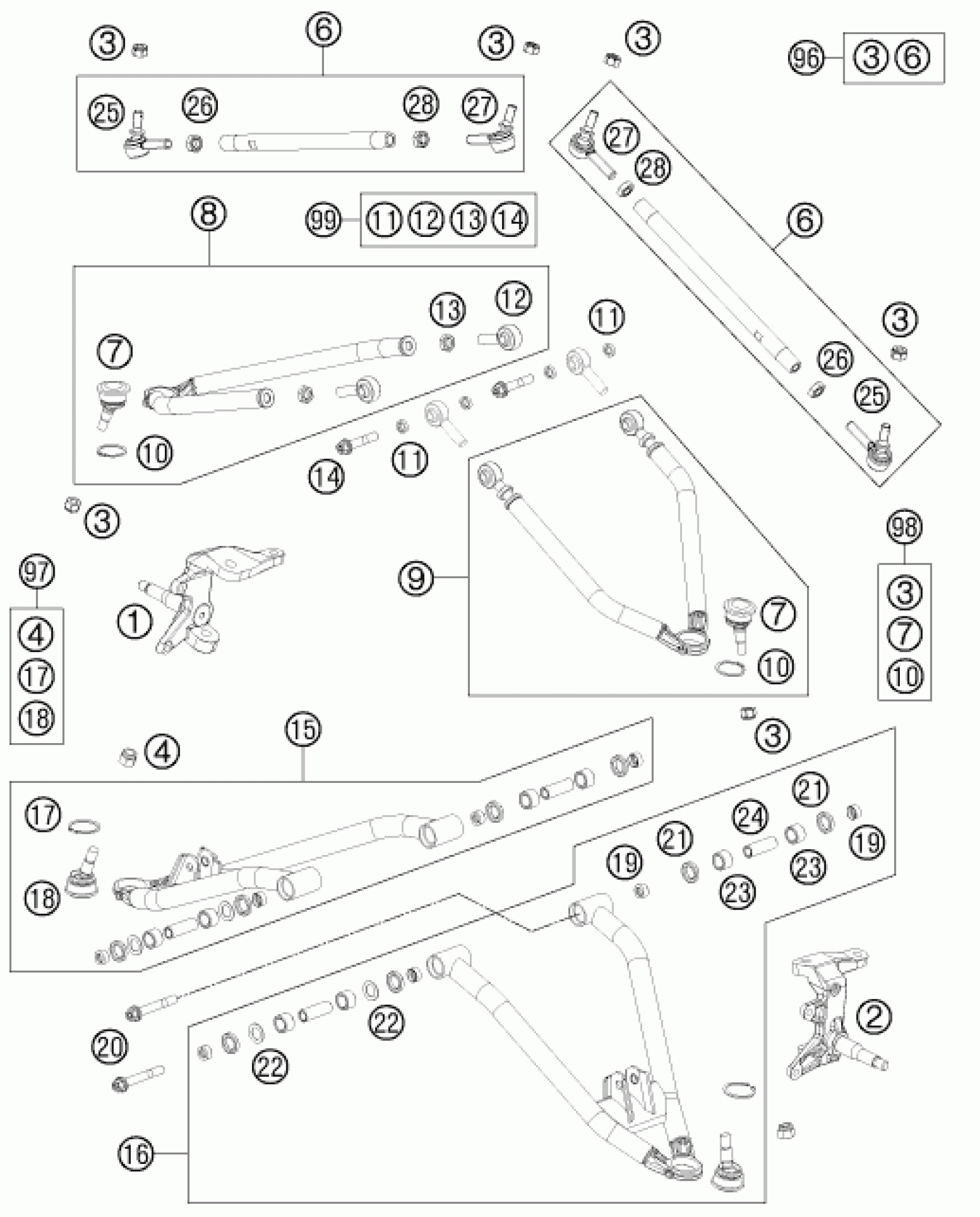

KTM 505 SX ATV 2012 FRONT-END Diagram
#
Description
Price
1
WHEEL CARRIER R/S CPL.
83061006200
Unavailable
2
WHEEL CARRIER L/S CPL.
83061005200
Unavailable
3
SELF LOCK.NUT M10X1,25
0982101253
$2.05
4
SELF LOCK.NUT M12X1,5
83061005025
$2.05
6
TRACK RODS CPL. SX
83561010044
$170.37
7
BALL HEAD M10X1,25
83061001050
$47.58
8
A-ARM TOP RIGHT CPL. SX
83061103044
$282.89
9
A-ARM TOP LEFT CPL. SX
83061101044
$282.71
10
CIRCLIP DIN0471-32X1,5
0471320150
$6.07
11
SPACER BUSHING F. BALLJOINT
83061001025
$3.08
12
SWIVEL HEAD
83061001051
$132.37
13
HEXAGON NUT DIN 936 M12x1,25
0936120123
$2.05
14
COLLAR SCREW M10X52 TX
0023100523
$6.82
15
A-ARM BOTTOM RIGHT CPL. SX
83061104044
$279.76
16
A-ARM BOTTOM LEFT CPL. SX
83061102044
$279.67
17
CIRCLIP DIN0741-35X1,5
0471350150
$5.41
18
BALL HEAD M12X1,5
83061002050
$47.58
19
BUCKET F. SHAFT SEAL RING
83061034000
$5.23
20
COLLAR SCREW M10X70 TX
0023100703
$3.58
21
SHAFT SEAL RING 17X26X6
0760172660
$5.32
22
STOP DISK 15,2X25X1 MM
83061015000
$3.08
23
NEEDLE BEARING HMK 1515
83061079000
$6.80
24
BUSHING SLEEVE F. A/ARM
83061032000
$8.59
25
BALL HEAD TRACK RODS RIGHT
83061010002
Unavailable
26
NUT RIGHT
83061010004
Unavailable
27
BALL HEAD TRACK RODS LEFT
83061010001
Unavailable
28
NUT LEFT
83061010003
Unavailable
96
TRACK ROD KIT CPL. ATV
00050010011
Unavailable
97
BALL JOINT KIT LOWER ATV
00050010008
Unavailable
98
BALL JOINT KIT UPPER ATV
00050010009
Unavailable
99
UPPER A ARM SWIVEL HEAD KIT
00050010010
Unavailable
