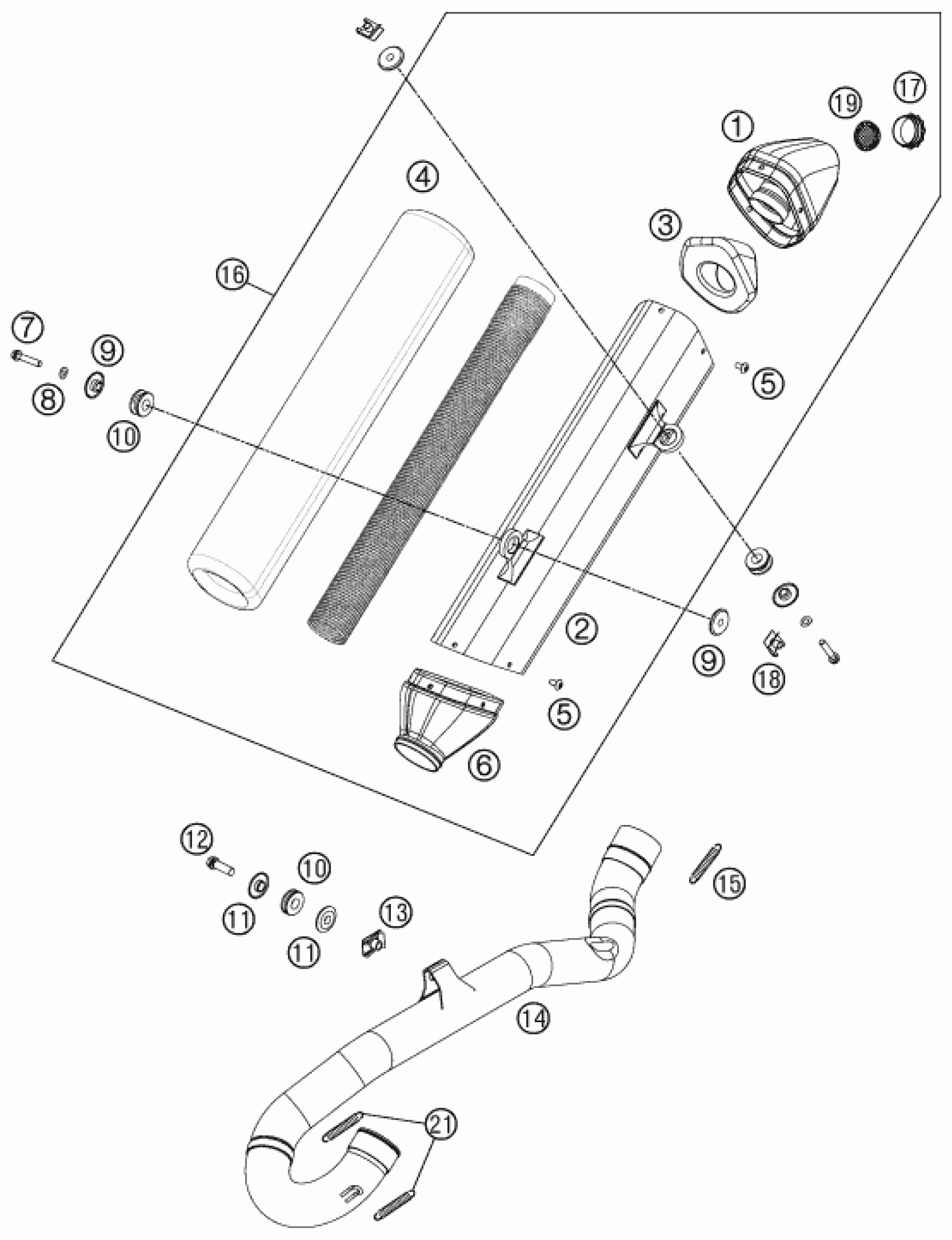

KTM 505 SX ATV 2012 EXHAUST SYSTEM Diagram

#

Description
Price

1

ENDCAP 07

77305079006

$105.43

2

SILENCER HOUSING SX ATV

83005079050

Unavailable

3

ROCKWOOL PREFORMED

83005078070

Unavailable

4

STUFFING YARN 640G

77105078640

Unavailable

5

SCREW TORX M5X10 05

58605083010

$2.05

6

SIL. CONNECT. CAP CPL. ATV

83005079060

Unavailable

7

HH collar screw M6x30 TX30

0025060306

$3.08

8

spring washer DIN 137 B - 6

0137060003

$2.05

9

BUSHING 7,5X12X28X7,8 '96

54605069000

$6.07

10

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

11

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54

12

HH collar screw M8x25

0025080256

$2.05

13

RANGE CHANGE METAL NUT M8

54603048000

$4.11

14

EXHAUST MANIFOLD R/S CPL.

83505007000

$527.25

15

RETURN SPRING L=38 MM

54309036000

$5.23

16

EXHAUS SILENC. CPL. R/S ATV SX

83005079000

Unavailable

17

SIL. ELEMENT EXC-F 07

77005081055

$9.81

18

clip nut M6

54603048100

$4.11

19

THROTTLE ELEMENT CPL. EXC 07

77005081065

$15.89

21

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57
