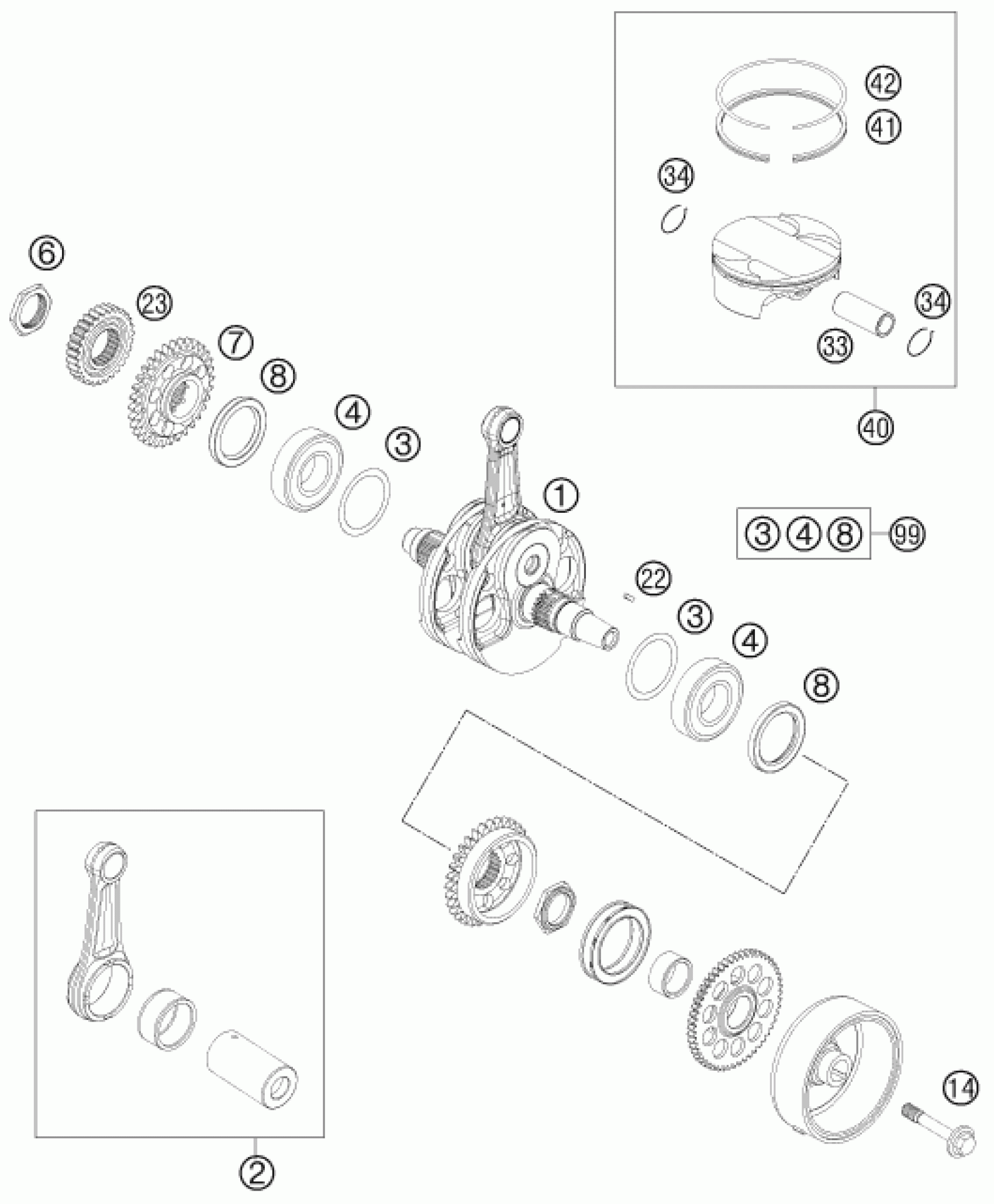

KTM 505 SX ATV 2012 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

83630018100

Unavailable

2

CONNECTING ROD REPAIR SET

77630015144

$578.67

3

THRUST WASHER 30X42X0,1

0988304201

Unavailable

3

THRUST WASHER 30X42X0,2

0988304202

Unavailable

3

THRUST WASHER 30X42X0,3

0988304203

Unavailable

4

CYL. ROLLER BEARING NJ206 ECP

77330082000

$80.50

6

COLLAR NUT M27X1

77330029000

$10.84

7

DRIVE WHEEL

83530055010

$98.76

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

$11.87

14

FLYWHEEL SCREW

77339010100

$5.60

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

23

PRIMARY GEAR

83532023026

$46.72

33

PISTON PIN

77630033000

$77.60

34

CIRCLIP

77630074000

$10.56

40

PISTON D=100MM GR. 1

77630007300 I

Unavailable

40

PISTON D=100MM GR.2

77630007300 II

Unavailable

41

OIL SCRAPER RING

77630032100

$46.55

42

RECTANGULAR RING D=100 07

77630030000

$41.04

99

CRANKSHAFT REP. KIT 450 SX-F

00050002304

Unavailable
