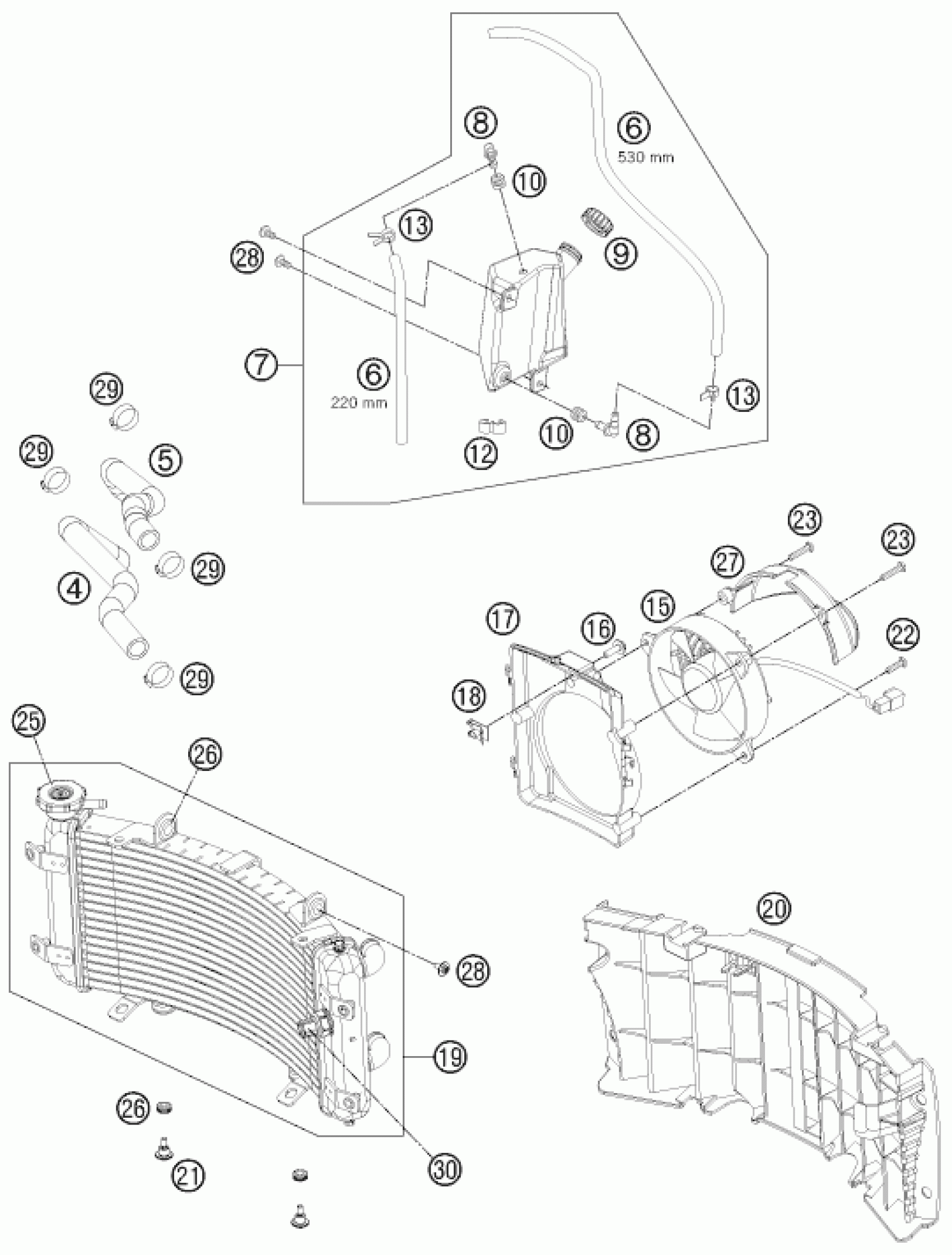

KTM 505 SX ATV 2012 COOLING SYSTEM Diagram

#

Description
Price

12

DISTANCE HOLDER 10/10 BLACK

60038039000

$2.05

4

COOLING WATER HOSE

83535026000

$21.40

5

PREFORMED HOSE RADIATOR-CYL.

83535027000

$17.66

6

HOSE 6X10 EPDM 03

60035067001

Unavailable

7

EXPANSION TANK

83035065000

$51.23

8

Angle piece, reservoir

60035068000

$3.08

9

PLUG F. EXPANSION TANK

60035066000

$6.72

10

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

13

CLAMP YDNAC 10128 12MM

58031005000

$3.08

15

FAN L/S 03

60035041000

$164.83

16

HH collar screw M6x20 TX30

0024060206

$3.08

17

FAN COWL ATV

83035041000

$6.62

18

clip nut M6

54603048100

$4.11

19

RADIATOR ATV 2008

83035010000

$447.75

20

RADIATOR PROTECTOR

83035040000

$18.20

21

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

22

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

23

SPECIAL SCREW T60 6X30 WS=6

0017060303

$2.05

25

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

$15.98

26

RUBBER SLEEVE D=12MM

41001052000

$4.11

27

AIR CONDUCTION COWL ATV

83035042000

$4.78

28

COLLAR SCREW M6X12 TX

0024060123

$1.49

29

HOSE CLAMP GEMI 18-29

10001020000

$2.05

30

THERMOSWITCH 80-85 DG

83035045000

$40.29
