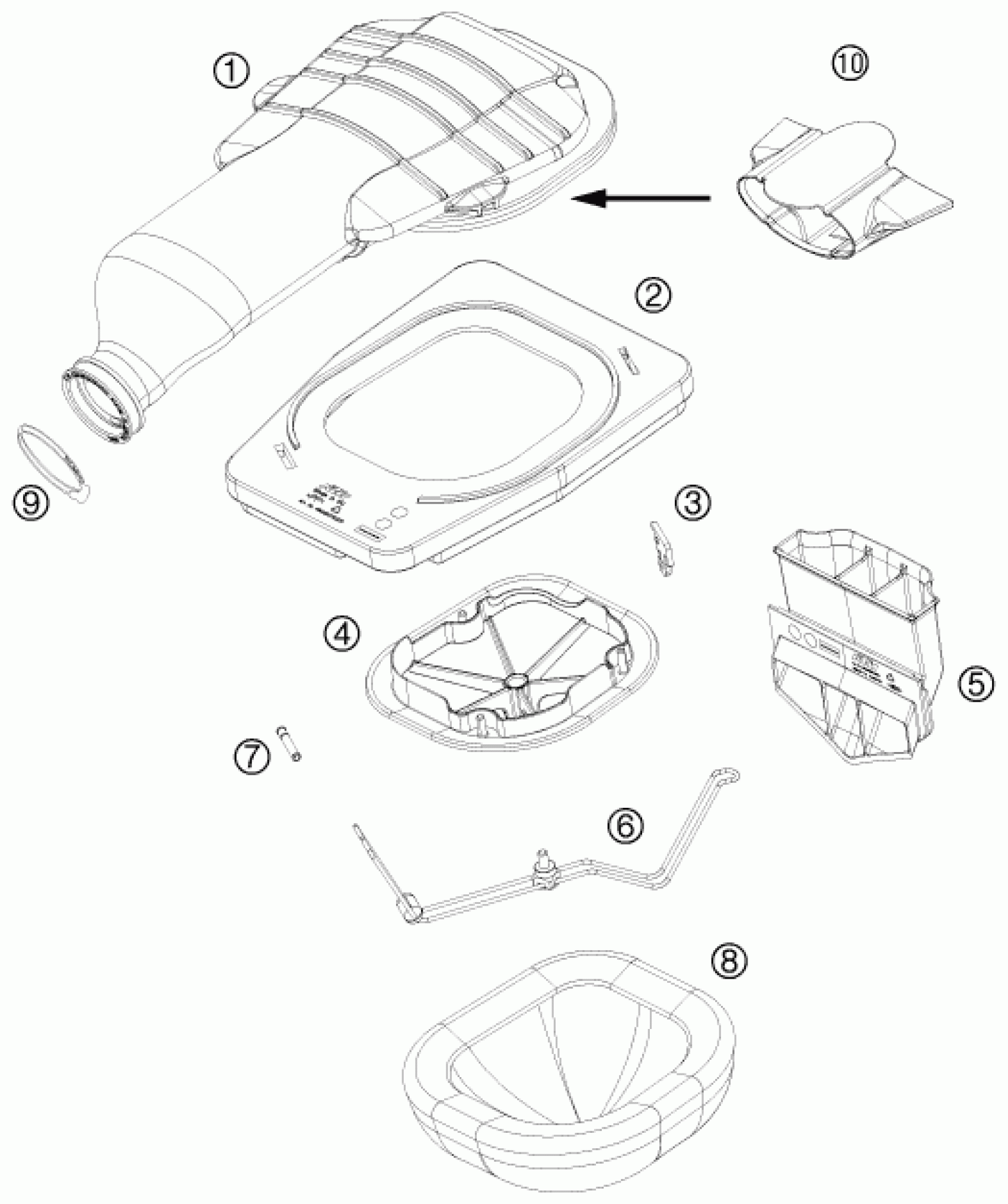

KTM 505 SX ATV 2012 AIR FILTER Diagram

#

Description

Price

1

CARBURETOR CON. BOOT SX 2009

83506026000

$87.41

2

AIR FILTER BOX COVER

83008072130

$12.64

3

FASTEN. DEVICE FILTER S. SX 07

77306019000

$6.54

4

FILTER CARRIER 4S SX 07

77306016000

$29.35

5

INTAKE MANIFOLD

83006024000

$34.85

6

AIR FILTER SUPPORT BRACKET CPL

83006017000

$23.37

7

FILTER SUPPORT BUSH 07

77306018000

$3.08

8

AIR FILTER

78006015000

$32.12

9

HOSE CLAMP 50-70MM

51006027000

$6.07

10

HARDENING INTAKE RUBBER

83506026050

Unavailable
