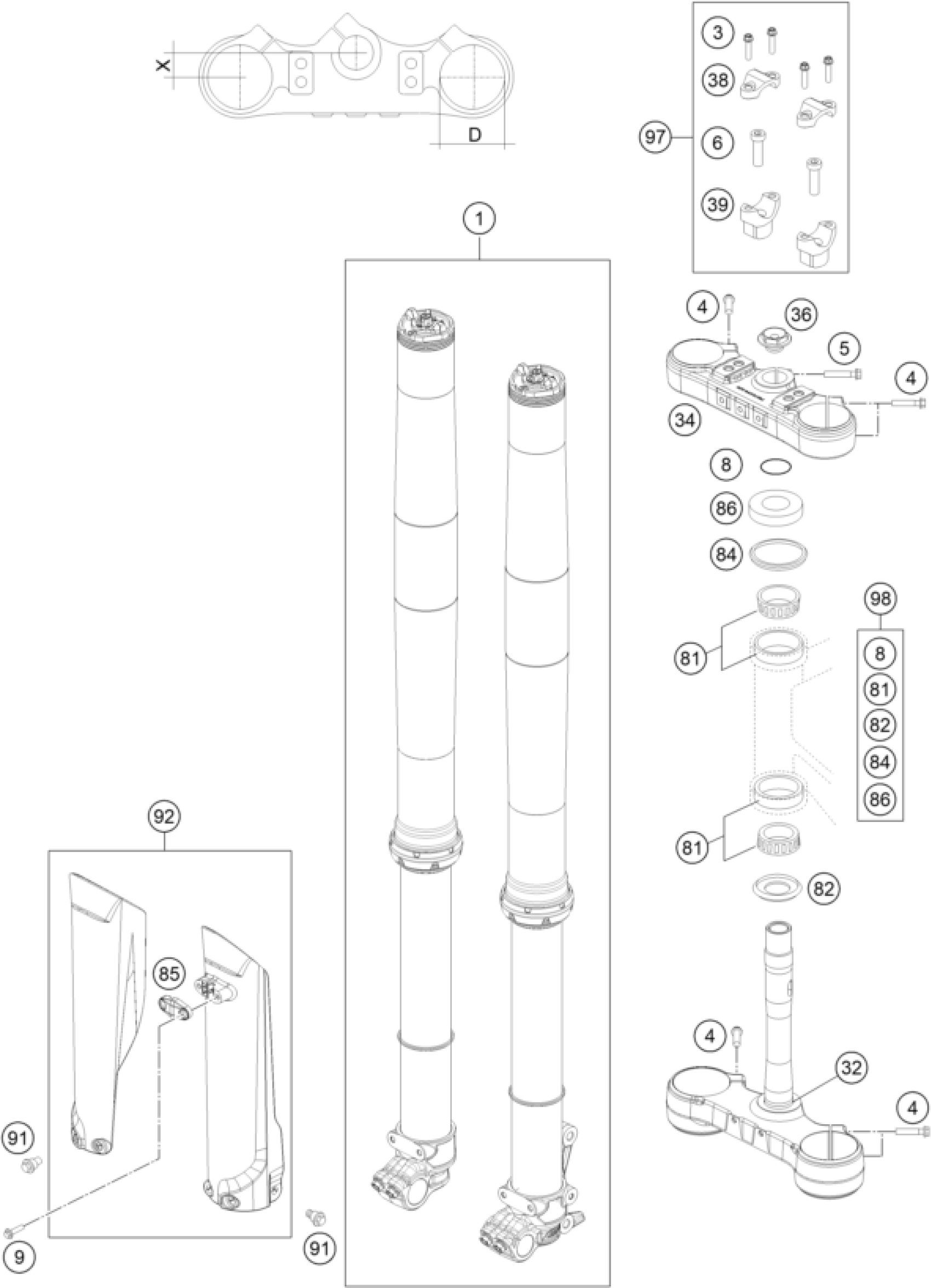

KTM 500 XCF-W 2021 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork EXC-F 350/400/500 Sixdays

14188T6801

$2,133.16

3

HH collar screw M8x25

0025080256

$2.05

4

HH collar screw M8x30

0025080306

$3.08

5

HH collar screw M8x35 TX40

0025080356

$4.11

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

32

BOTTOM TRIPLE CLAMP CPL.

78101132122

$206.07

34

TOP TRIPLE CLAMP X=22MM

78101034022

$148.19

36

AXLESCREW M20X1.5 SW17

70009082000

$9.44

38

HANDLEBAR CLAMP 28MM

77201038000

$25.05

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

Clamp for brake hose

77701085100C1

$2.05

86

STEERING HEAD COVER

78101086000

$6.07

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

Fork protection kit EXC 21

77701094100C1E

$51.51

97

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable

98

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable
