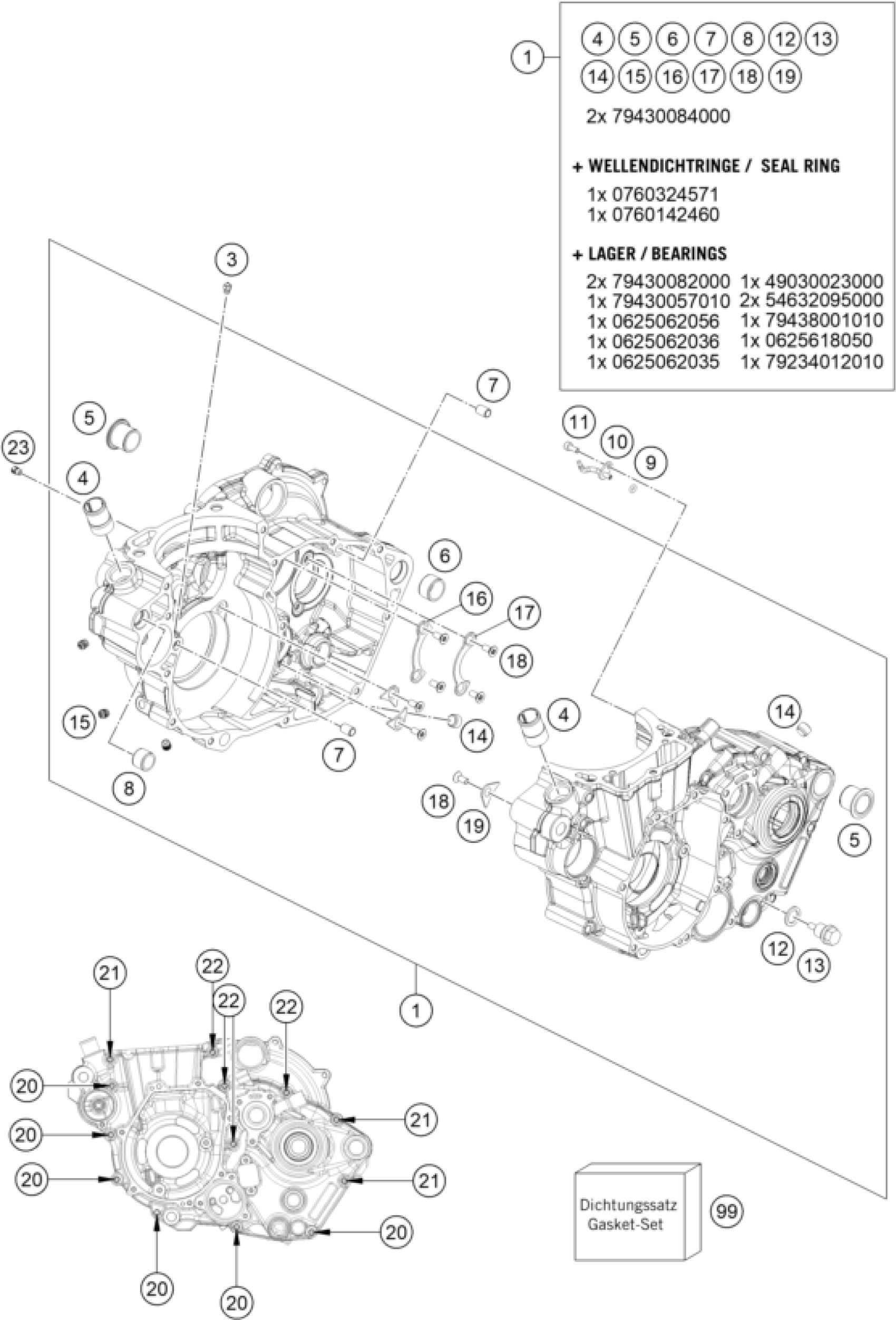

KTM 500 XCF-W 2020 ENGINE CASE Diagram

#

Description
Price

1

Engine case cpl.

79430000144

$1,244.66

3

oil jet 70 M5

60030063070

$8.59

4

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

5

CASE BUSH

75030010100

$12.33

6

DOWEL 21X12 03

54830027000

$5.23

7

dowel sleeve 6x8x11.5

59030023000

$1.49

8

DOWEL 17 X 13 X 12

51030026100

$6.44

9

O-RING 3,5X2,00 NBR

0770035020

$1.49

10

OIL JET ANGLED 70

81230064000

$12.15

11

AH.SCREW DIN0912-M 4X10

0912040103

$2.05

12

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

13

oildrain plug with magnet

58030021100

$11.30

14

pipe plug DIN 906 M10x1

0906100100

$4.11

15

SCREW PLUG

59030296000

$6.26

16

TAB WASHER BEARING MAIN SHAFT

78033032000

$5.51

17

TAB WASHER BEARING COUNT.SHAFT

78033132000

$5.23

18

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

19

RETAINING PLATE F. CS BEARING

75030085000

$1.49

20

HH collar screw M6x60 TX30

0025060606

$3.08

21

HH COLLAR SCREW M6X70 TX30

0025060706

$3.08

22

HH COLLAR SCREW M6X80 TX30

0025060806

$2.05

23

oil jet 50 M5

60030063050

$9.44

99

GASKET SET 450 SX-F

79430099000

Unavailable
