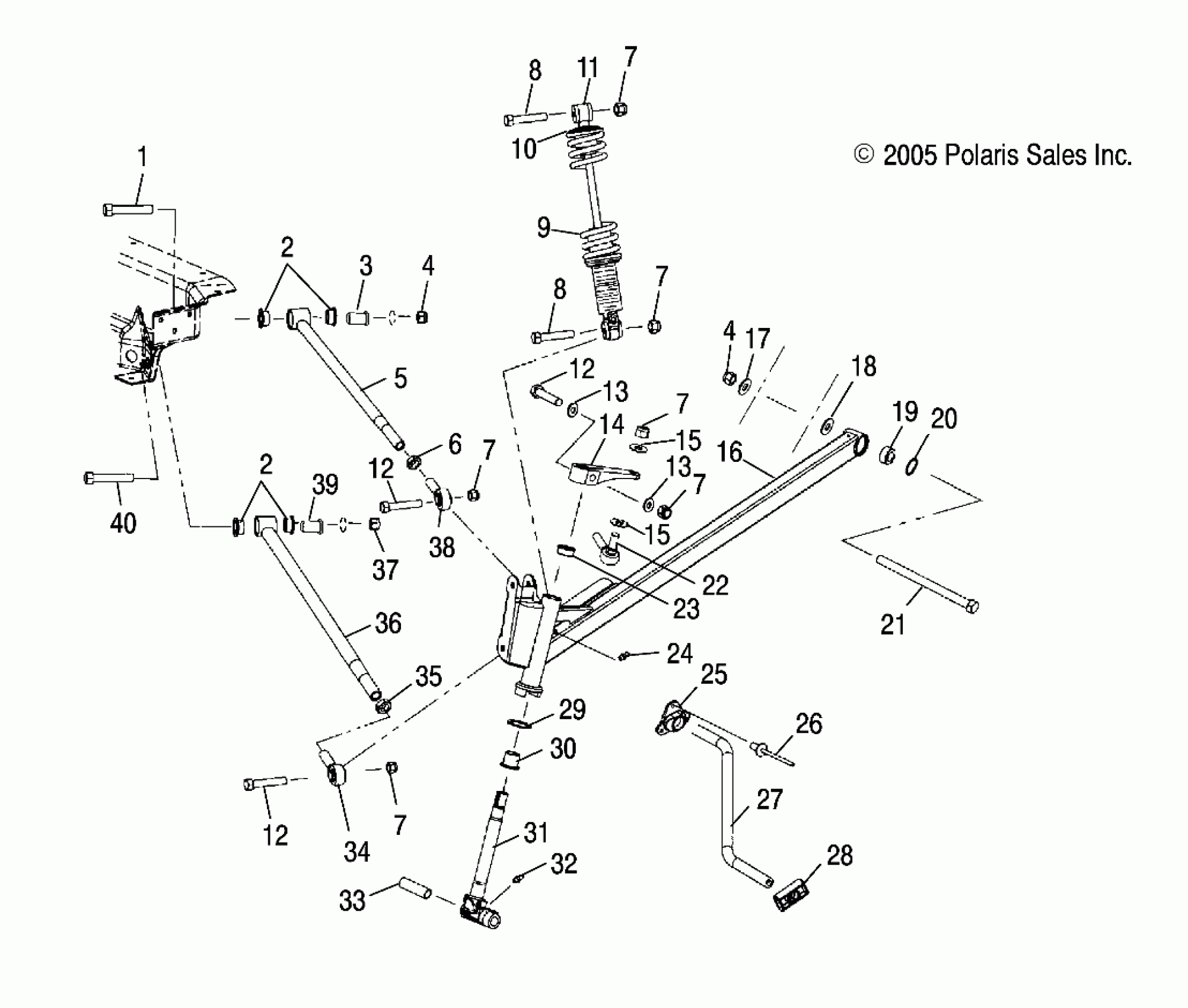

Polaris 500 XC SP - S07NP5CS/CE SUSPENSION, FRONT - S0NP5CS/CE (4997259725A12) Diagram

#

Description
Price

1

Bolt

7517980

$7.99

2

Bushing, Pivot, Inner

5434036

$14.99

2

Bushing, Pivot, Inner

5434036

$14.99

3

Bushing, Shoulder

5132779

$11.99

4

Nut, Nylok

7547066

$1.59

4

Nut, Nylok

7547066

$1.59

5

Rod, Radius, Upper, Black

1820679-067

$104.99

6

Nut, Jam

7542520

$2.39

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515433

$1.59

8

Screw

7515433

$1.59

9

Spring, Compression, White

7041950-133

Unavailable

10

Retainer, Spring, Slotted

5630580

Unavailable

11

Shock, IFS, IFP

7043082

Unavailable

12

SCREW

7517583

$4.35

12

SCREW

7517583

$4.35

12

SCREW

7517583

$4.35

13

WSHR-.813X.406X.105-Y

7555832

$2.39

13

WSHR-.813X.406X.105-Y

7555832

$2.39

14

Arm, Steering

5132728

$79.99

15

Washer, Flat

7555797

$3.99

15

Washer, Flat

7555797

$3.99

16

Asm., Trailing Arm, CLoud Silver, LH [Incl. 19,20]

1821165-385

Unavailable

16

Asm., Trailing Arm, Cloud Silver, RH [Incl. 19,20]

1821166-385

Unavailable

17

WASHER, FLAT

7555820

$3.99

18

Cup, Mount, Trailing Arm

5132364

$20.22

19

Bearing, Spherical

7061042

$31.99

20

Ring, Retaining

7710437

$3.19

21

Screw

7512099

$19.99

22

Rod End, RH

7061057

$48.56

23

BUSHING, FLANGE

3573909

$2.39

24

Fitting, Lubrication

7080433

$1.49

25

Bushing, Torsion Bar

5433234

$23.99

26

Rivet

7621452

$1.49

27

Bar, Torsion, Black

5244415-067

Unavailable

28

Slide, Torsion Bar

5434369

Unavailable

29

Bushing

7556509

$1.59

30

BUSHING, FLANGED

3574208

$3.19

31

Shaft, Spindle w/Steering Stop, Black

6230225-067

$219.99

32

Fitting, Lubrication

7080306

$3.19

33

BUSHING, PIVOT

5010158

$19.99

34

Rod End, Radius

7061060

$48.56

35

Nut, Jam

7542711

$2.39

36

Rod, Radius, Lower, Black

1820677-067

$104.99

37

Nut, Nylok

7547065

$3.99

38

Rod End, Radius

7061061

$48.56

39

Bushing, Shoulder

5132780

$7.99

40

Bolt

7512684

Unavailable
