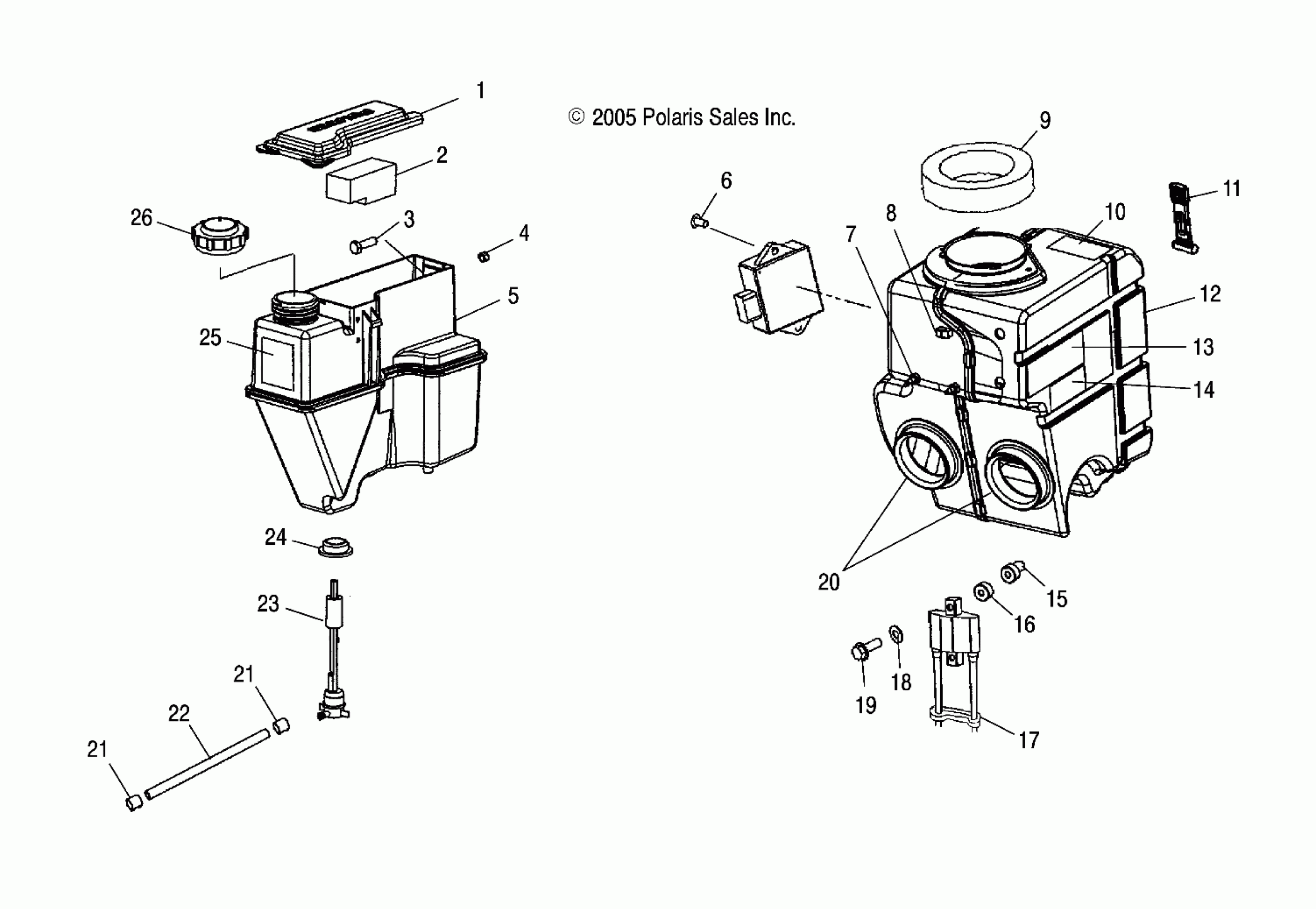

Polaris 500 XC SP - S07NP5CS/CE OIL TANK/AIR BOX - S07NP5CS/CE (4997259725C02) Diagram

#

Description
Price

1

Cover, Tool Box

5434089

$27.19

2

Foam

5812209

Unavailable

3

Screw

7512297

$5.59

4

Nut, Nylok

7542122

$1.49

5

Asm., Oil Tank w/Sending Unit [Incl. 1,23]

1253539

Unavailable

5

Bottle, Oil/Tool Box

1261127

Unavailable

6

Screw

7512095

$4.79

7

Fitting, Hose

7052127

$3.19

8

Clip

7670102

$2.39

9

Foam, Chimney

5811983

$20.22

10

Decal, Caution

7075351

Unavailable

11

STRAP-AIRBOX TOP

5433150

$24.27

12

Asm., Air Silencer [Incl. 20 & Decals]

1253498

$155.56

13

Decal, Belt Removal

7171037

Unavailable

14

Decal, Greasing

7073426

$7.27

15

Nut, Well

7547103

$8.79

16

Washer, Nylon

7555932

$2.39

17

Clip, Ignition Cable

7080471

$3.59

18

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

19

Screw

7517610

$1.59

20

Boot, Carburetor

5412169

Unavailable

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

Line, Fuel

8450003-1525

Unavailable

23

Sender, Oil w/Front Terminals

4010660

$60.70

24

Grommet, Oil Sender

7052305

$4.84

25

Decal, Oil, VES Gold

7173616

Unavailable

26

Cap, Oil

1240094

$36.41
