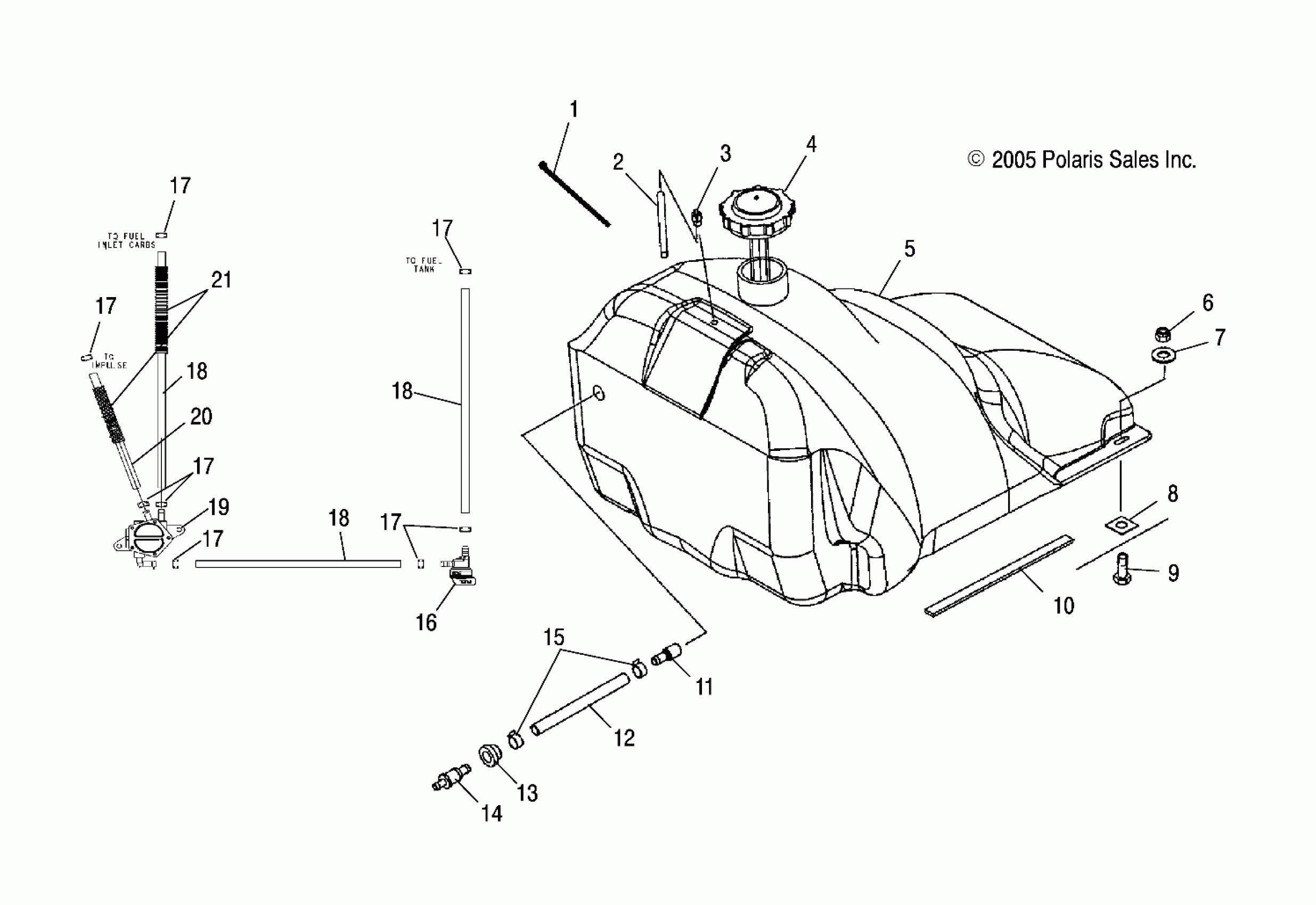

Polaris 500 XC SP - S07NP5CS/CE FUEL SYSTEM - S07NP5CS/CE (4997259725A05) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

LINE, FUEL

8450061-600

Unavailable

3

Fitting, 90 Degree

7052095

$4.79

4

Cap, Fuel w/Gauge

2520323

Unavailable

5

Asm., Fuel Tank [Incl. 3,11-15]

2520262

$239.99

6

Nut, Nylok

7542122

$1.49

7

WASHER, FLAT

7555960

$3.99

8

Nut, Speed

7670021

$6.99

9

BOLT, CARRIAGE

7512193

$2.39

10

FOAM-SEAL,REAR COOLER

5810947

$4.03

11

Pickup, Fuel, w/Mesh

7052215

$49.99

12

Line, Fuel

8350020-600

Unavailable

13

Grommet

5435941

$7.60

14

Fitting, Straight

7052269

$24.99

15

RING, COMPRESSION

7080768

$4.84

16

Asm., Valve, Fuel

1253424

$44.99

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

Line, Fuel

8350017-160

Unavailable

18

Line, Fuel

8350017-160

Unavailable

18

Line, Fuel

8350017-160

Unavailable

19

Pump, Fuel

2520275

$111.99

20

Line, Fuel

8450040-600

Unavailable

21

TUBING, CONVOLUTED

8360052-305

Unavailable
