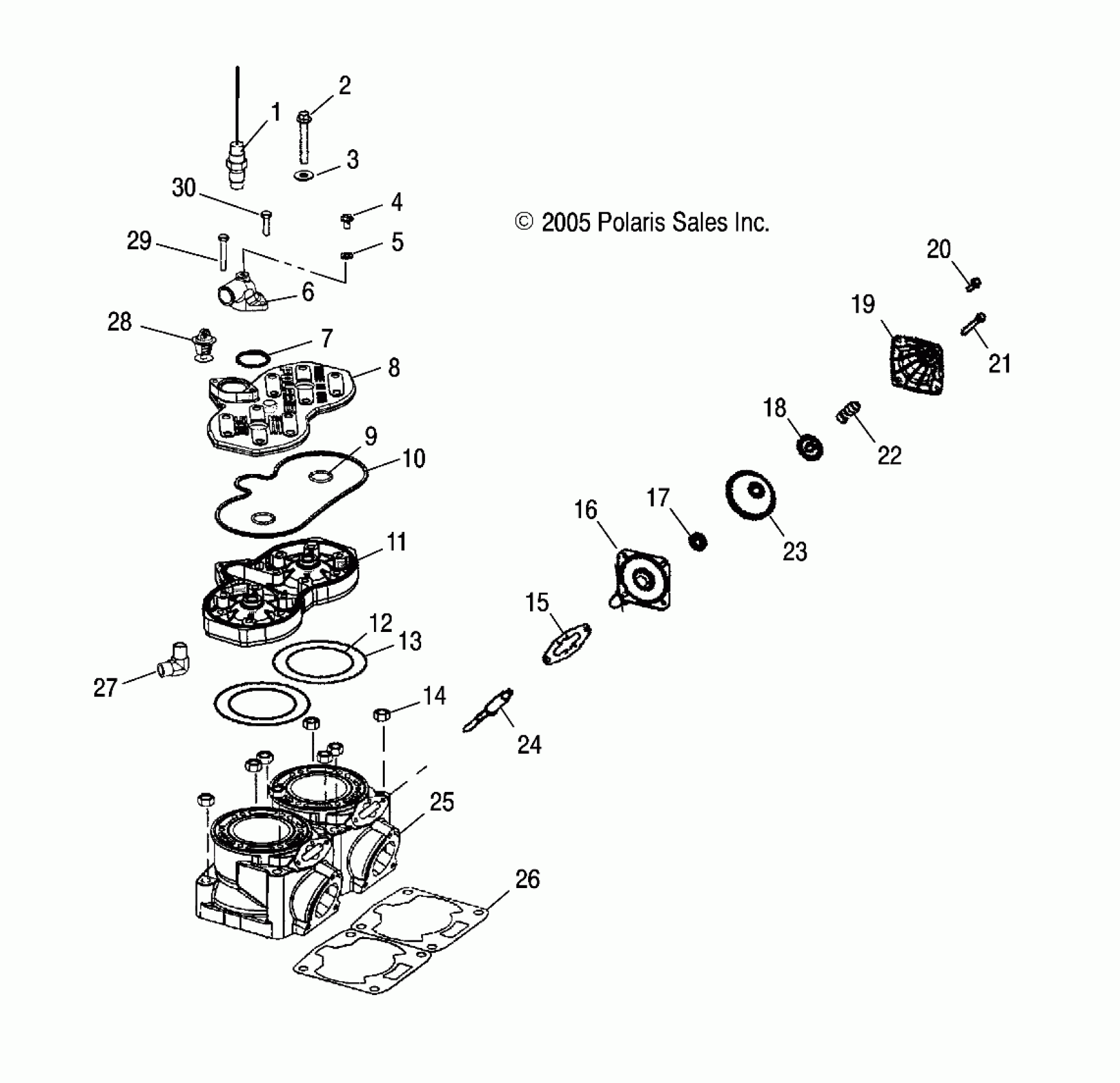

Polaris 500 XC SP - S07NP5CS/CE ENGINE, CYLINDER - S07NP5CS/CE (4997259725C07) Diagram

#

Description
Price

1

Sensor, Thermistor

4010398

$36.41

2

SCREW

7517281

$8.99

3

Washer

7556082

$7.19

4

SCREW

7517679

$13.59

5

WASHER, FLAT

7555998

$1.49

6

Cover, Thermostat

5134756

Unavailable

7

O-Ring

5411521

$24.19

8

Cover, Head, 500 Liberty, Black

5631788-329

$156.79

9

O-RING

5411411

$1.49

10

Seal

5411465

$32.37

11

Head, Cylinder

3021699

$236.17

12

O-Ring

5411199

$10.51

13

O-RING

5411359

$15.99

14

NUT

7547013

$1.99

15

Gasket, Base to Cylinder Exhaust Valve

5812350

$6.46

16

Asm., Base, Exhaust Valve, Dome

1202216

Unavailable

17

WASHER, BELLOWS, EXHAUST VALVE, DOME

5135163

$4.79

18

Cap/Nut, Bellows, Exhaust Valve

5631662

$33.87

19

ASM., HOUSING W/BUSHING

1202640

$15.99

20

SCREW

7516820

$5.59

21

SCREW

7517932

$3.99

22

Spring, Compression, Pink/Yellow

7041786-11

Unavailable

23

Bellows, Exhaust Ribs

5412733

$44.51

24

Valve, Guillotine, 500

5135159

$144.99

25

Cylinder

3021334

$669.99

26

Gasket, Cylinder Base

5812494

$24.99

27

Fitting

7052234

$39.99

28

Thermostat

7052258

$48.56

29

Screw

7517950

$5.59

30

SCREW

7516822

$2.39
