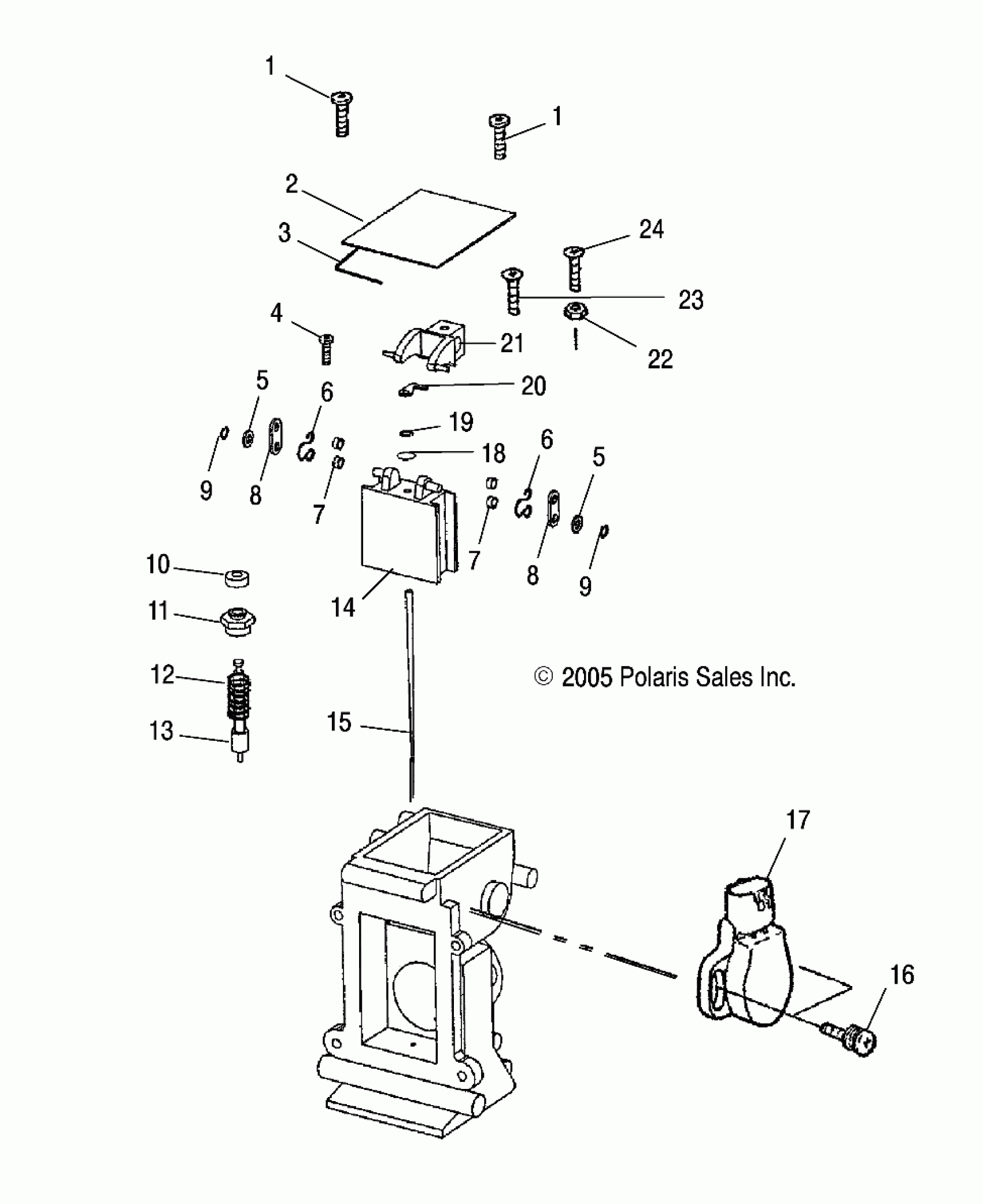

Polaris 500 XC SP - S07NP5CS/CE ENGINE, CARBURETOR, UPPER - S07NP5CS/CE (49SNOWCARBUPPER600HO) Diagram

#

Description
Price

-

Asm., Carburetor

1253444

Unavailable

1

Screw

3130951

$3.99

1

Screw

3130951

$3.99

2

Cap, Top

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

Washer, Packing

3130846

$4.79

5

Washer, Packing

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

Cap, Rubber

3130831

$7.27

11

Holder, Guide

3130830

$32.37

12

Spring

3130829

$12.94

13

Asm., Plunger

3130828

$32.37

14

Valve, Piston, 1.5

3130940

$104.99

15

Needle, Jet, J8-9DFH06-57

3131253

Unavailable

16

Screw [MAG Side]

3131010

$4.79

17

Asm., Sensor [MAG Side]

3131009

$259.03

18

Packing

3130867

$5.65

19

E-Ring

3130868

$8.89

20

Plate

3130843

$8.89

21

Asm., Lever

3130855

$64.75

21

Asm., Lever

3130849

$64.75

22

Ring

3130848

$32.37

23

Screw

3130854

$3.19

24

Screw

3130850

$4.79
