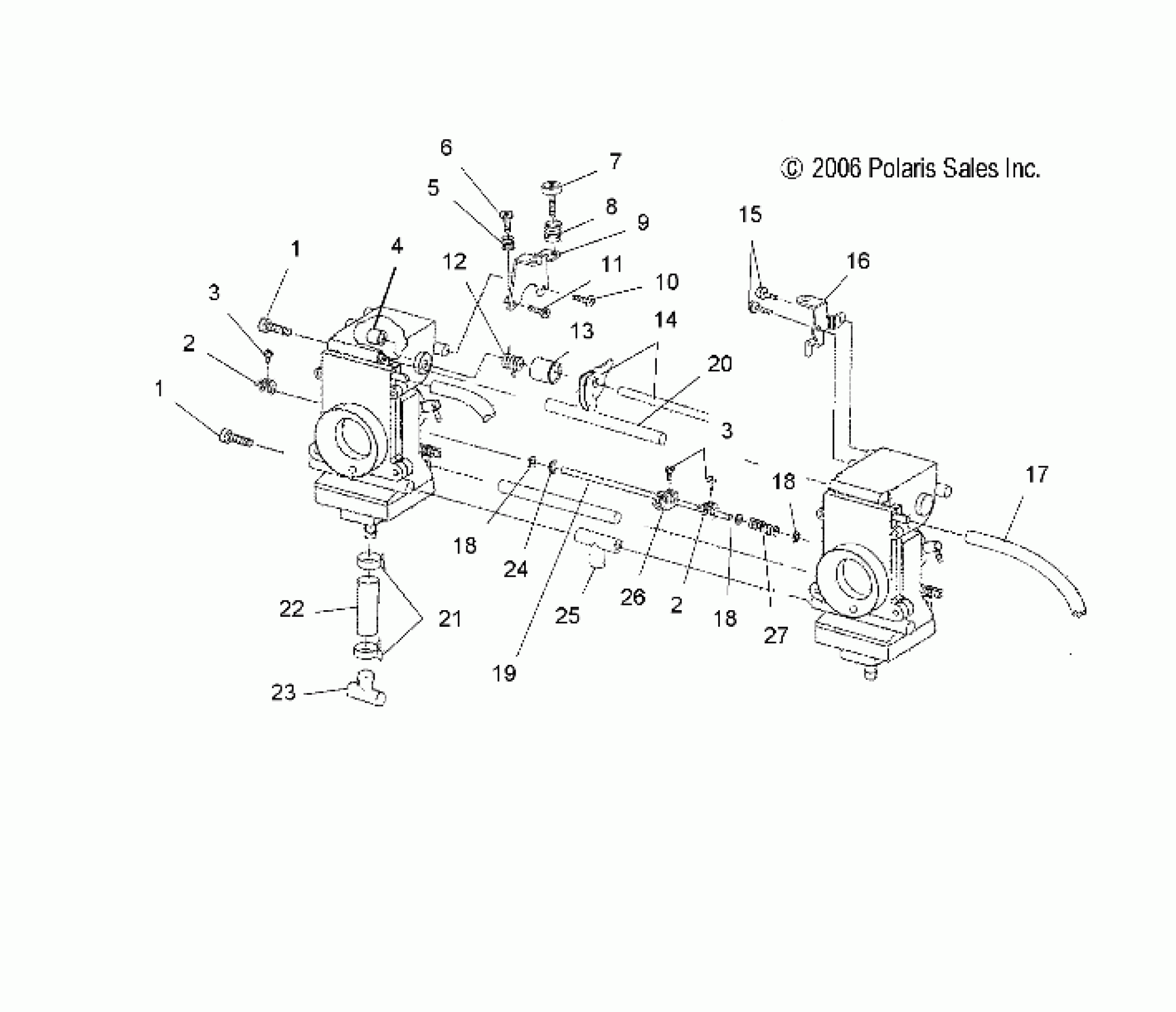

Polaris 500 XC SP - S07NP5CS/CE ENGINE, CARBURETOR - S07NP5CS/CE (49SNOWCARBURETOR600HO) Diagram

#

Description
Price

-

Asm., Carburetor

1253444

Unavailable

1

Bolt

3130834

$27.99

1

Bolt

3130834

$27.99

2

Lever

3130832

$24.27

2

Lever

3130832

$24.27

3

Screw

3130833

$3.99

3

Screw

3130833

$3.99

4

Ring

3140032

Unavailable

5

Spring

3130817

$6.46

6

Screw

3130816

$6.39

7

Adjuster

3131285

$24.27

8

Spring

3131284

$8.89

9

Bracket

3131380

$36.41

10

Screw

3130810

$3.19

11

Screw

3130809

$3.19

12

Spring

3130950

$36.41

13

Ring

3130853

$7.27

14

Asm., Shaft

3131370

$121.41

15

Screw

3130821

$7.19

16

Bracket

3130820

$40.46

17

Hose

3130826

$9.70

18

Packing, Shaft

3130842

$2.83

18

Packing, Shaft

3130842

$2.83

18

Packing, Shaft

3130842

$2.83

19

Shaft

3130840

$28.32

20

Ring

3130852

$20.22

21

HOSE CLAMP, RED

7080003

$1.49

22

Line, Fuel

8350017-600

Unavailable

23

Plug, Trap

5431893

$12.94

24

E-Ring

3130839

$4.84

25

Asm., Nipple

3131374

$36.41

26

Lever, Starter

3130819

$32.37

27

Spring, Shaft

3130841

$7.27
