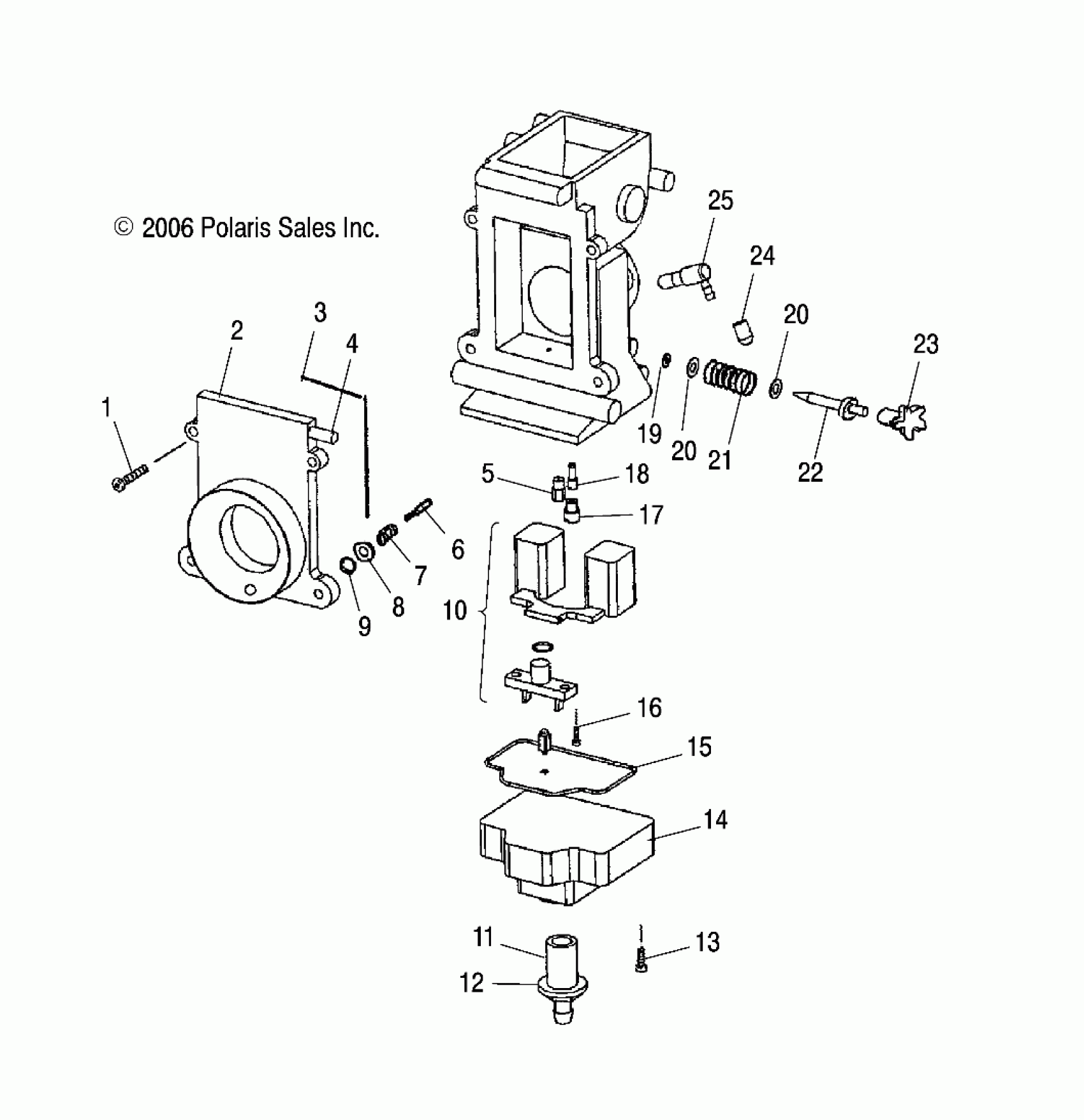

Polaris 500 XC SP - S07NP5CS/CE ENGINE, CARBURETOR, LOWER - S07NP5CS/CE (49SNOWCARBLOWER500XCSP) Diagram

#

Description
Price

-

Asm., Carburetor

1253444

Unavailable

1

Screw

3130825

$3.19

2

Asm., Funnel

3131335

$53.59

3

O-Ring, Air Funnel, Long

3131356

$16.17

4

Pin

3130808

Unavailable

5

Jet, Main, #410

3130599

$7.27

6

Screw, Air

3131336

Unavailable

7

Spring

3131371

Unavailable

8

Washer

3131372

$5.59

9

O-Ring

3130522

$5.65

10

Asm., Float

3130859

$94.99

11

Bolt, Drain

3131248

Unavailable

12

O-Ring

3130863

$2.41

13

Screw

3130824

$3.19

14

Body, Float

3130858

$119.99

15

O-Ring

3130861

$12.13

16

Screw

3130860

$8.79

17

Jet, Pilot, #45

3130068

$8.89

18

Jet, Starter, #145

3130769

$8.89

19

Packing

3130835

$2.41

20

Washer

3130837

$3.19

20

Washer

3130837

$3.19

21

SPRING

3130836

$7.27

22

Adjuster

3130987

$20.22

23

Cap

3130986

$9.70

24

CAP

3130479

$14.56

25

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
