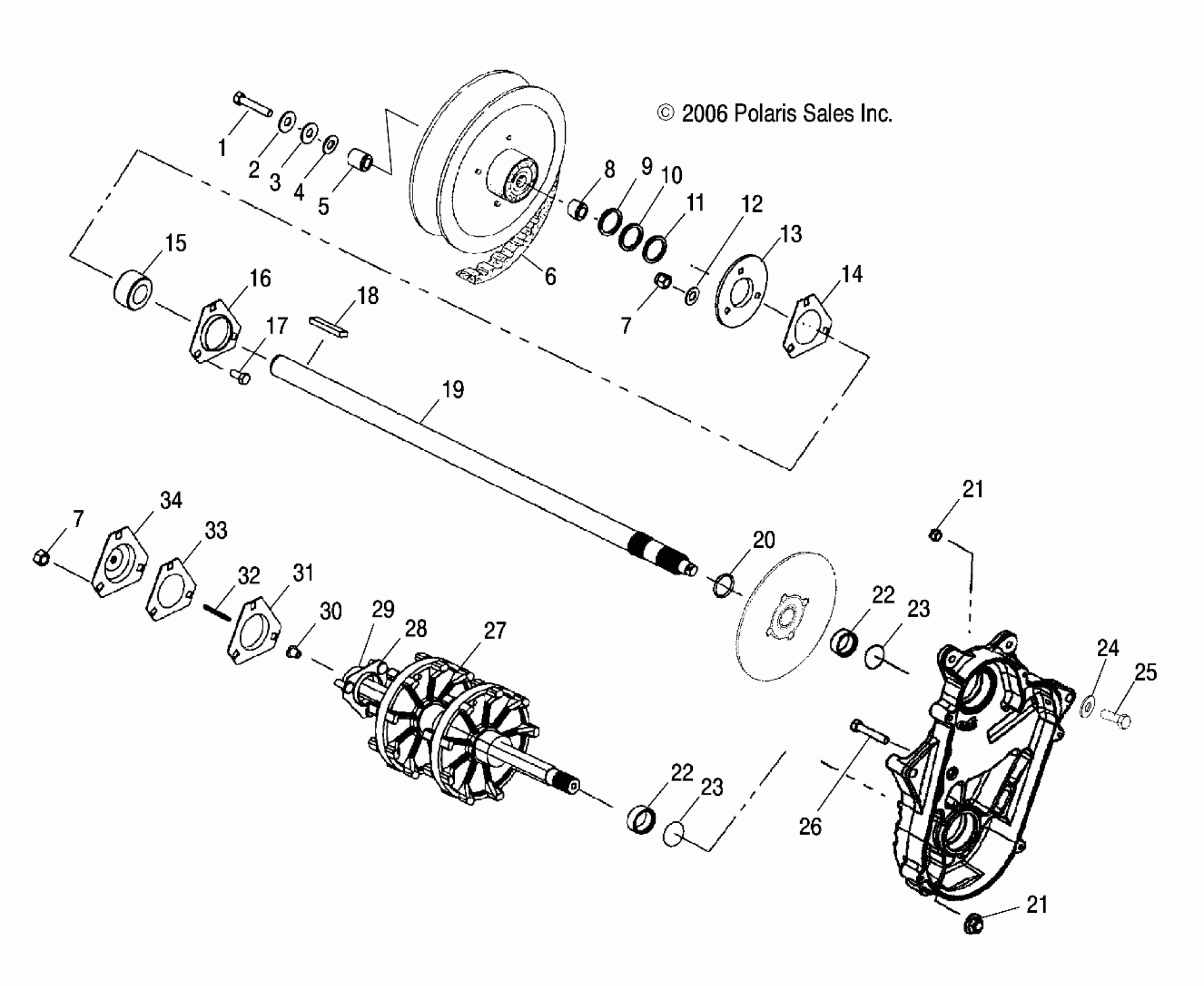

Polaris 500 XC SP - S07NP5CS/CE DRIVE TRAIN - S07NP5CS/CE (49SNOWDRIVETRAIN500XCSP) Diagram

#

Description
Price

1

Bolt

7515369

$4.79

2

WASHER, FLAT

7555701

$3.99

3

Washer

7555957

Unavailable

4

Washer, Flat

7555734

Unavailable

5

Spacer

5135621

$7.99

6

Belt, Drive

3211080

$139.99

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Spacer

5020837

$24.99

9

WASHER

7555917

$2.39

10

WASHER

7555864

Unavailable

11

Bushing

7556509

Unavailable

12

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

13

Fitting, Lubrication

7080561

$4.79

13

Flangette w/Grease Fitting

5241359

$32.37

14

Gasket, Jackshaft

5811095

$2.41

15

BEARING

3514448

Unavailable

16

FLANGETTE

5222751

$16.44

17

Bolt, Carriage

7512377

$4.79

18

Key

7721128

$10.39

19

Asm., Jackshaft [Incl. 14,19]

1332457

$162.84

20

RING, RETAINING

7710422

$3.99

21

Nut, Flange

7542423

$3.99

21

Nut, Flange

7542423

$3.99

22

SLEEVE, SEAL

5020588

$23.99

22

SLEEVE, SEAL

5020588

$23.99

23

O-RING

5410613

$1.99

23

O-RING

5410613

$1.99

24

Washer, Wrought

7558403

$4.79

25

Screw

7518002

$3.03

26

Bolt, Carriage

7515428

$4.79

27

Asm., Drive Shaft [Incl. 27,28]

1590346

$411.49

28

ASM., FLANGETTE W/SCREWS

1012945

$114.99

29

BEARING

3514525

$31.99

30

Bushing, Speedometer, Metal

3280019

$11.99

31

Flangette

5243529

$13.75

32

Key, Speedometer, Square

3280017

$13.75

33

Gasket, Drive Adaptor

5830012

$2.41

34

Fitting, Lubrication

7080433

$1.49

34

Adaptor w/Zerk, Drive

3280116

$101.17
