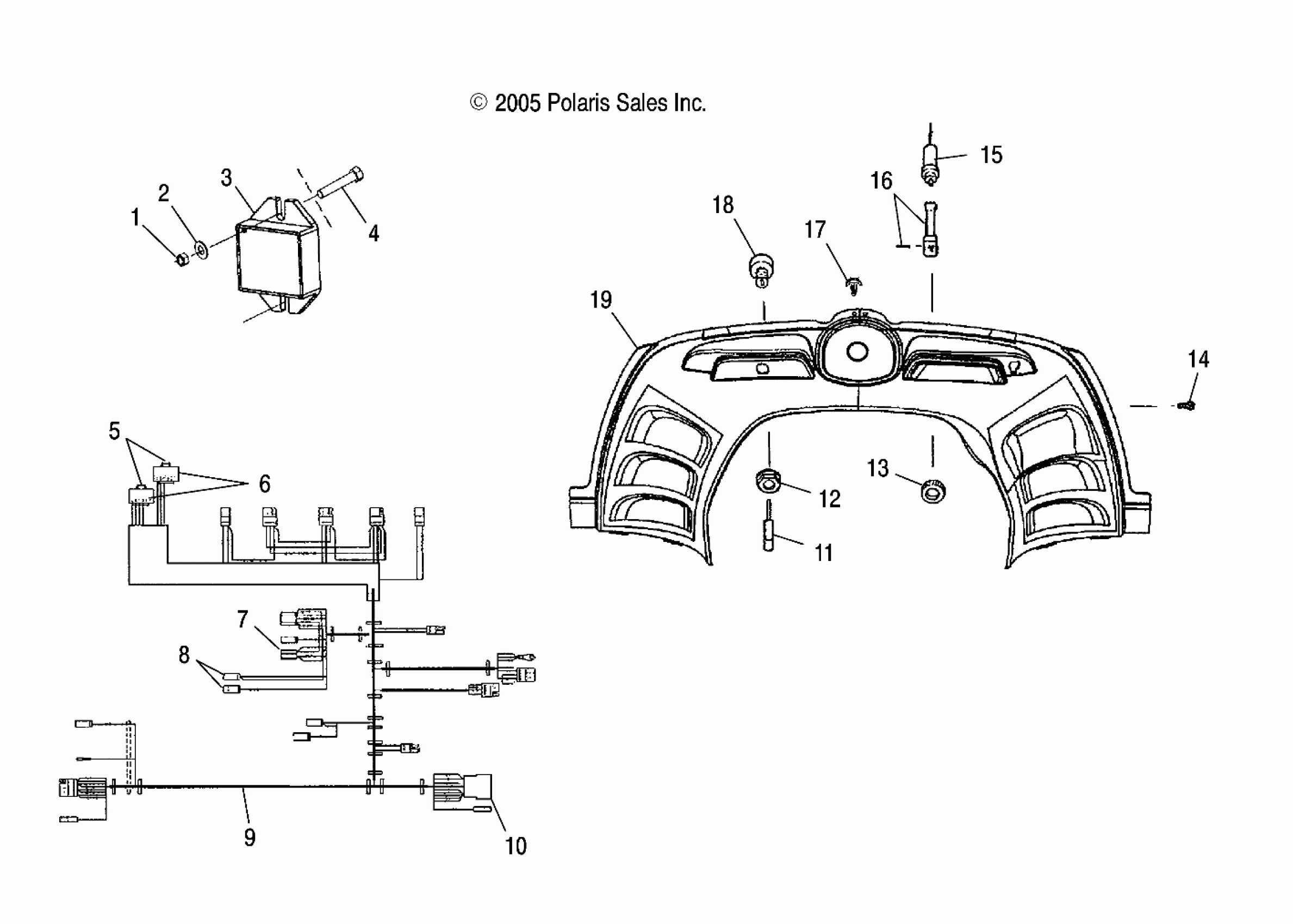

Polaris 500 XC SP - S07NP5CS/CE CONSOLE - S07NP5CS/CE (4997259725A13) Diagram

Nut, Nylok

7541925

$1.49

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

Regulator, 14.3V

4010793

$101.17

Screw

7512031

$2.23

Housing, Connector

4010193

$8.79

Socket

4010192

Unavailable

Housing, Pack

4020063

$3.19

Housing, 1 Circuit

4020153

Unavailable

Harness, Main

2461146

Unavailable

Housing

4020057

$3.51

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

Nut, Ignition

7547035

$8.79

Nut, Choke

5432944

$8.79

Screw

7515199

$1.49

Cable, Choke [Incl. 13,16]

7081354

$48.56

Lever, Choke [Incl. Pin]

5432943

Unavailable

CLIP-PLASTIC DART, NYLON

7670088

$1.59

Kit, Ignition Switch

2201614

$89.03

Console

5434134

Unavailable
