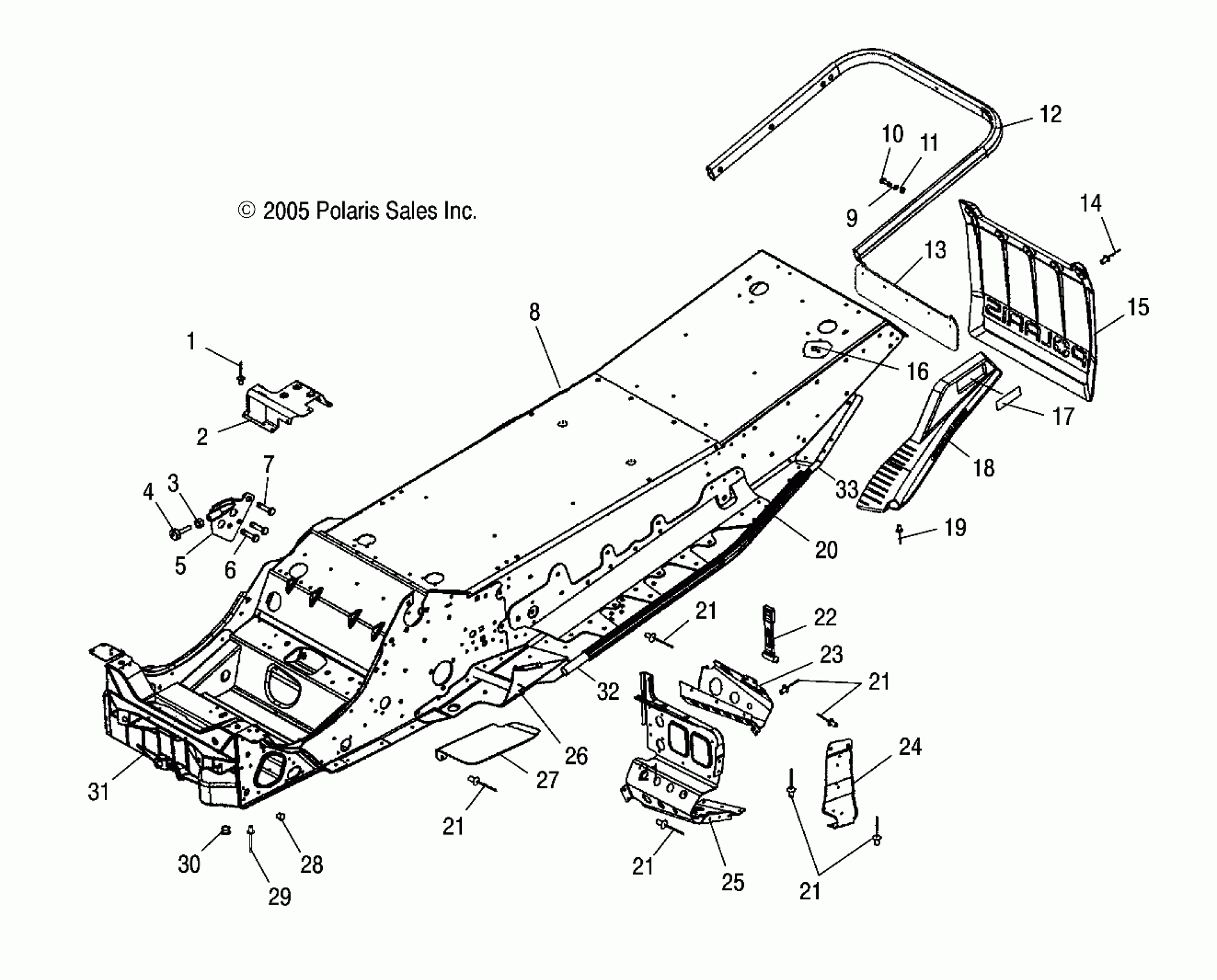

Polaris 500 XC SP - S07NP5CS/CE CHASSIS - S07NP5CS/CE (49SNOWCHASSIS500XCSP) Diagram

#

Description
Price

1

Rivet

7621432

$1.49

2

Bracket, Oil Tank/Hose Support

5246330

$13.19

3

NUT

7542404

$1.59

4

Stop, Torque

3021104

$20.22

5

Stop, Torque

1013379

Unavailable

6

Screw

7517854

$5.59

7

SCREW

7517632

$5.59

8

Asm., Chassis, Natural [Incl. 26,31]

1014067-309

$1,299.99

9

WASHER, SPRING LOCK

7552801

$1.59

10

Bolt

7512232

$1.49

11

Washer, Flat

7558301

$1.49

12

Asm., Bumper, Rear

2632165-309

Unavailable

13

Backer, Snow Flap

5812430

Unavailable

14

RIVET

7621418

$1.49

15

Flap, Snow, Edge, Black

5434847-070

$139.99

16

Screw

7517441

$2.39

17

ASM., REFLECTOR, RED

2670133

$5.75

18

Asm., Skirt, Snow, Reflector, Black, LH

2632443-070

$64.75

18

Asm., Skirt, Snow, Reflector, Black, RH

2632444-070

$55.99

19

RIVET

7621472

$1.49

20

Grip, Tunnel, RH

5135318

$39.62

20

Grip, Tunnel, LH

5135317

$39.62

21

RIVET-3/16-.090-.290

7661637

Unavailable

21

RIVET-3/16-.090-.290

7661637

Unavailable

21

RIVET-3/16-.090-.290

7661637

Unavailable

21

RIVET-3/16-.090-.290

7661637

Unavailable

21

RIVET-3/16-.090-.290

7661637

Unavailable

22

STRAP-AIRBOX TOP

5433150

$24.27

23

Mount, Console, Toe Clip, LH

5245457

Unavailable

23

Mount, Console, Toe Clip, RH

5245458

Unavailable

24

Support, Footrest, LH

5246310

$19.83

24

Support, Footrest, RH

5246311

$32.37

25

Footrest, LH

5245288

Unavailable

25

Footrest, RH

5247205

Unavailable

26

Kit, Mount, Trailing Arm, LH

2202059

$213.00

26

Kit, Mount, Trailing Arm, RH

2202598

$124.99

27

Guard, Belt

5246066

Unavailable

28

PLUG, HOLE

7080416

$5.65

29

Rivet

7661130

$1.49

30

Plug, Hole

7081076

$3.22

31

Bulkhead, Front

5132292

$115.99

32

Tube, Tunnel Reinforce, Front

5245431

$10.32

33

Tube, Tunnel Reinforce, Rear

5245432

Unavailable
