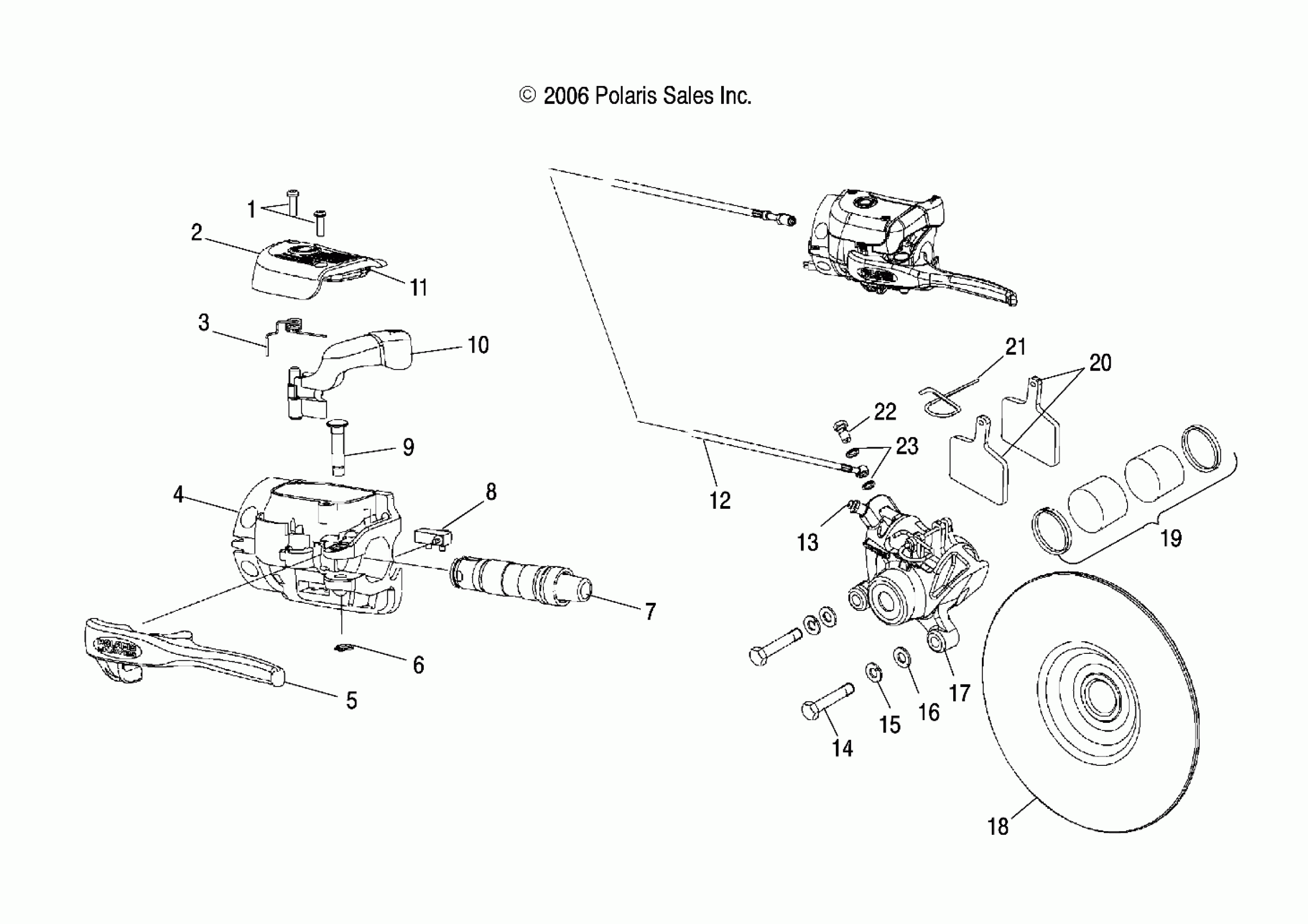

Polaris 500 XC SP - S07NP5CS/CE BRAKE SYSTEM - S07NP5CS/CE (49SNOWBRAKE500XCSP) Diagram

#

Description
Price

-

Kit, Asm., Master Cylinder [Incl. 1-7]

2202785

$266.65

1

Kit, Cover Screw

2201254

$19.99

2

Kit, Cover Assembly [Incl. 1,11]

2202837

$89.03

3

Kit, Park Lever Spring

2201250

$24.27

4

Kit, Reservoir [Incl. 6,9]

2202784

$93.08

5

Kit, Lever [Incl. 6,9]

2201943

$52.60

6

Kit, Snap Ring

2201945

$8.79

7

Kit, Cartridge

2202783

Unavailable

8

Kit, Switch, Stoplight

2202786

$97.13

9

Kit, Pivot Pin w/Snap Ring [Incl. 6]

2201946

$24.27

10

Kit, Park Lever and Spring

2201251

$44.51

11

GASKET

-------

Unavailable

12

Kit, Hose

2202788

Unavailable

13

Kit, Bleeder Fitting

2202205

$36.41

14

Screw

7515534

$4.79

15

Washer, Spring Lock

7552603

$1.49

16

Washer

7556160

$3.99

17

Kit, Brake Caliper

2203009

$235.70

18

Kit, Brake Disc

2202493

Unavailable

19

Kit, Seal

2202204

$40.46

19

Kit, Piston/Seal

2202207

$93.08

20

Kit, Brake Pad, Type 94 [Incl. 21]

2202727

$79.99

21

Kit, Pin Retaining

2202206

$23.99

22

Kit, Banjo

2202789

$23.99

23

Kit, Washer [2 per]

2202790

Unavailable
