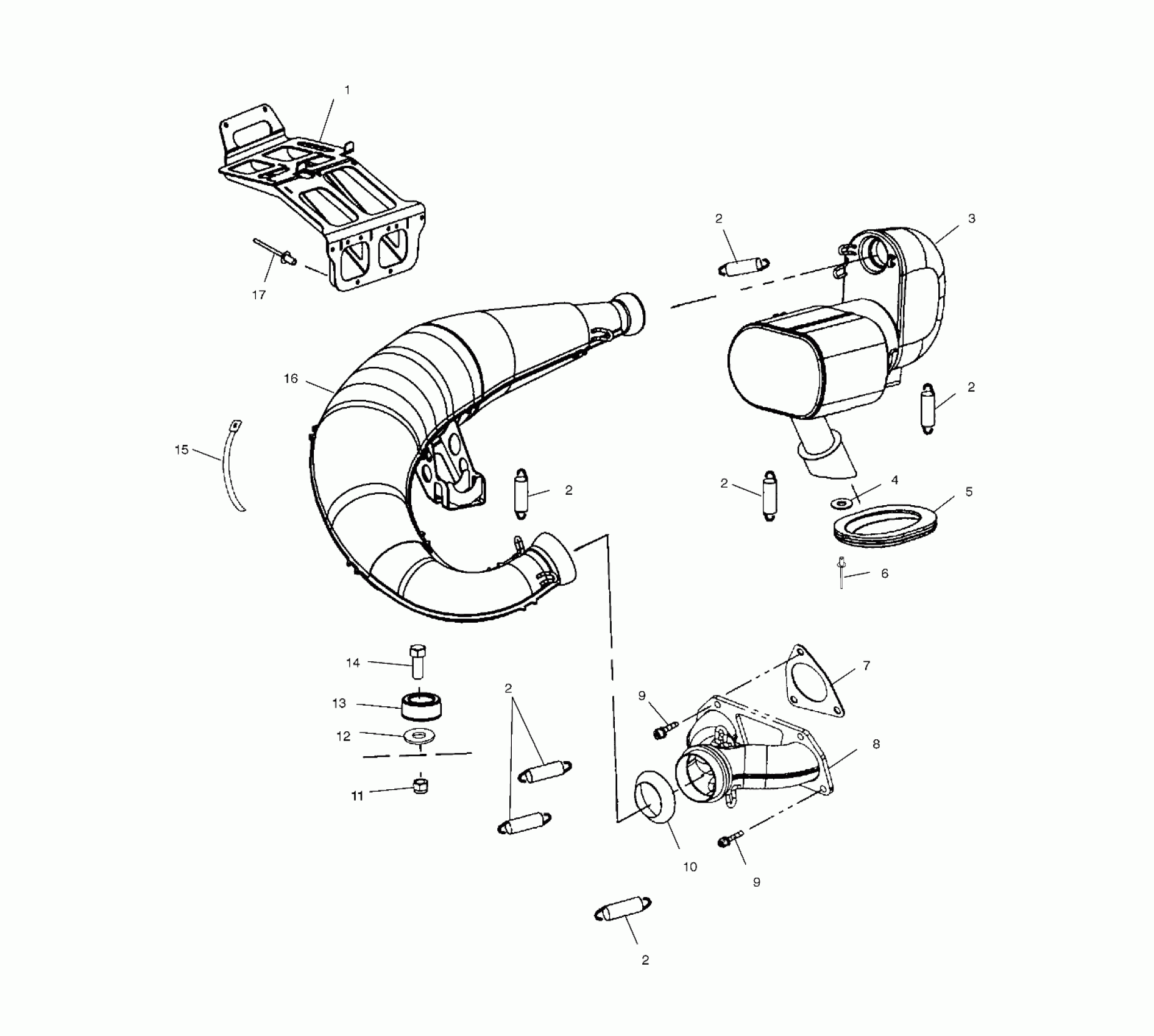

Polaris 500 XC SP - S02NP5CSA EXHAUST - S02NP5CSA/SB (4970697069C04) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261008-029

Unavailable

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

3

Resonator

1261130-029

$649.99

4

Washer

7555904

$1.49

5

Boot, Exhaust Outlet

5411684

Unavailable

6

RIVET

7621467

$1.49

7

Gasket, Exhaust

5811838

$8.89

8

Manifold

1261046-029

Unavailable

9

Screw

7517322

$2.39

9

Screw

7517322

$2.39

10

Seal, Exhaust

3610046

$36.41

11

Nut, Flange

7547180

$2.39

12

Washer

7555815

$3.99

13

Dampener, Vibration

5433576

$11.99

14

SCREW

7517935

$2.39

15

Clamp (.44 x 3.13)

7080739

$10.63

15

Clamp (.44 x 3.69)

7080740

$13.19

15

Clamp (.44 x 4.25)

7080741

$19.99

15

Clamp (.44 x 6.38)

7080742

$15.03

16

Asm., Tuned Pipe (Incl. Covers)

1261064

Unavailable

16

Cover, Tuned Pipe, Top

5243608

Unavailable

16

Cover, Tuned Pipe, Bottom

5243609

Unavailable

16

Matte, Sound, Top

5830176

Unavailable

16

Matte, Sound, Bottom

5830177

Unavailable

16

Pipe, Tuned

1261050

Unavailable

17

RIVET-3/16-.090-.290

7661637

$1.49
