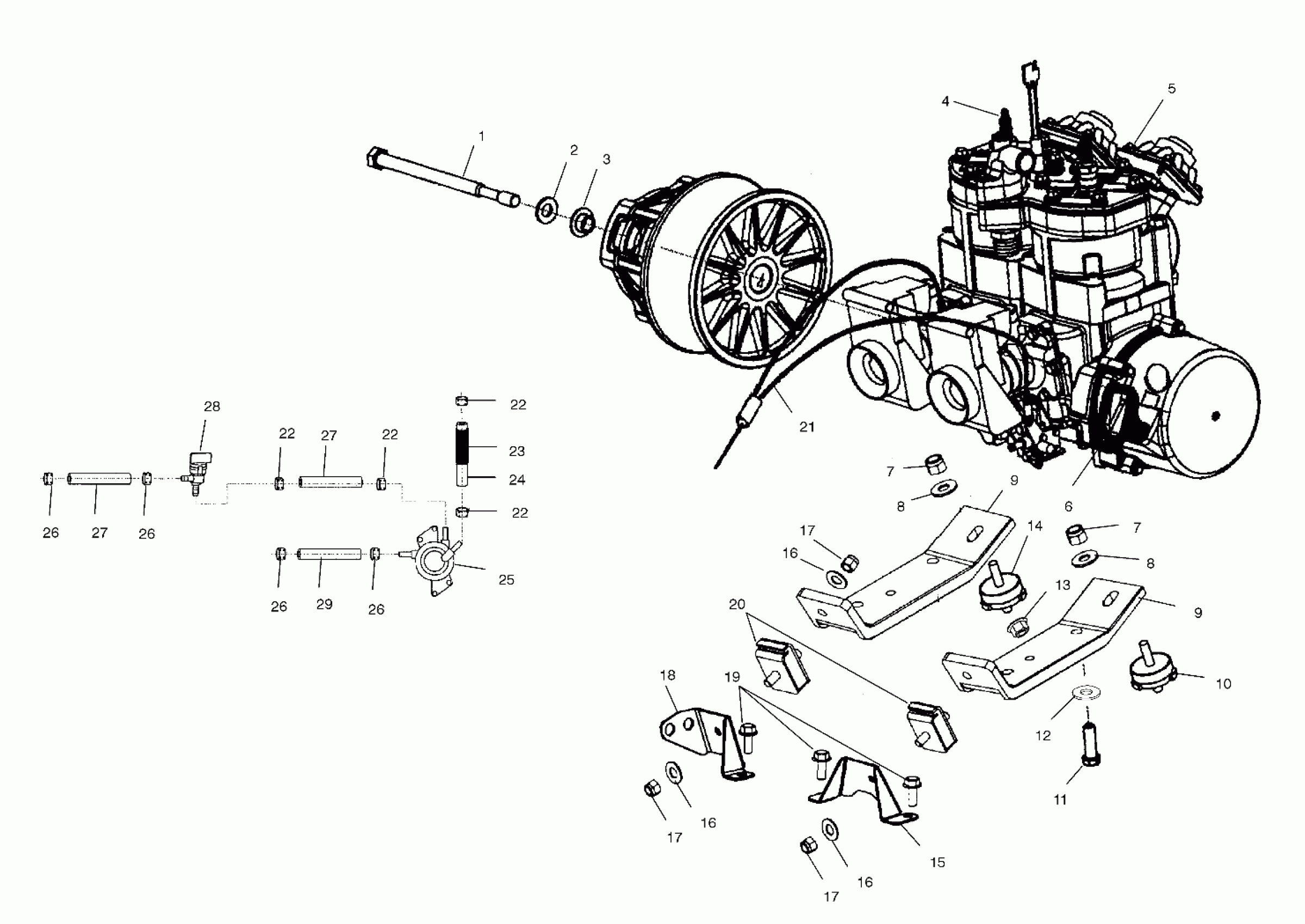

Polaris 500 XC SP - S02NP5CSA ENGINE MOUNTING - S02NP5CSA/SB (4970697069C05) Diagram

#

Description
Price

1

Screw

7517501

Unavailable

2

WASHER

7556003

$6.39

3

Washer

5131872

Unavailable

4

Spark Plug, RN57YCC, Champion

3070190

$3.99

5

Engine, S50-44-02 NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston and crankshaft assembly. Prior authorization is required for warranty

2201936

Unavailable

6

Handle, Recoil

5431499

Unavailable

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

7

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

8

Washer, Flat

7555893

$1.49

8

Washer, Flat

7555893

$1.49

9

Strap, Engine Mount, LH

5245465

$74.39

9

Strap, Engine Mount, RH

5245474

$37.11

9

Strap, Engine Mount, LH

5245465

$74.39

9

Strap, Engine Mount, RH

5245474

$37.11

10

Mount, Engine

3021290

Unavailable

11

Screw

7512539

$3.99

12

Washer, Spring Lock

7553101

$3.99

13

Nut, Flange

7547180

$2.39

14

Mount, Engine

3021220

Unavailable

15

Bracket, Engine Mount, RH

5245044

Unavailable

16

Washer

7555806

$1.49

16

Washer

7555806

$1.49

16

Washer

7555806

$1.49

17

NUT, FLEXLOC

7547008

$6.39

17

NUT, FLEXLOC

7547008

$6.39

17

NUT, FLEXLOC

7547008

$6.39

18

Bracket, Engine Mount, LH

1013397

$24.27

19

Screw

7517854

$5.59

20

Mount, Engine

3021206

$60.70

21

Cable, Throttle

7080867

$36.79

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

Tubing, Convoluted

8360052-15

Unavailable

24

Line, Fuel

8450040-600

Unavailable

25

Pump, Fuel

2520259

Unavailable

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

27

Line, Fuel

8350018-600

Unavailable

27

Line, Fuel

8350018-600

Unavailable

28

Valve, Fuel Shut-Off

7052249

$24.27

29

Line, Fuel

8350017-600

Unavailable
