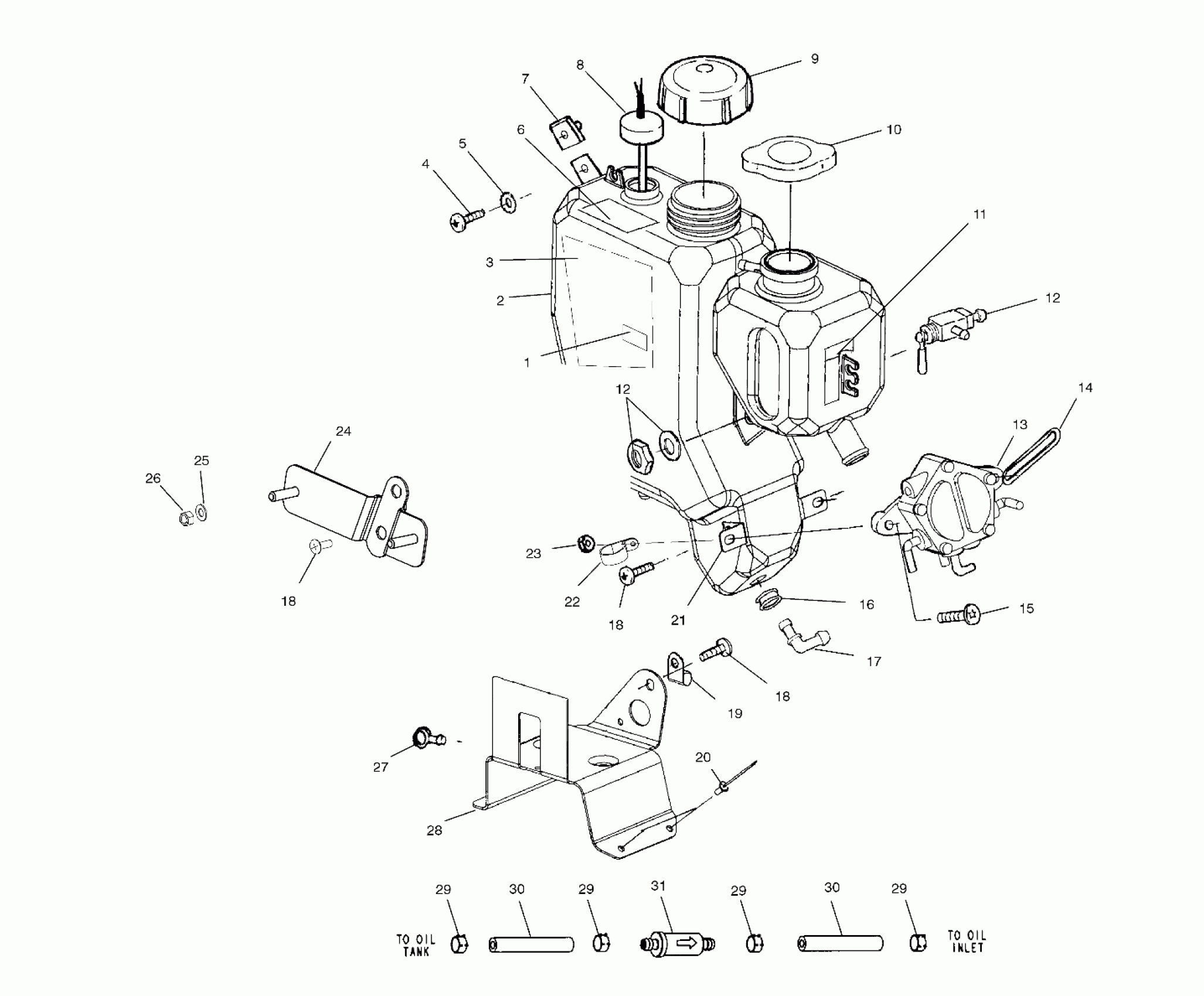

Polaris 500 XC SP - S00SP5CS OIL TANK - S00SP5CS (4954035403c002) Diagram

#

Description
Price

1

DECAL,FUEL SHUT-OFF

7077442

Unavailable

2

TANK,OIL W/FOIL,LIQ,ASM. Substituted by 1253353

1253316

Unavailable

3

FOIL,OIL TANK

5811934

Unavailable

4

BOLT(10)

7512276

$4.79

5

WASHER,WROUGHT(10)

7558302

$1.59

6

DECAL,OIL,VES

7077444

Unavailable

7

Nut

7670096

$1.59

8

SENSOR,OIL LEVEL

4110134

$72.84

9

CAP,OIL,VENTED Substituted by 1240094

2511287

Unavailable

10

CAP, PRESSURE,(13 LB)

2511270

$24.27

11

DECAL-SURGE TANK,"FULL COLD"

7078369

Unavailable

12

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C6, Ref. 21)

-------

Unavailable

12

Valve, Fuel Shut-Off (See Footnote) (See Engine Mounting Pg. C6, Ref. 21)

-------

Unavailable

13

Pump, Fuel (See Footnote) (See Engine Mounting Pg. C6, Ref. 18)

-------

Unavailable

14

RETAINER,SS.

7080654

$18.32

15

SCREW,(10)

7517455

$8.99

16

GROMMET-TANK FITTING(10)

7052028

$6.39

17

FTTNG,90 D.PRESS-ON

7052208

$6.39

18

SCREW(10)

7517615

$3.19

18

SCREW(10)

7517615

$3.19

18

SCREW(10)

7517615

$3.19

19

CLAMP-CABLE

7080367

$2.39

20

RIVET,INTERLOCK,B(50)

7661638

$1.49

21

BRKT,FUEL PUMP MOUNT-Z

5242680

$9.91

22

CLAMP,HOSE(10)

7080683

$2.39

23

NUT-LOCK(10)

7542122

$1.49

24

BRKT,CDI MOUNT,110MM-Z

1012947

$23.99

25

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

26

NUT(10)

7541925

$1.49

27

CLIP, PLASTIC(10)

4020139

$4.79

28

BRKT,OIL/COOLANT TANK,ALUM

5243636

Unavailable

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

29

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

30

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

30

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

31

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65
