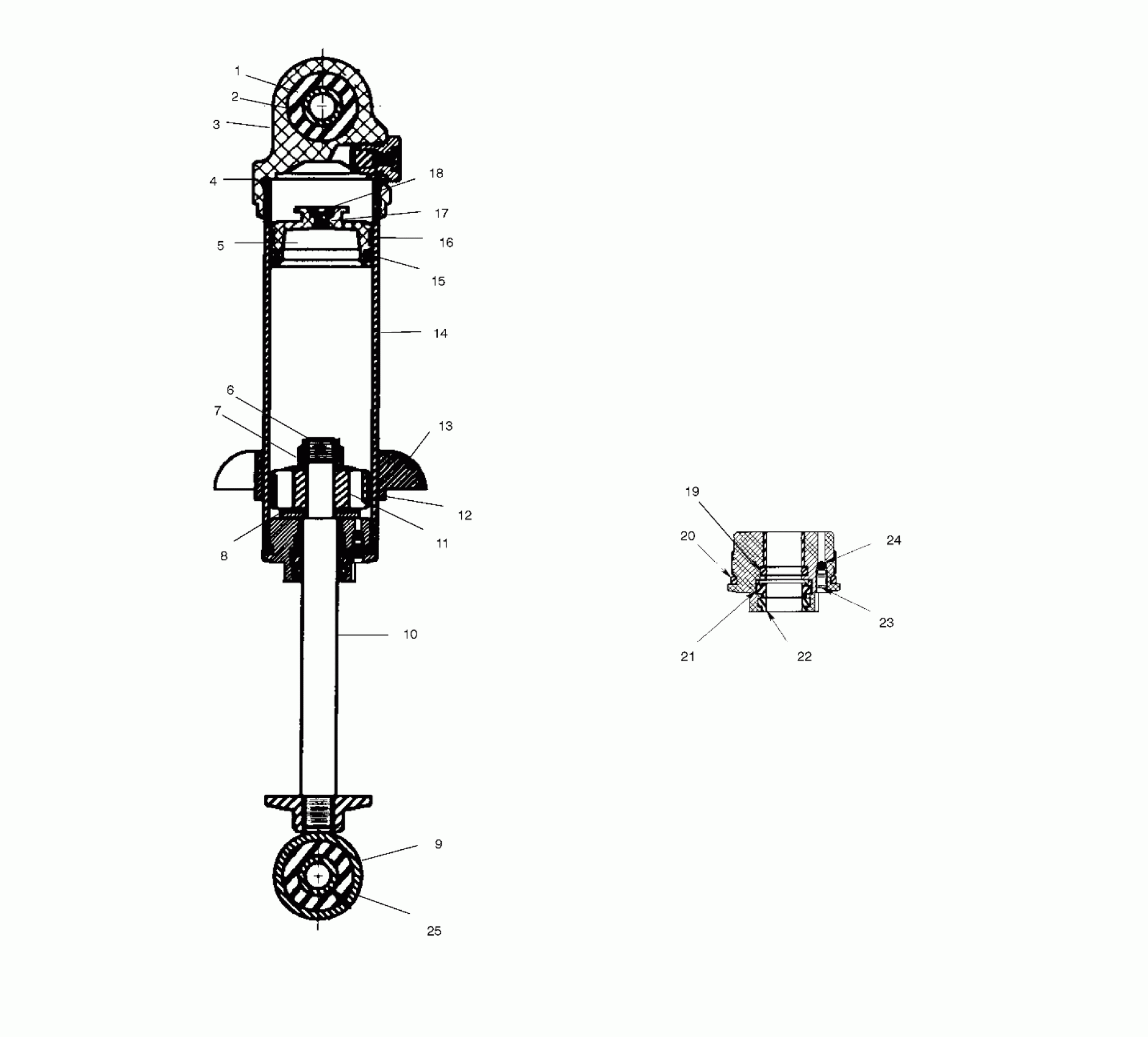

Polaris 500 XC SP - S00SP5CS FOX SHOCK - FRONT TRACK - S00SP5CS (4954035403b014) Diagram

#

Description
Price

-

SHOCK-FRT TRACK,X-10,FOX

7041810

Unavailable

1

BUSHING-EYELET.35X.575X.595FOX

1500182

Unavailable

2

BUSHING, (1.24)

5020640

Unavailable

3

BODY-CAP,LOW PROFILE,FOX

1500183

Unavailable

4

O-RING,.103W-1.549ID

1500108

$10.99

5

PISTON

1500011

$59.99

6

NUT,LOCK

1500016

$12.79

7

BUSHING,BACKUP

1500015

$6.76

8

PLATE,TOP OUT

1500017

$20.22

9

EYELET,BASE

1500164

$93.08

10

SHAFT

1500153

$51.99

11

KIT,VALV.PISTON,(FOX SHOCK)

2200618

Unavailable

12

DAMPER,PISTONRING,FOX

1500002

$31.99

13

RING-SPRING,PRELOAD

1500194

Unavailable

14

BODY,5.3TLGX4.5TH204-04-030

1500299

$45.30

15

O-RING,ENDCAP,FOX,(10)

1500003

$8.89

16

RING,PISTON,FLOATING,FOX

1500006

$19.99

17

O-RING,DRUM OUTER

1500022

Unavailable

18

Screw

1500018

$5.56

19

O-RING INNER (10)

1500021

$10.99

20

O-RING,(10).103W-1.299ID

1500020

$10.63

21

WIPER INNER Substituted by 1500266

1500025

$24.27

22

WIPER,CLR,OUTER (Outer)

1500024

Unavailable

23

Screw

1500070

$6.39

24

BALL, (FOX)

1500071

$6.76

25

BUSHING-EYELET.35X.575X.595FOX

1500184

Unavailable
