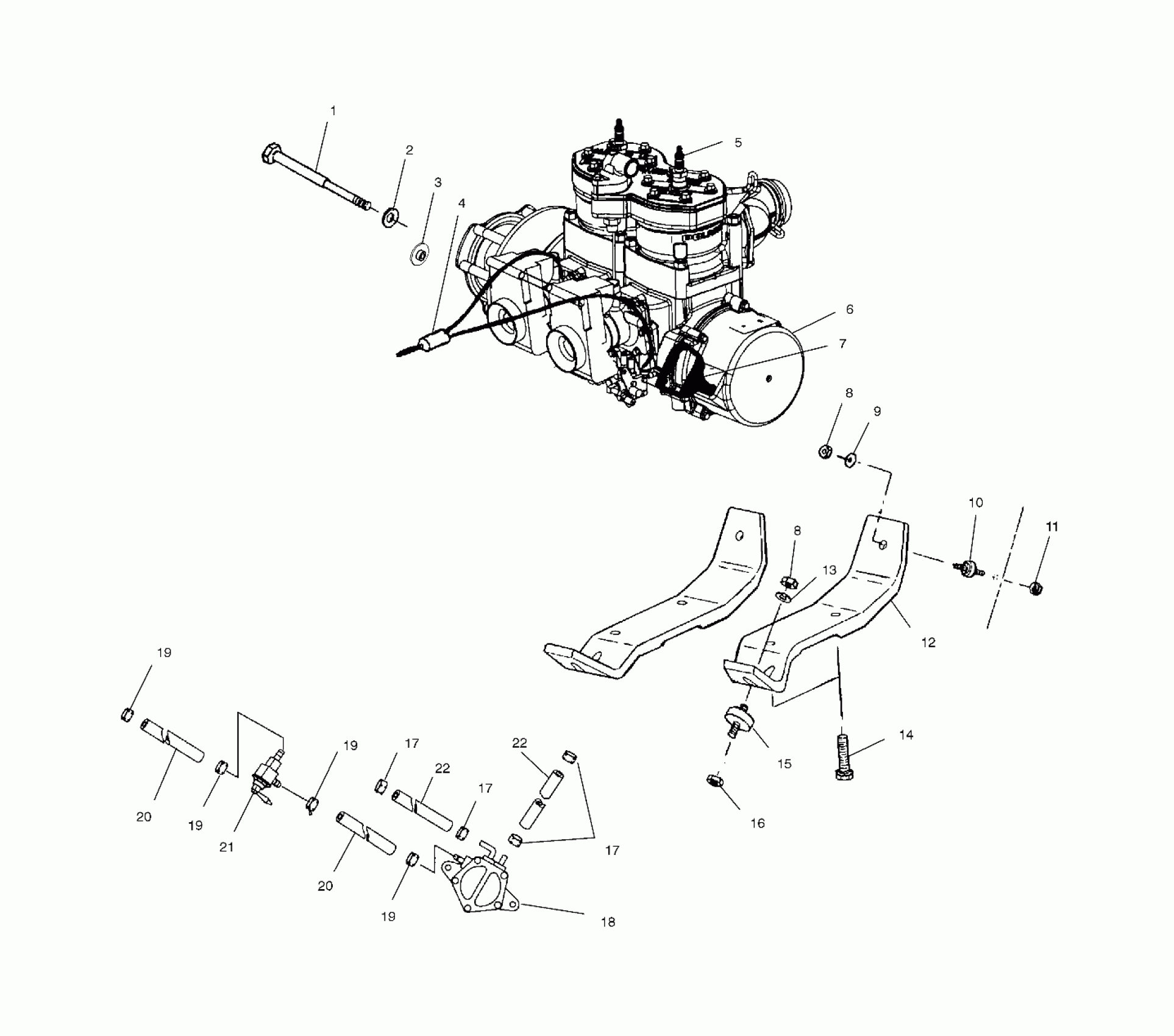

Polaris 500 XC SP - S00SP5CS ENGINE MOUNTING - S00SP5CS (4954035403c006) Diagram

#

Description
Price

1

SCREW,M14X1.5X215

7517501

Unavailable

2

WASHER(10)

7556003

$6.39

3

WASHER,CLUTCH RET.

5131872

Unavailable

4

CABLE,THROTTLE,W/OIL,38MM.RACK

7080733

Unavailable

5

SPARKPLUG-RN57YC(3) Substituted by 3070190

30-701-84

Unavailable

6

KIT-SHORT BLOCK S50-44-00 EV [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior author

2201530

Unavailable

7

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

8

NUT,FLEXLOCK,(10)

7547008

$6.39

8

NUT,FLEXLOCK,(10)

7547008

$6.39

9

WASHER(10)

7555806

$1.49

10

MOUNT-ENGINE,3/8-16,3-TAB

3021099

$28.32

11

NUT,(10)

7547022

Unavailable

12

STRAP,LH,ENG.MOUNT

5131876

$66.99

12

STRAP,RH,ENG.MOUNT

5131877

$66.99

13

WASHER(10)

7555893

$1.49

14

Screw

7517399

$8.99

15

MOUNT,ENG.

3110061

$84.99

16

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

17

HOSE CLAMP, RED

7080003

$1.49

18

PUMP,FUEL,1 OUTLET

2520135

Unavailable

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

20

TUBING-ETHER ERETHNE,160CM,SVC [Item NotAvailable]

8350018

Unavailable

21

VALVE,FUEL SHUTOFF

7052211

Unavailable

22

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

22

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable
