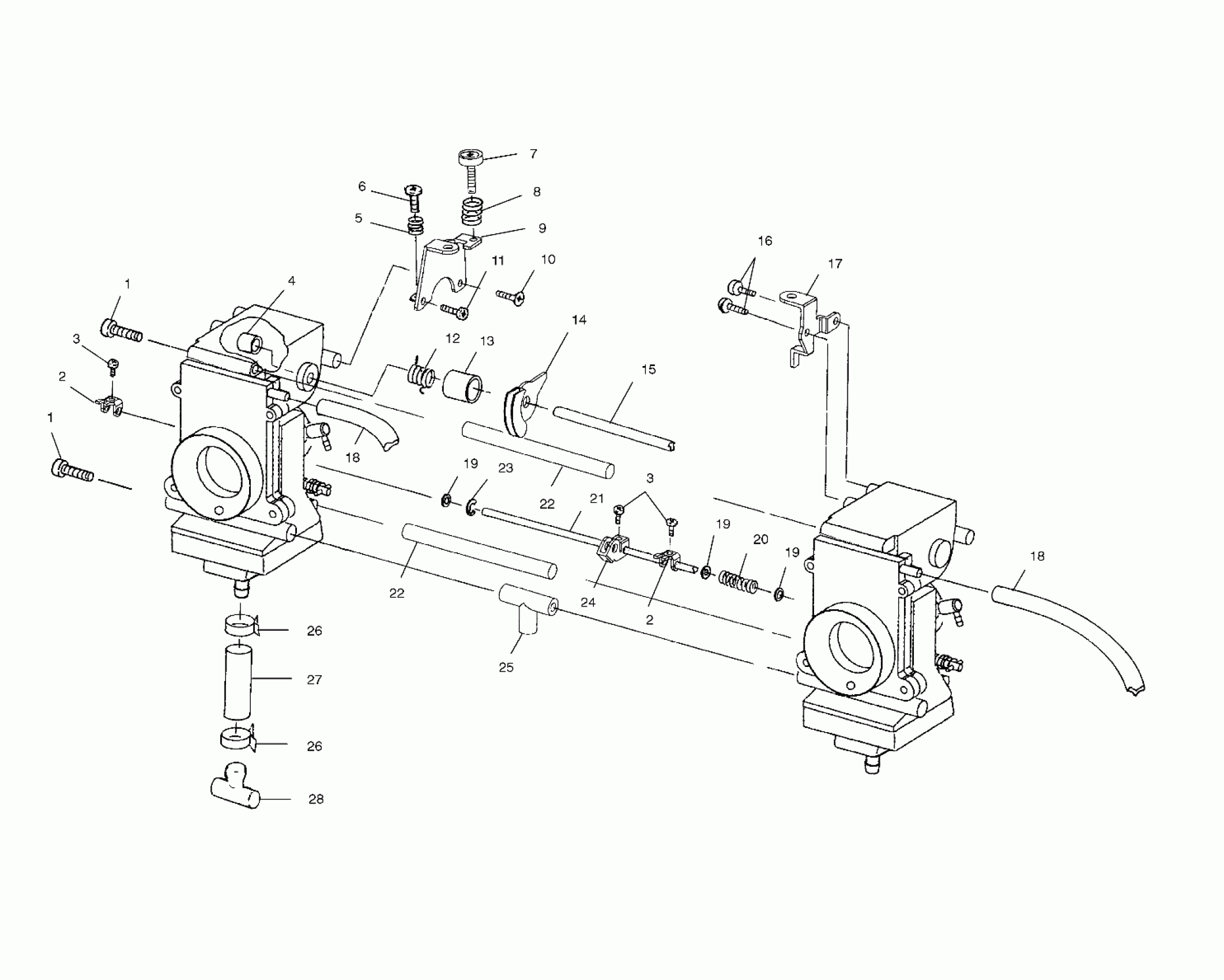

Polaris 500 XC SP - S00SP5CS CARBURETOR - S00SP5CS (4954035403c013) Diagram

#

Description
Price

1

BOLT,RACK

3130834

$27.99

1

BOLT,RACK

3130834

$27.99

2

LEVER,STARTER

3130832

$24.27

2

LEVER,STARTER

3130832

$24.27

3

SCREW,STARTER

3130833

$3.99

3

SCREW,STARTER

3130833

$3.99

4

Ring

3140032

Unavailable

5

Spring

3130817

$6.46

6

Screw

3130816

$6.39

7

Adjuster

3130812

$20.22

8

Spring

3130811

$7.99

9

Bracket

3130815

$29.75

10

Screw

3130810

$3.19

11

Screw

3130809

$3.19

12

Spring

3130814

Unavailable

13

Ring

3130853

$7.27

14

LEVER ASM.

3130813

$33.91

15

Shaft

3130827

$51.99

16

Screw

3130821

$7.19

17

Bracket

3130820

$40.46

18

Hose

3130826

$9.70

18

Hose

3130826

$9.70

19

PACKING,STARTER SHAFT

3130842

$2.83

19

PACKING,STARTER SHAFT

3130842

$2.83

19

PACKING,STARTER SHAFT

3130842

$2.83

20

SPRING,STARTER SHAFT

3130841

$7.27

21

Shaft

3130840

$28.32

22

RING,RACK

3130852

$20.22

22

RING,RACK

3130852

$20.22

23

E-Ring

3130839

$4.84

24

LEVER,STARTER

3130819

$32.37

25

NIPPLE ASM,FUELINLET

3130823

Unavailable

26

HOSE CLAMP, RED

7080003

$1.49

26

HOSE CLAMP, RED

7080003

$1.49

27

FUEL,LINE,ETHER,RED,5/16" Substituted by 8350017-160

8350017-600

Unavailable

28

PLUG,TRAP

5431893

$12.94
