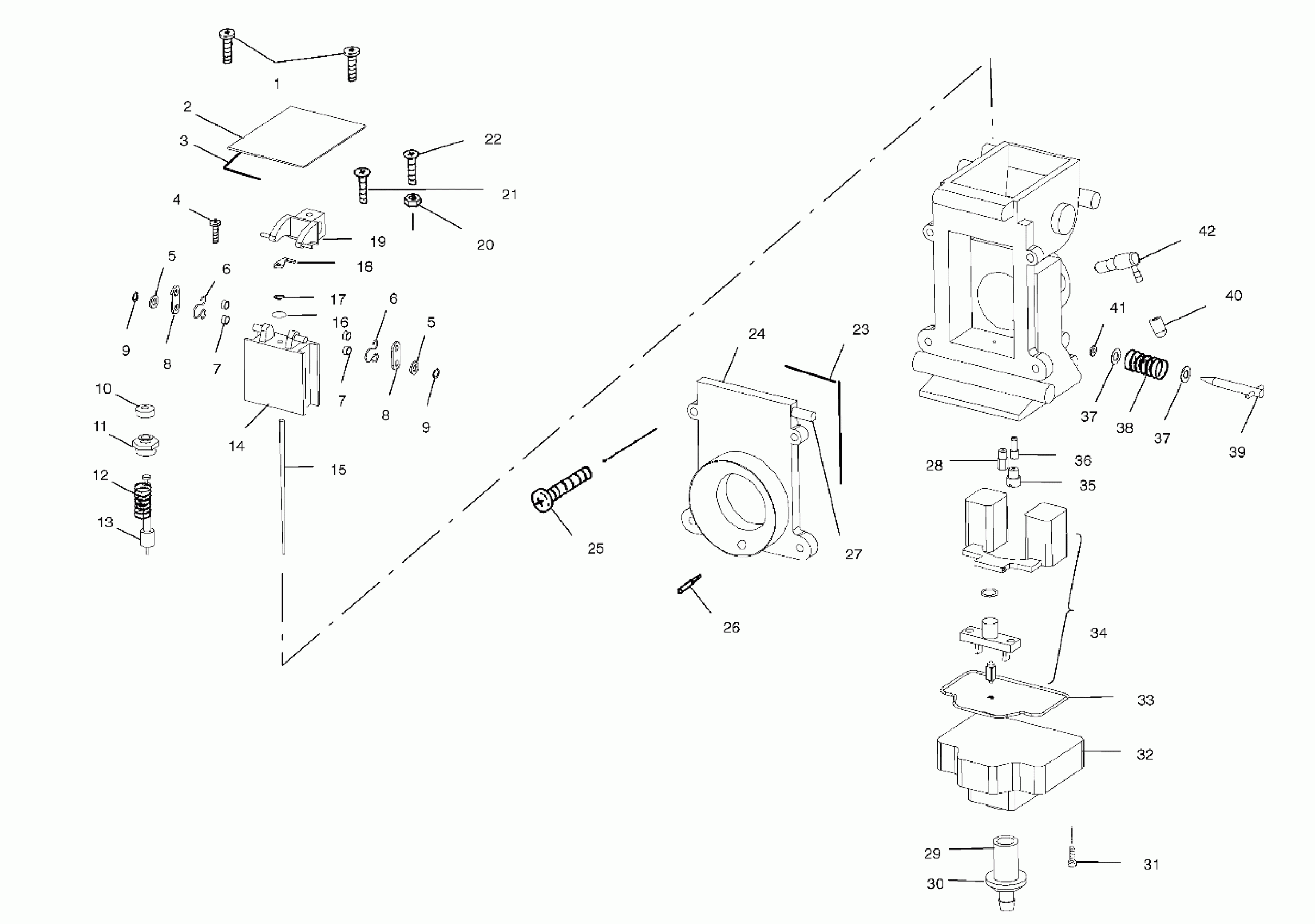

Polaris 500 XC SP - S00SP5CS CARBURETOR - S00SP5CS (4954035403c012) Diagram

#

Description
Price

-

CARB,ASM 38MM

3130966

$639.99

1

SCREW

3130851

$2.39

2

CAP,TOP

3130872

Unavailable

3

Gasket

3130871

$20.22

4

Screw

3130844

$3.99

5

WASHER,PACKING

3130846

$4.79

5

WASHER,PACKING

3130846

$4.79

6

Clip

3130856

$8.79

6

Clip

3130856

$8.79

7

Ring

3130845

$8.89

7

Ring

3130845

$8.89

8

Plate

3130857

$7.27

8

Plate

3130857

$7.27

9

E-Ring

3130847

$8.89

9

E-Ring

3130847

$8.89

10

CAP,STARTER,(RUBBER)

3130831

$7.27

11

HOLDER,STARTER GUIDE

3130830

$32.37

12

SPRING,STARTER

3130829

$12.94

13

PLUNGER ASM./258

3130828

$32.37

14

VALVE,PISTON 1.5 (1.5)

3130940

$104.99

15

JET,NEEDLE (9EFH01-60)

3131207

Unavailable

16

Packing

3130867

$5.65

17

E-Ring

3130868

$8.89

18

Plate

3130843

$8.89

19

LEVER ASM.

3130855

$64.75

19

LEVER ASM.

3130849

$64.75

20

Ring

3130848

$32.37

21

Screw

3130854

$3.19

22

Screw

3130850

$4.79

23

O-RING,AIR FUNNEL

3130870

$24.27

24

FUNNEL ASM.

3130869

$102.99

25

SCREW,AIR FUNNEL

3130825

$3.19

26

JET,PILOT-AIR,0.9 (PAJ)(0.9)

3130777

Unavailable

27

Pin

3130808

Unavailable

28

JET,MAIN,HX.HD#420(10) (420)

3130142

$7.27

29

NIPPLE,DRAIN SCREW

3130862

Unavailable

30

O-RING,DRAIN SCREW

3130863

$2.41

31

SCREW,FLOAT BOWL

3130824

$3.19

32

FLOAT,BODY

3130858

$119.99

33

O-RING,FLOAT BOWL

3130861

$12.13

34

FLOAT ASM.

3130859

$94.99

35

JET,PILOT,#40(10) (40)

3130067

$10.99

36

JET,STARTER,#VM11/22-145 (145)

3130769

$8.89

37

Washer

3130837

$3.19

37

Washer

3130837

$3.19

38

SPRING

3130836

$7.27

39

ADJUSTER ASM.

3130838

Unavailable

40

CAP

3130479

$14.56

41

Packing

3130835

$2.41

42

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37
