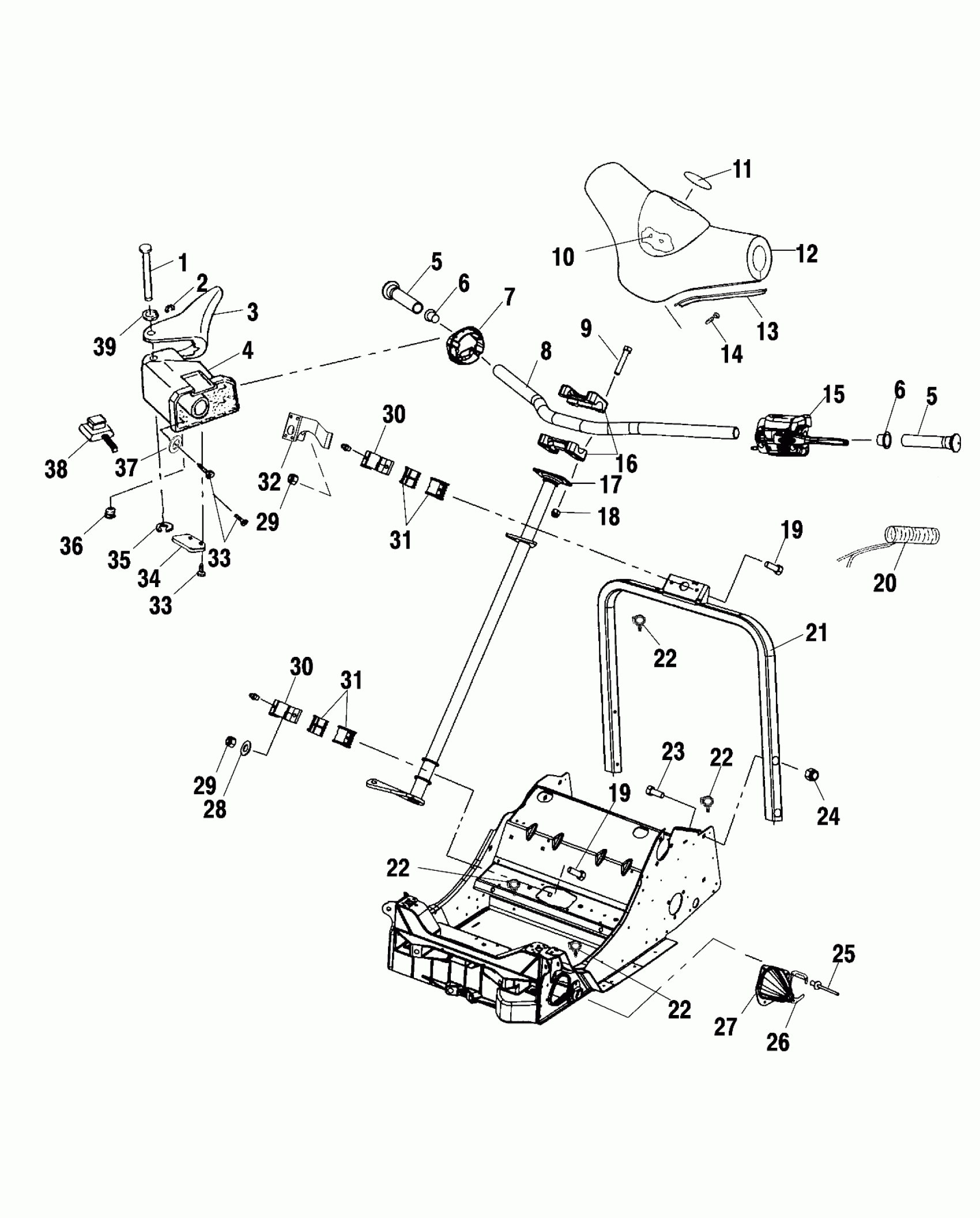

Polaris 500 XC SP F/O - S02NP5CS STEERING/HANDLEBAR - S02NP5CS/S02NE5CS (4973407340B03) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

3

LEVER, THROTTLE

5432970

$29.03

3

Lever w/Heater

2010171

$84.98

4

BLOCK, THROTTLE/BRAKE

5431592

$49.99

5

Grip, Handlebar

5432634

$24.27

5

Grip, Handlebar

5432634

$24.27

6

PLUG, OVERFLOW

5431096

$2.02

6

PLUG, OVERFLOW

5431096

$2.02

7

Adaptor, Block

5433345

$15.99

8

Handlebar

5243355-067

$94.99

9

SCREW

7517238

$4.79

10

Nut, Push-On

7670106

$2.39

11

Emblem, Star

5434179

Unavailable

12

Cover, Handlebar

5433159-070

$77.99

13

Slide, Handlebar Cover

5433160-070

$28.32

14

Clip, Dart

4010287

$3.99

15

ASM., CONTROL, LH [SEE BRAKE PG. B6, REF. 13]

-------

Unavailable

16

Block, Handlebar

5630187-067

$44.99

17

Post, Steering

1820965-067

Unavailable

18

Nut, Nylok

7542122

$1.49

19

BOLT, CARRIAGE

7517579

$6.39

19

BOLT, CARRIAGE

7517579

$6.39

20

Heater, Grip, Lo/Med/Hi

2460677

$60.70

21

Hoop, Steering [Edge]

1013602-067

$70.39

21

Hoop, Steering [M-10]

1013262-067

$62.39

22

CLIP, ROSEBUD

4020139

$4.79

22

CLIP, ROSEBUD

4020139

$4.79

22

CLIP, ROSEBUD

4020139

$4.79

22

CLIP, ROSEBUD

4020139

$4.79

23

Bolt, Carriage

7512377

$4.79

24

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

25

Rivet

7621433

$1.49

26

Plate, Tie Rod Boot

5244470

Unavailable

27

Boot, Tie Rod, LH

5433532

Unavailable

27

Boot, Tie Rod, RH

5433533

Unavailable

28

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

29

NUT-5/16-18 NYLOK-Y

7542324

$1.49

30

Fitting, Lubrication

7080510

$5.59

30

Bracket, Steering Post

5131841

Unavailable

30

Fitting, Lubrication

7080510

$5.59

30

Bracket, Steering Post

5131841

Unavailable

31

Bushing

5432785

$6.39

31

Bushing

5432785

$6.39

32

Bracket, Console Support

5244829

Unavailable

33

Screw

7511848

$3.99

33

Screw

7511848

$3.99

34

HOLDER, WIRE

5432261

$24.27

35

RING-RETAINING EXTERNAL

7710401

$3.99

36

SCREW, SET

7512465

$3.99

37

WASHER

7555727

$1.49

38

Switch, Auxiliary Shut-Off

4110106

$94.99

39

WASHER

7555730

$3.99
