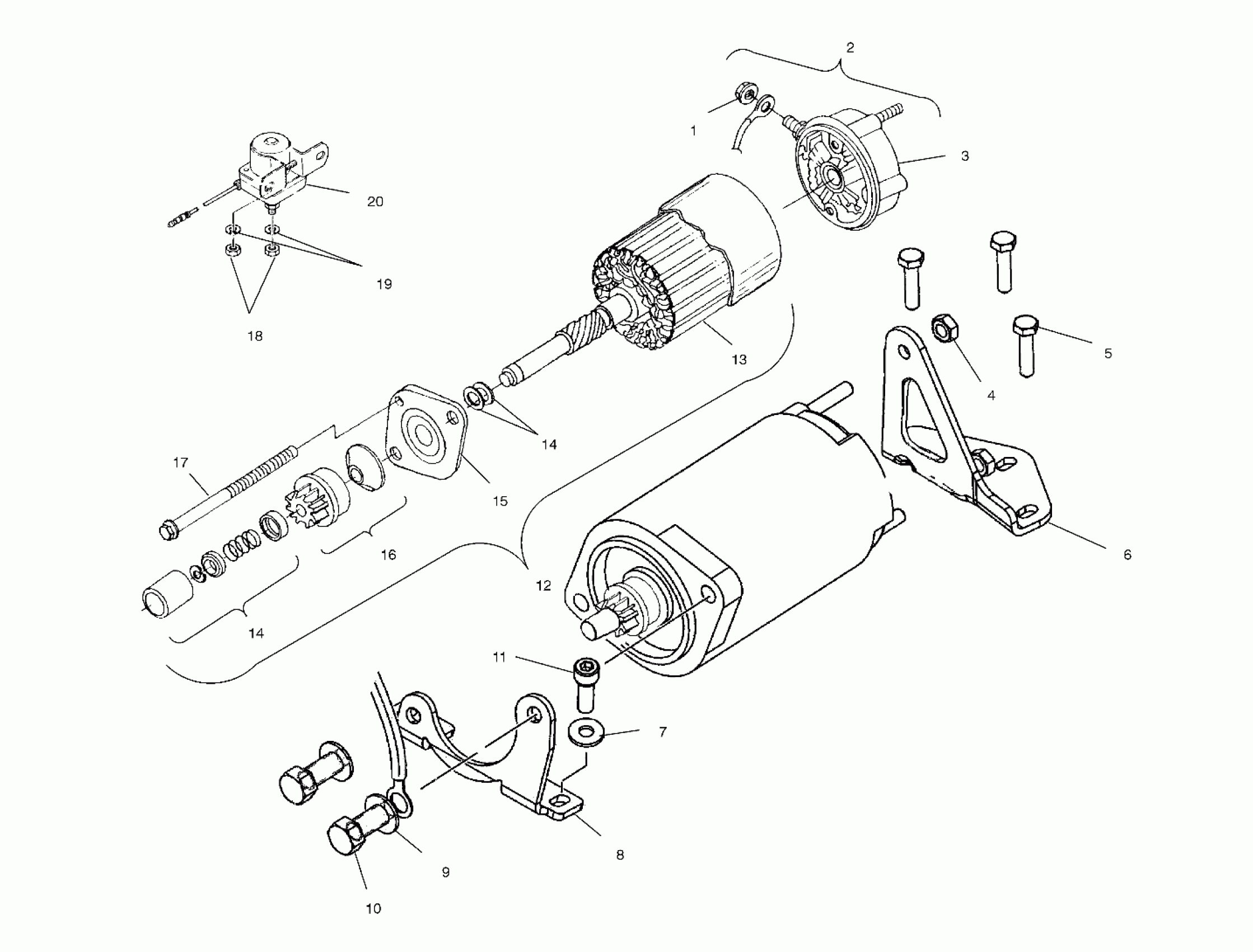

Polaris 500 XC SP F/O - S02NP5CS STARTING MOTOR - S02NP5CS/S02NE5CS (4973407340D12) Diagram

#

Description
Price

1

Nut

7542103

$5.59

2

Kit, Commutator Cap [Incl. 3]

2200758

$82.39

3

Kit, Brush & Spring

2200759

$59.99

3

ASM., BRUSH & SCREW

-------

Unavailable

3

ASM., BRUSH

-------

Unavailable

3

BUSHING, INSULATION

-------

Unavailable

3

WASHER, INSULATION

-------

Unavailable

3

Nut

-------

Unavailable

4

Nut

7542153

$1.59

5

Screw

7516823

$3.19

6

Bracket, Starter, Rear

5244250

$389.99

7

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

8

Bracket, Starter, Front

5245467

Unavailable

9

Washer, Spring Lock

7552603

$1.49

10

Screw

7512492

$1.49

11

Screw

7517322

$2.39

12

Motor, Starter, Domestic

4170006

Unavailable

13

Kit, Armature

2200756

$169.99

14

Kit, Drive Hardware

2200755

Unavailable

14

WASHER, CURVED SPRING

-------

Unavailable

14

Washer, Thrust

-------

Unavailable

14

SPACER

-------

Unavailable

14

SPRING, ANTIDRIFT

-------

Unavailable

14

PINION, STOP

-------

Unavailable

14

RING, LOCK

-------

Unavailable

14

COVER, DUST

-------

Unavailable

14

Kit, Drive Hardware

2200755

Unavailable

14

WASHER, CURVED SPRING

-------

Unavailable

14

Washer, Thrust

-------

Unavailable

14

SPACER

-------

Unavailable

14

SPRING, ANTIDRIFT

-------

Unavailable

14

PINION, STOP

-------

Unavailable

14

RING, LOCK

-------

Unavailable

14

COVER, DUST

-------

Unavailable

15

Kit, Drive Cap

2200757

$59.99

16

Kit, Drive

2200754

Unavailable

16

PLATE, DRIVE

-------

Unavailable

16

PINION

-------

Unavailable

17

Kit, Screw

2200753

$29.99

17

BOLT, THRU

-------

Unavailable

18

Nut

3082939

Unavailable

19

Washer, Spring

3080077

$2.39

20

Switch, Magnetic [Incl. 18,19]

3083211

Unavailable
