Description

Price

1

Arm, Torque, Rear, Red

1541561-293

$181.59

1

Arm, Torque, Rear, Yellow

1541561-216

$172.22

2

Nut, Flange

7542411

$3.19

3

SCREW

7512410

Unavailable

4

Shaft, Arm

5333758

Unavailable

5

Washer

7555945

$7.99

6

BUSHING

3514331

$19.99

7

Screw

7515415

$1.49

8

Washer, Flat

7555806

$1.49

8

Washer, Flat

7555806

$1.49

8

Washer, Flat

7555806

$1.49

9

Washer, Flat

7555893

$1.49

10

Washer, Spring Lock

7552603

$1.49

11

Screw

7517435

$14.99

12

Asm., Rear Torque Arm [Incl. 6]

1541461

$119.99

13

Nut, Nylok

7542439

$1.49

13

Nut, Nylok

7542439

$1.49

13

Nut, Nylok

7542439

$1.49

14

Spacer, Wheel

5132388

Unavailable

15

Asm., Wheel

1590278

$48.56

16

WASHER, THRUST

7555787

Unavailable

17

Sleeve, Torsion Spring

5431923

$6.39

18

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

19

CLIP-PUSH ON

7080394

$2.39

20

Spring, Torsion, Soft, LH [Opt][.359/77]

7041629-067

Unavailable

20

Spring, Torsion, Soft, RH [Opt][.359/77]

7041630-067

Unavailable

20

Spring, Torsion, LH [Std][.375/77]

7041942-067

Unavailable

20

Spring, Torsion, RH [Std][.375/77]

7041943-067

Unavailable

20

SPRING-TORS,.405SQ/77, LH, BLK [Opt][.405/77]

7041940-067

$113.32

20

SPRING-TORS,.405SQ/77, RH, BLK [Opt][.405/77]

7041941-067

$113.32

21

Screw

7517232

$19.99

22

Shaft

5333873

$11.11

23

Bolt

7515514

$7.19

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

26

Rod, Shock

1541479-067

$44.51

27

Bolt

7517851

$6.39

28

Bushing, Nut

5132390

$23.99

29

Sleeve

5333907

$15.99

30

FITTING-LUBRICATION 1/4-28

7080424

$4.79

31

Spacer

5333904

Unavailable

32

Shock, Fox, PPS

7041846

Unavailable

32

Shock, Fox, Remote Reservoir

7042093

Unavailable

33

BUSHING

5010422

$11.99

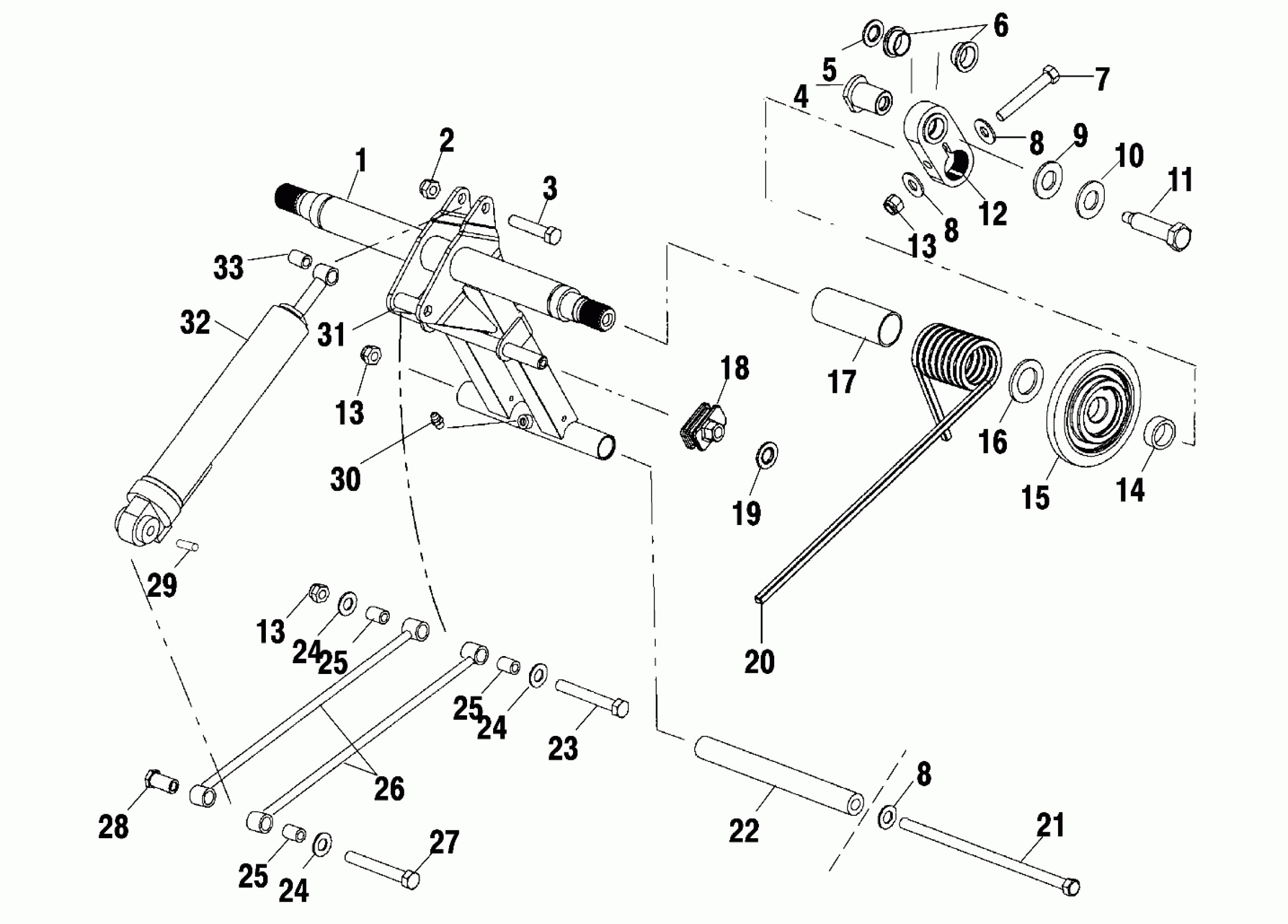

Polaris 500 XC SP F/O - S02NP5CS REAR TORQUE ARM (EDGE) - S02NP5CS (4973407340B11) Diagram

Arm, Torque, Rear, Red

Arm, Torque, Rear, Yellow

Nut, Flange

SCREW

Shaft, Arm

Washer

BUSHING

Screw

Washer, Flat

Washer, Flat

Washer, Flat

Washer, Flat

Washer, Spring Lock

Screw

Asm., Rear Torque Arm [Incl. 6]

Nut, Nylok

Nut, Nylok

Nut, Nylok

Spacer, Wheel

Asm., Wheel

WASHER, THRUST

Sleeve, Torsion Spring

ROLLER-SPRING,ADJ,SQUARE,X10

CLIP-PUSH ON

Spring, Torsion, Soft, LH [Opt][.359/77]

Spring, Torsion, Soft, RH [Opt][.359/77]

Spring, Torsion, LH [Std][.375/77]

Spring, Torsion, RH [Std][.375/77]

SPRING-TORS,.405SQ/77, LH, BLK [Opt][.405/77]

SPRING-TORS,.405SQ/77, RH, BLK [Opt][.405/77]

Screw

Shaft

Bolt

WASHER-.390X.750X.020-WAVE-Y

WASHER-.390X.750X.020-WAVE-Y

WASHER-.390X.750X.020-WAVE-Y

Bushing

Bushing

Bushing

Rod, Shock

Bolt

Bushing, Nut

Sleeve

FITTING-LUBRICATION 1/4-28

Spacer

Shock, Fox, PPS

Shock, Fox, Remote Reservoir

BUSHING
