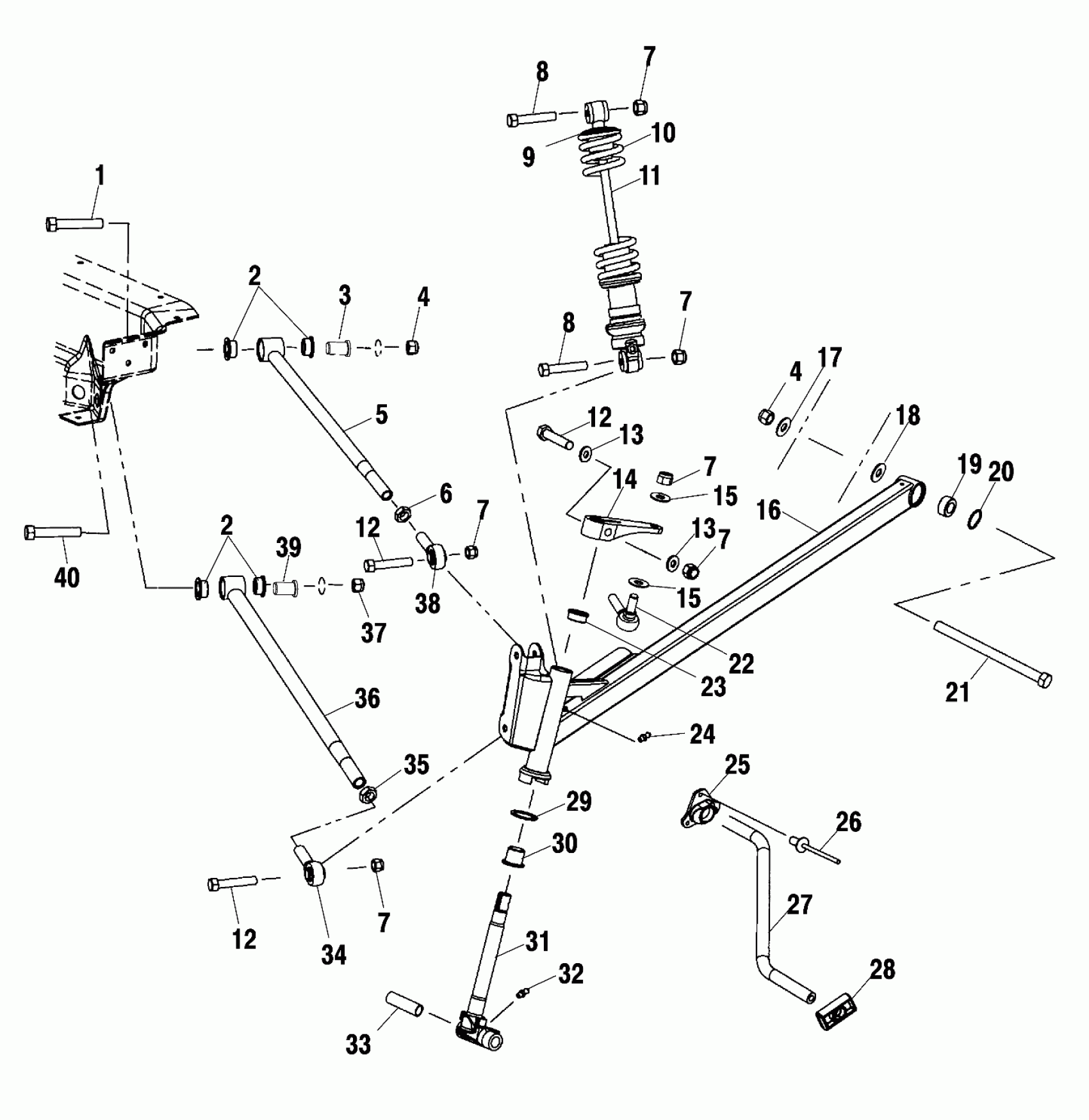

Polaris 500 XC SP F/O - S02NP5CS FRONT SUSPENSION - S02NP5CS/S02NE5CS (4973407340A13) Diagram

#

Description
Price

1

Bolt

7512597

$4.99

2

Bushing, Radius Rod, Pivot, Inner

5434036

$14.99

2

Bushing, Radius Rod, Pivot, Inner

5434036

$14.99

3

Bushing, Shoulder

5132779

$11.99

4

Nut, Nylok

7547066

$1.59

4

Nut, Nylok

7547066

$1.59

5

Rod, Radius, Upper, Red

1820679-293

$104.99

5

Rod, Radius, Upper, Yellow

1820679-216

$104.99

6

Nut, Jam

7542520

$2.39

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

7

Nut, Nylok

7542439

$1.49

8

Screw

7515433

$1.59

8

Screw

7515433

$1.59

9

Retainer, Spring, Slotted

5630580

Unavailable

10

Spring, Compression

7041950-067

Unavailable

11

Shock, IFS, IFP

7041976

Unavailable

12

SCREW

7517583

$4.35

12

SCREW

7517583

$4.35

12

SCREW

7517583

$4.35

13

WSHR-.813X.406X.105-Y

7555832

$2.39

13

WSHR-.813X.406X.105-Y

7555832

$2.39

14

Arm, Steering

5132728

$79.99

15

Washer, Flat

7555797

$3.99

15

Washer, Flat

7555797

$3.99

16

Asm., Trailing Arm, Red, LH [Incl. 19,20]

1821165-293

Unavailable

16

Asm., Trailing Arm, Red, RH [Incl. 19,20]

1821166-293

Unavailable

16

Asm., Trailing Arm, Yellow, LH [Incl. 19,20]

1821165-216

$344.99

16

Asm., Trailing Arm, Yellow, RH [Incl. 19,20]

1821166-216

Unavailable

17

WASHER, FLAT

7555820

$3.99

18

Cup, Mount, Trailing Arm

5132364

$20.22

19

Bearing, Spherical

7061042

$31.99

20

Ring, Retaining

7710437

$3.19

21

Screw

7512099

$19.99

22

Rod End, RH

7061057

$48.56

23

Bushing

3573909

$2.39

24

Fitting, Lubrication

7080433

$1.49

25

Bushing, Torsion Bar

5433234

$23.99

26

Rivet

7621477

$1.19

27

Bar, Torsion

5244415-067

Unavailable

28

Slide, Torsion Bar

5433884

Unavailable

29

Bushing

7556509

$1.59

30

BUSHING, FLANGED

3574208

$3.19

31

Shaft, Spindle

6230225-067

$219.99

32

Fitting, Lubrication

7080306

$3.19

33

Bushing

5010158

$19.99

34

Rod End

7061060

$48.56

35

Nut, Jam

7542711

$2.39

36

Rod, Radius, Lower, Red

1820677-293

$104.99

36

Rod, Radius, Lower, Yellow

1820677-216

$104.99

37

Nut, Nylok

7547065

$3.99

38

Rod End

7061061

$48.56

39

Bushing, Shoulder

5132780

$7.99

40

Bolt

7512684

Unavailable
