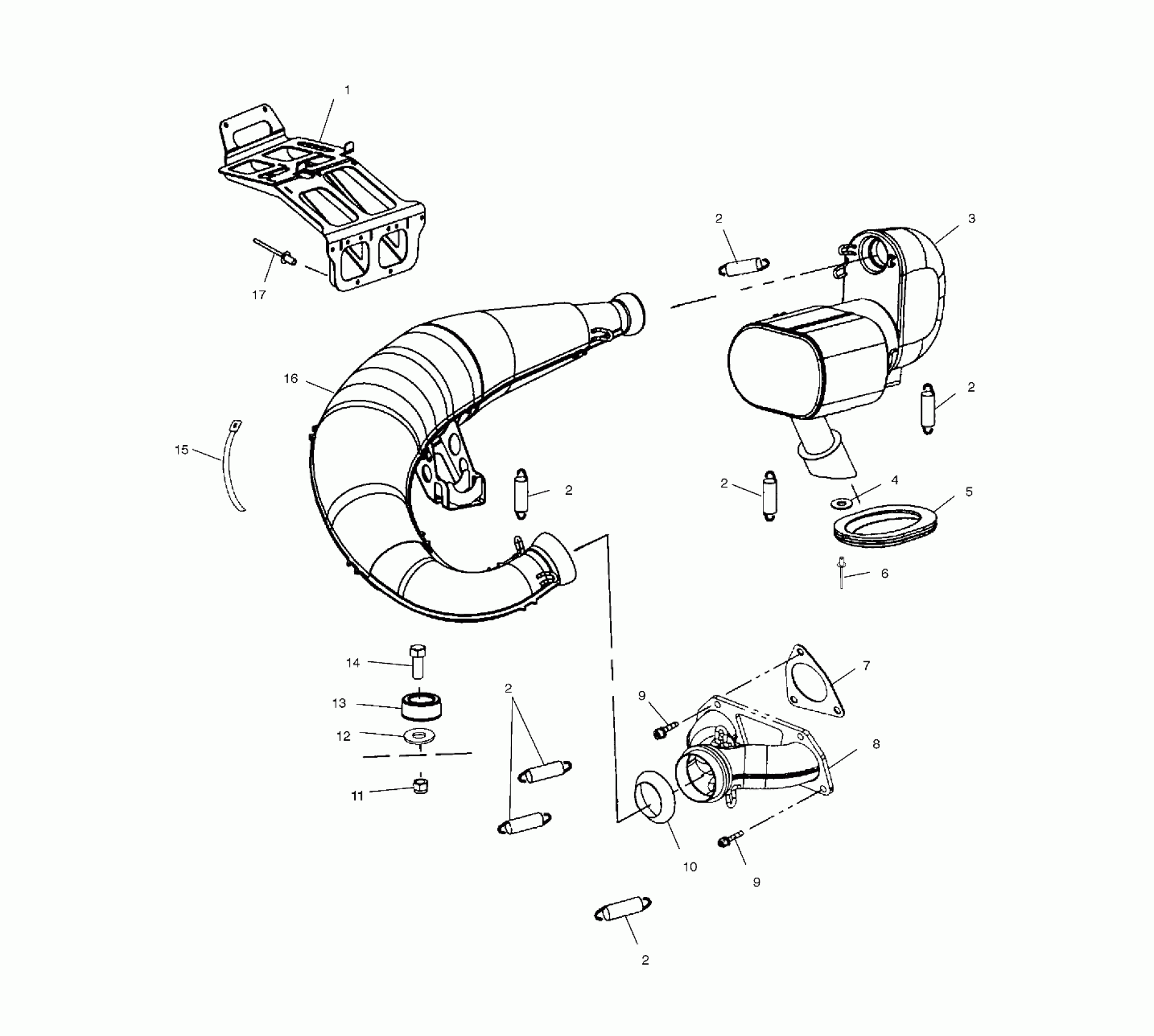

Polaris 500 XC SP F/O - S02NP5CS EXHAUST - S02NP5CS/S02NE5CS (4973407340D02) Diagram

#

Description
Price

1

Bracket, Chassis/Resonator

1261008-029

Unavailable

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

2

SPRING-EXHAUST

7041687

$5.65

3

Resonator

1261130-029

$649.99

4

Washer

7555904

$1.49

5

Boot, Exhaust Outlet

5411684

Unavailable

6

RIVET

7621467

$1.49

7

Gasket, Exhaust

5811838

$8.89

8

Manifold

1261046-029

Unavailable

9

Screw

7517322

$2.39

9

Screw

7517322

$2.39

10

Seal, Exhaust

3610046

$36.41

11

Nut, Flange

7547180

$2.39

12

Washer

7555815

$3.99

13

Dampener, Vibration

5433576

$11.99

14

SCREW

7517935

$2.39

15

Clamp [.44 x 3.13]

7080739

$10.63

15

Clamp [.44 x 3.69]

7080740

$13.19

15

Clamp [.44 x 4.25]

7080741

$19.99

15

Clamp [.44 x 6.38]

7080742

$15.03

16

Asm., Tuned Pipe [Incl. Covers]

1261064

Unavailable

16

Pipe, Tuned

1261050-029

Unavailable

16

Cover, Tuned Pipe, Top

5243608

Unavailable

16

Cover, Tuned Pipe, Bottom

5243609

Unavailable

16

Matte, Sound, Top

5830176

Unavailable

16

Matte, Sound, Bottom

5830177

Unavailable

17

RIVET-3/16-.090-.290

7661637

$1.49
