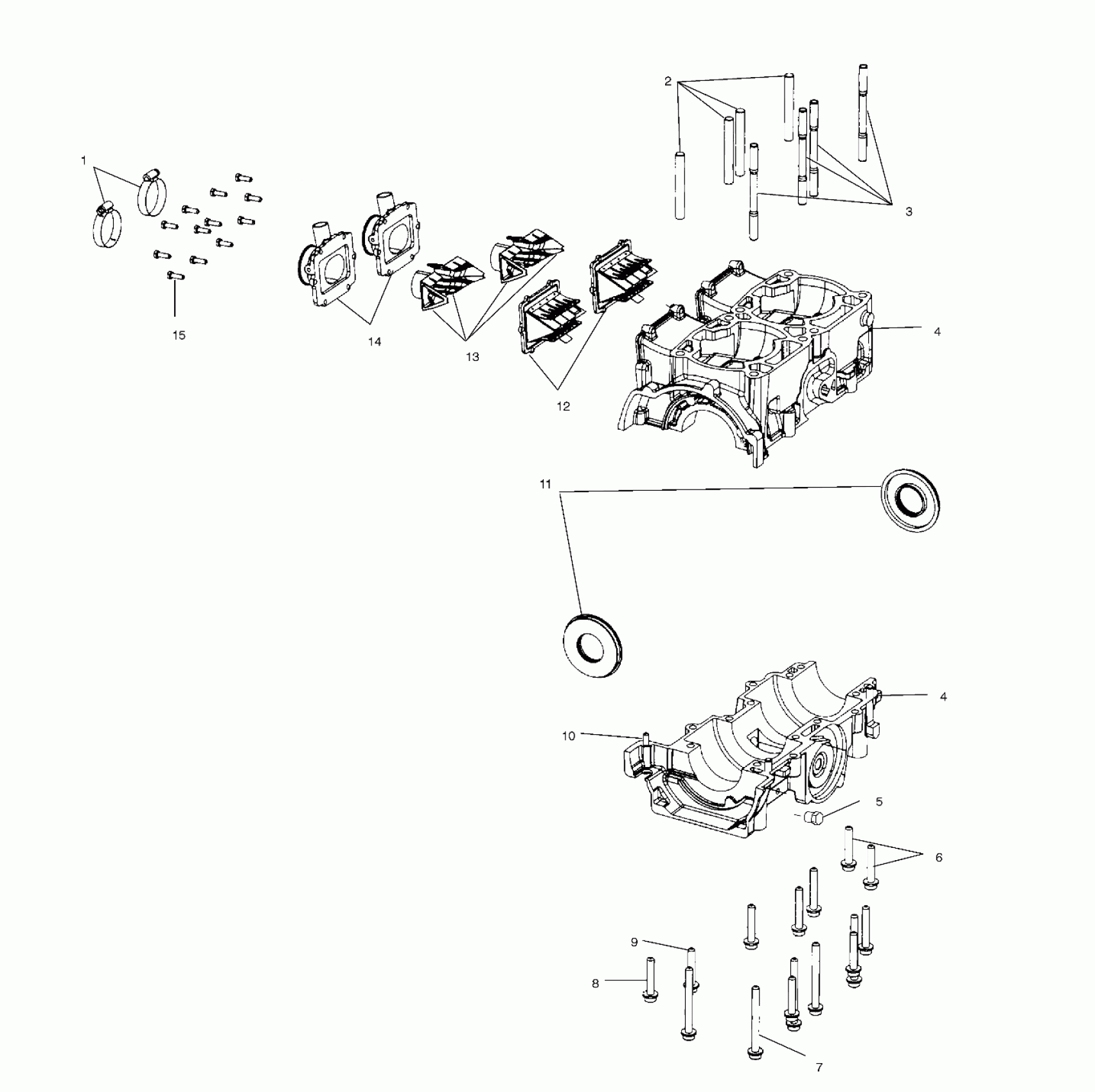

Polaris 500 XC SP F/O - S02NP5CS CRANKCASE - S02NP5CS/S02NE5CS (4973407340D04) Diagram

Description

Price

Clamp, Hose

7080681

$9.59

Stud

5132196

$20.63

Stud

5132197

$21.27

Kit, Crankcase [Incl. 2,3,5-10]

2201931

$444.99

Kit, Crankcase [Incl. 2,3,5-10]

2201931

$444.99

Plug

7051529

$15.99

Screw

7517785

$9.59

Screw

7517784

$8.79

SCREW

7516825

$5.59

Screw

7517786

$6.39

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

Seal

5411394

$29.99

Asm., Reed Valve

1201825

$134.99

Stuffer, Reed

5432852

Unavailable

Adaptor, Carb

1253217

Unavailable

SCREW

7516822

$2.39
